Available Now! 608.3000.235
Available Now! (1 in stock)
Bernstein

608.3000.235

Alt: 6083000235, IN65-SU1Z AHK, Closest Replacement for 608.6185.034, 618.6185.627, 618.6185.008, 618.6185.116, 618.6185.231 and 618.6185.660

$54.51

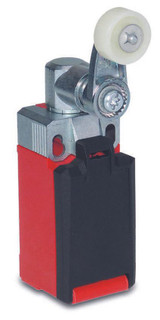

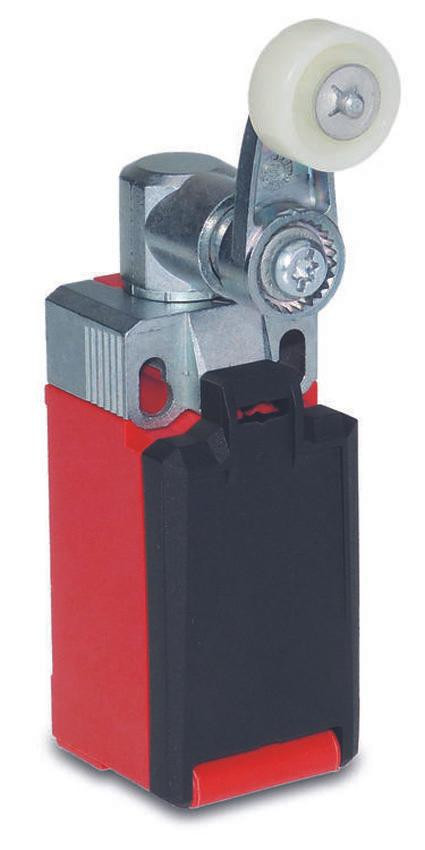

Limit Switch, 1NC/1NO, Snap Action, IP66/67

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.

If you do not see the part number you are looking for, please Contact Us, we can find what you need!

Features Include:

  • Rated Insulation Voltage: 400 V
  • Rated Impulse Withstand Voltage: 4 kV
  • Rated Operational Voltage: 240 V AC / 24 V DC
  • Rated Supply Frequency AC: 50/60 Hz
  • Conv. Thermal Current: 5 A
  • Minimum Current: 1 mA
  • Enclosure: Thermoplastic, glass fiber reinforced (UL 94-V0)
  • Actuator: Metal lever with plastic roller / lever in 15 ° increments adjustable
  • Connection: 4 screw connections (M3)
  • Standard switches conforming to DIN EN 50047
  • Modular design
  • High reliability at low currents (1 mA)
  • Tool-free turning and changing of actuator
  • Metal actuator locking
  • Metal mounting clip
  • Protection class IP66 and IP67
  • Hinged snap-on cover
