608.3000.223
Alt: IN65-SA2Z HK
$48.67

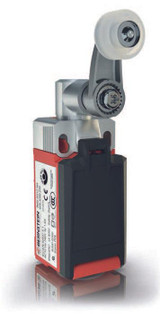

Limit Switch, 2NC, Snap Action, IP66/67
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Rated Insulation Voltage: 400 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Operational Voltage: 240 V AC / 24 V DC
- Rated Supply Frequency AC: 50/60 Hz
- Conv. Thermal Current: 5 A
- Minimum Current: 1 mA
- Enclosure: Thermoplastic, glass fiber reinforced (UL 94-V0)
- Actuator: Lever with roller (Thermoplastic)
- Connection: 4 screw connections (M3)
- Standard switches conforming to DIN EN 50047
- Modular design
- High reliability at low currents (1 mA)
- Tool-free turning and changing of actuator
- Metal actuator locking
- Metal mounting clip
- Protection class IP66 and IP67
- Hinged snap-on cover
Need More Information?
- Bernstein IN65-SA2Z HK Plastic Bodied Limit Switch Datasheet
- Bernstein IN62, IN65 and I81 Series Double Insulated Position Switch Brochure
- Bernstein IN62, IN65 and I81 Series Double Insulated Position Switch Catalog
- Bernstein IN65 Series Double Insulated Position Switch Installation & Operating Instructions
