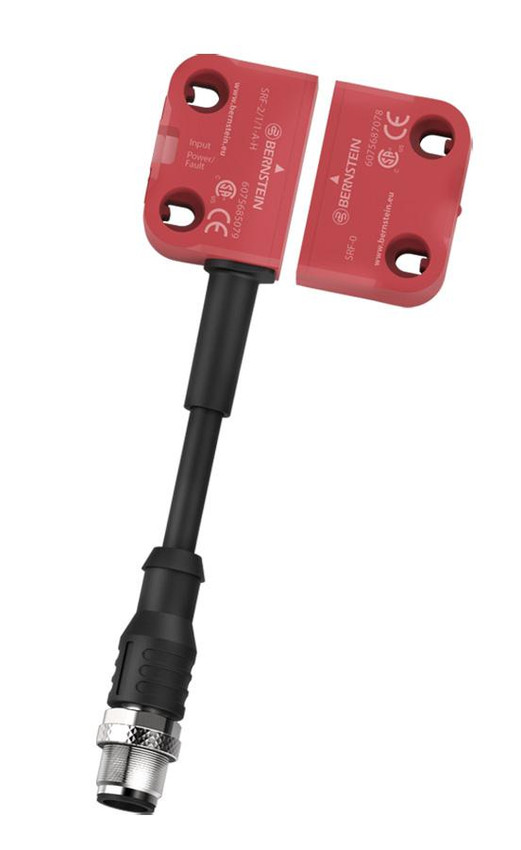

Product image is representative only, please verify specifications.
6075619124
Alt: 607.5619.124, SRF DI-C-16/1-T
$650.45
Safety Cable Pull Switches
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
Electrical data
- Rated operational voltage Ue: 24 V
- Output current of the safety outputs Ie: 100 mA
- Output current of the message output Ie: 10 mA
Mechanical data
- Housing: PA66 + PA6, red, self-extinguishing
- Connection cable: PUR
- Mounting holes: Ø 4,5 (for M4 screws)
- Displays: 1 × LED red/green operating status, 1 × LED yellow actuation status
- Ambient temperature: -25 °C to +70 °C
- Protection class: IP69
Safety data sheet
- PL e / Kat. 4 (according to EN ISO 13849-1)
- SIL CL 3 (according to DIN EN 62061)
- PFHD = 6 × 10-9 1/h
- Mission time: 20 years
- Switching distance:
- Rated operating distance Sn: 13 mm
- Assured switching distance – On Sao: 10 mm
- Assured switching distance – Off Sar: 25 mm
- Hysteresis: 2 mm
- Switch-off delay ta: max. 100 ms
- Ready delay tv: max. 2 s
