601.1431.869
Alt: SID-UV1Z P-RAST
$273.94

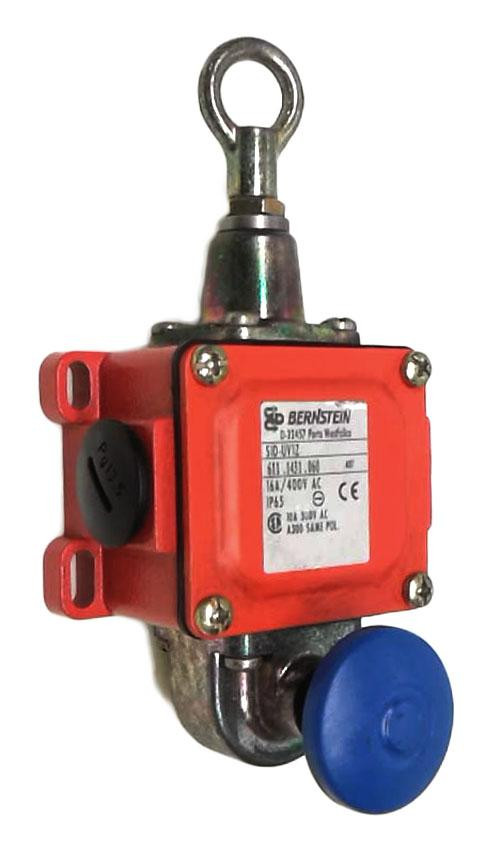

Rope Pull Switch, Pull Ring, 1NC/1NO, 240V, 16A, Metal Body w/Tension Monitor, IP65
- Weight:
- 1.15 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Rated Insulation Voltage: 400 VAC
- Rated Impulse Voltage: 4 kV
- Conv. Thermal Current: 16 A
- Rated Operational Voltage: 240 V
- Short-circuit protective device: Fuse 16 A gG
- Enclosure: Al-die cast
- Actuator: Pull ring (Zn-die cast)
- Contact Type: 1 NC (locked), 1 NO (Zb)
- Connection: 4 screw terminals (M4)
- Protection Type: IP65 acc. to IEC/EN 60529
