601.1431.857
Alt: SID-UV1Z
$192.60

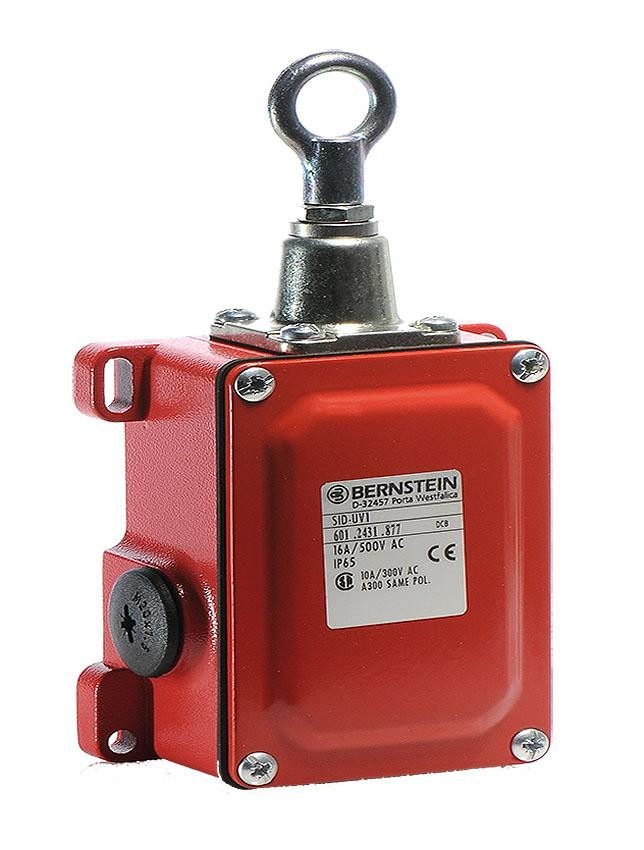

Rope Pull Switch, Pull Ring, 1NC/1NO, 240V, 16A, Metal w/Tension Monitor, M20x1.5 Screw Term., IP65
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.
If you do not see the part number you are looking for, please Contact Us, we can find what you need!
Features Include:
- Rated Insulation Voltage: 400 VAC
- Rated Impulse Voltage: 4 kV
- Conv. Thermal Current: 16 A
- Rated Operational Voltage: 240 V
- Short-circuit protective device: Fuse 16 A gG
- Enclosure: Al-die cast
- Actuator: Pull ring (Zn-die cast)
- Contact Type: 1 NC (locked), 1 NO (Zb)
- Connection: 4 screw terminals (M4)
- Protection Type: IP65 acc. to IEC/EN 60529
