161192476
Alt: ZQ700-11
$158.00

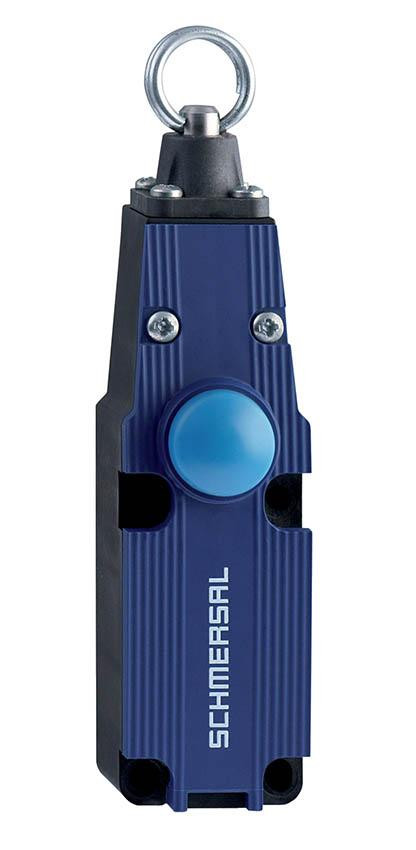

Emergency Cable Pull Switch, 10m Wire, Wire Pull and Breakage Detection, 1NO/1NC Contacts, 1 Cable Entry M20 x 1.5, Glass-Fibre Thermoplastic Enclosure, IP67
- Weight:
- 3.00 LBS
- Minimum Purchase:
- 1 unit
Description
Schmersal is one of the largest manufacturers of safety switching devices in the world. Their products includes safety switches, position switches, guarding devices, fail-safe monitors and timers as well as safety controllers, safety light curtains and foot switches.
Schmersal was founded in 1945 by brothers Kurt Andreas and Ernst Schmersal.
Features Include:
- Screw terminals M20 x 1.5
- Width: 40.5 mm
- Height: 160 mm
- Depth: 50.9 mm
- Thermal test current: 10 A
- Utilization category AC-15: 230 VAC
- Utilization category AC-15: 4 A
- Utilization category DC-13: 24 VDC
- Utilization category DC-13: 1 A
- Switching principle: snap action
- NO contact, NC contact
- One-side operation / wire up to 10 m long
- Release push button
- Position indicator
- Large wiring compartment
- Twisting of towing eye not possible
- Wire pull and breakage detection
- One tension force for cable lengths up to 10 m
