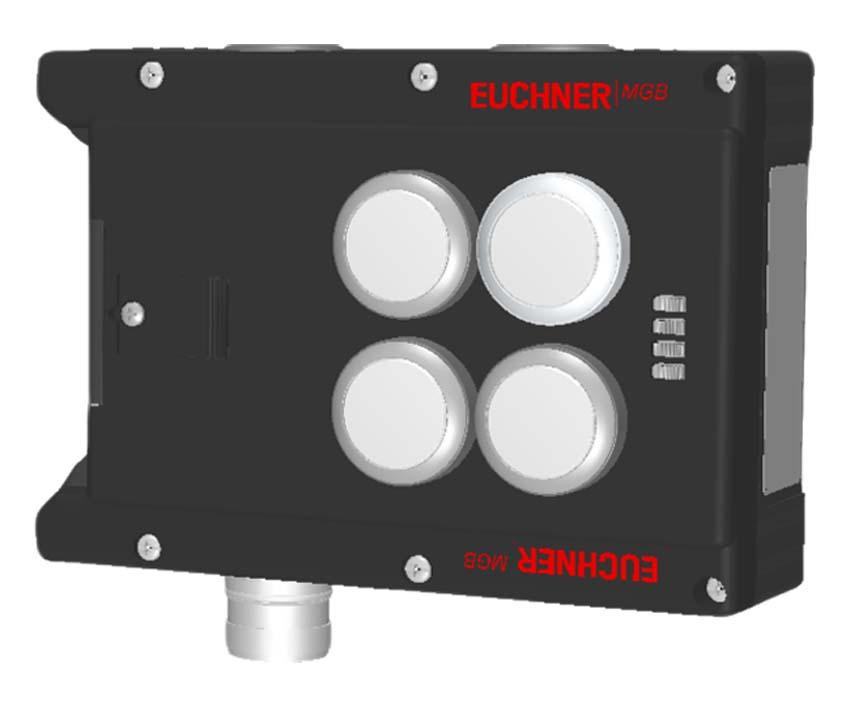

121353

Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.



Founded by Emil Euchner in 1940, Euchner remains a family owned company.

Features Include:

• Housing material: Fiber glass reinforced plastic; nickel-plated die-cast zinc; stainless steel
• Discrepancy time between FO1A and FO1B: max.: 10 ms
• Rated impulse withstand voltage Uimp: 1.5 kV
• Rated insulation voltage Ui: 30 V
• Safety class: III
• Transponder coding: Unicode
• Utilization category DC-13: 24V 200mA
• Ambient temperature at UB 24V DC: -20 - +55 °C
• Connection: Plug connector RC18
• Degree of protection: IP65
• Guard locking principle: Open-circuit current principle

Controls and indicators

• Breaking capacity max.: 0.25 W
• LED power supply: 24 V DC
• Switching current: 1 - 10 mA
• Switching voltage: UA V

Power supply UA

• Current consumption: IUA max. 375 mA
• Operating voltage DC: UA 24 V DC -15% - +10%

Power supply UB

• Current consumption: IUB max. 80 mA
• Operating voltage DC: UB 24 V DC -15% - +10%

Monitoring outputs OD, OT, OL, OI

• Output current max.: 50 mA
• Output type: Semiconductor outputs, p-switching, short circuit-proof
• Output voltage: UA-2V - UA V DC

Safety outputs FO1A, FO1B

• Output current per safety output FO1A / FO1B: 1 - 200 mA
• Test pulses max.: 1 ms
• Test-pulse interval min.: 100 ms
• Type of output: Semiconductor outputs, p-switching, short circuit-proof
• Output voltage: UFO1A /UFO1B LOW 0 - 1 V DC - UFO1A /UFO1B HIGH UB-2V - UB V DC

Technical Information:

• Euchner MGB-L2-ARA-AP1A1-S1-L-121353 Locking Module Datasheet
• Euchner Multifunctional Gate Box Catalog
• Euchner Multifunctional Gate Box Operating Instructions
• Euchner MGB-AR/MGB-AP Safety Information
