114819
Alt: TK2-4131AB024SM8
$906.31

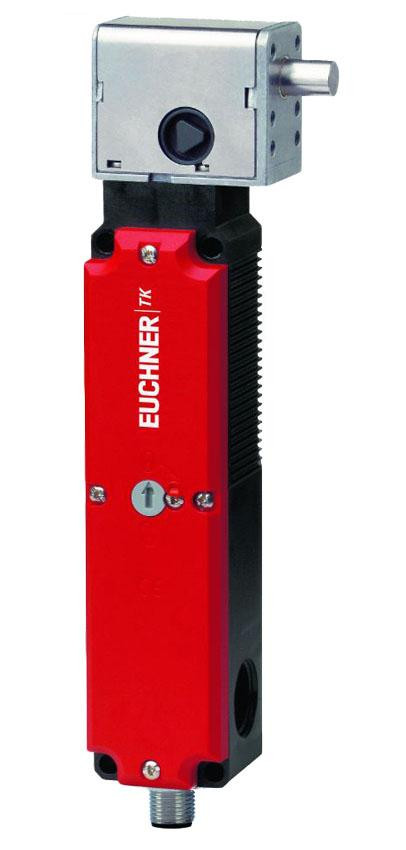

Safety Switch
- Weight:
- 1.37 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Features Include:
- Mounting on plastic housing TP with actuating head and locking pin made of metal
- High locking forces of 5,000 N
- Auxiliary release on the switch head
- Switching principle: Slow-action switching contact
- Power consumption: 8 W
- Rated impulse withstand voltage Uimp: 1.5 kV
- Rated insulation voltage Ui: 30 V
- Short circuit protection according to IEC 60269-1: 1A gG
- Solenoid duty cycle: 100 %
- Solenoid operating voltage: AC/DC 24 V -15% - +10%
- Switching voltage: min. at 10 mA 12 V
- Thermal rated current Ith: 1 A
- Utilization category: DC-13 1A 24V | AC-15 1A 24V
- Actuation frequency max.: 1200 1/h
- Ambient temperature: -20 - +55 °C
- Approach direction: A
- Connection: Plug connector M12 (8-pin)
- Degree of protection: IP67
- Guard locking principle: Open-circuit current principle
- Installation orientation: any
- Locking force Fmax: 5000 N
- Contact: Silver alloy, gold flashed
- Housing: Reinforced thermoplastic
- Mechanical life: 1 x 10⁶
- Number of guard lock monitoring NO contacts: 1
- Number of guard lock monitoring positively driven contacts: 2
Technical Information:
