103027215
Alt: AZ/AZM201-B30-LTAG1P20, (Replaced 101186150, AZ/AZM 200-B30-LTAG1P20)
$405.00

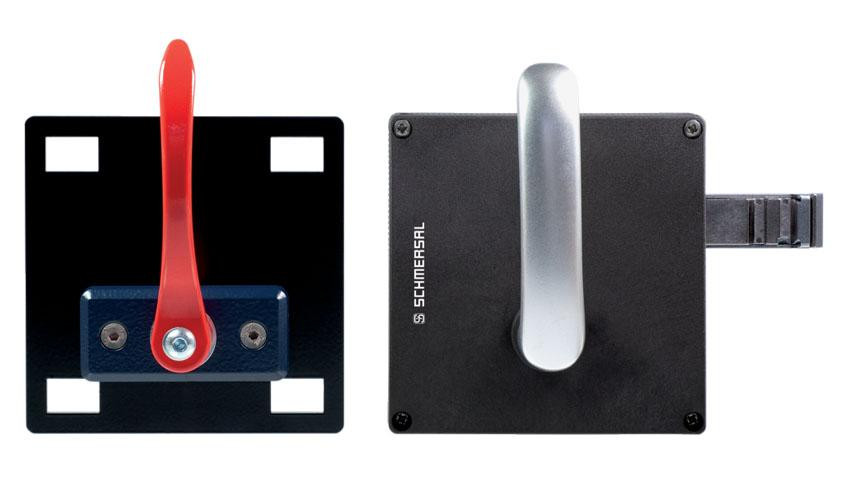

Solenoid Interlock Actuator, One-Hand Emergency Exit (Even in De-Energized Condition), Plastic, Glass-Fiber Reinforced Thermoplastic Encl., Self-Extinguishing, Left Door Hinge, No Supplementary Door Handles Required, Advertised Price Limite
- Weight:
- 3.50 LBS
- Minimum Purchase:
- 1 unit
Description
Schmersal is one of the largest manufacturers of safety switching devices in the world. Their products includes safety switches, position switches, guarding devices, fail-safe monitors and timers as well as safety controllers, safety light curtains and foot switches.
Schmersal was founded in 1945 by brothers Kurt Andreas and Ernst Schmersal.
Features Include:
- Enclosure material: Plastic, glass-fiber reinforced thermoplastic, self-extinguishing
- Material of the actuator: Zinc die-cast
- Material of the operators: Aluminum, plastic coating
- Emergency exit material: Metal film
- Emergency exit: Yes
- Grip: handle
- Door hinge: Left
- Clamping force in accordance with ISO14119 Fzh: 2,000 N
- Actuator mounted: Outside
- Length of the actuator: 60 mm
- Width of the actuator: 115 mm
- Height of the actuator: 115 mm
- Width of the emergency exit: 115 mm
- Height of the emergency exit: 115 mm
- One-hand emergency exit, even in de-energized condition
- Actuator for hinged guards
- Easy and intuitive operation
- No risk of injury from protruding actuator
- No supplementary door handles required
- Does not protrude into the door opening
