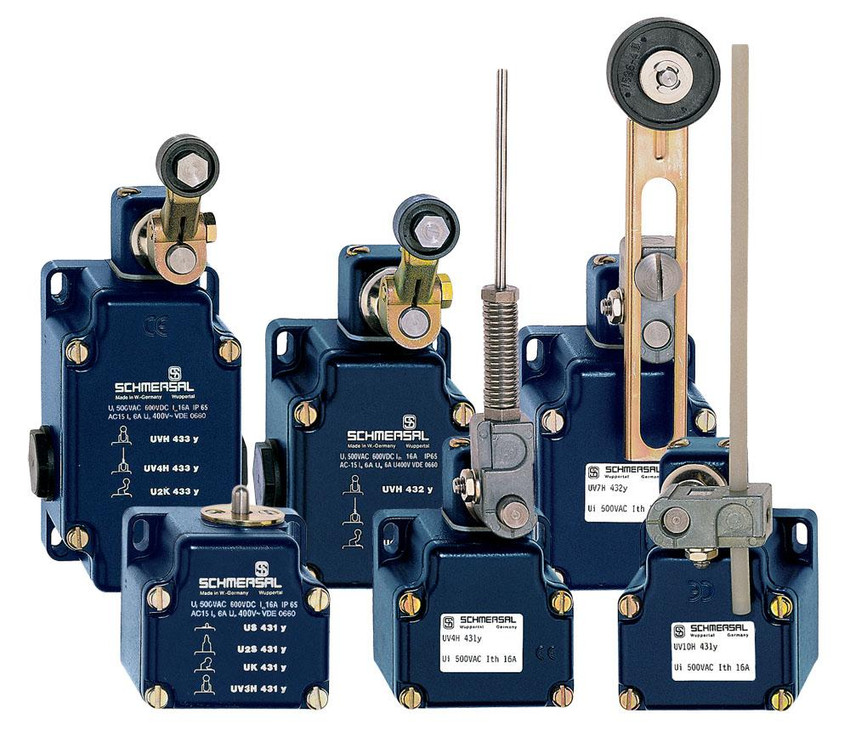

Product image is representative only, please verify specifications.
101060582
Alt: UV3H433Y, UV3H 433Y
$455.00
Heavy Duty Limit Switch
- Weight:
- 2.91 LBS
- Minimum Purchase:
- 1 unit
Description
Schmersal is one of the largest manufacturers of safety switching devices in the world. Their products includes safety switches, position switches, guarding devices, fail-safe monitors and timers as well as safety controllers, safety light curtains and foot switches.
Schmersal was founded in 1945 by brothers Kurt Andreas and Ernst Schmersal.
Series Features Include:
- Enclosure: light-alloy diecast, chromated and paint finish
- Protection class: IP65 to IEC 60529, DIN VDE 0470-1
- Contact material: Silver
- Switching system: slow action, double break
- Contact types: NC contact
- Connection: Screw terminals M4
- Cable section: max. 2.5 mm² (incl. conductor ferrules)
- Cable entry: M20 x 1.5
- Rated impulse withstand voltage Uimp: 6 kV
- Rated insulation voltage Ui: 500 V
- Rated operating current/voltage Ie/Ue: 6 A / 400 VAC
- Thermal test current Ithe: 16 A
- Max. fuse rating: 16 A gL / gG gG D-fuse
- Contact opening: max. 2 x 1.5 mm
- Ambient temperature: −20 - +60°C
- Mechanical life: 10 x 106 operations
- Contact life: 2 x 106 operations at 6 A/400 V, cos ᵠ = 0.4
- Max. switching frequency: 3,000/h
- Actuating speed: max. 1 m/s, min. 1 mm/s at the plunger
