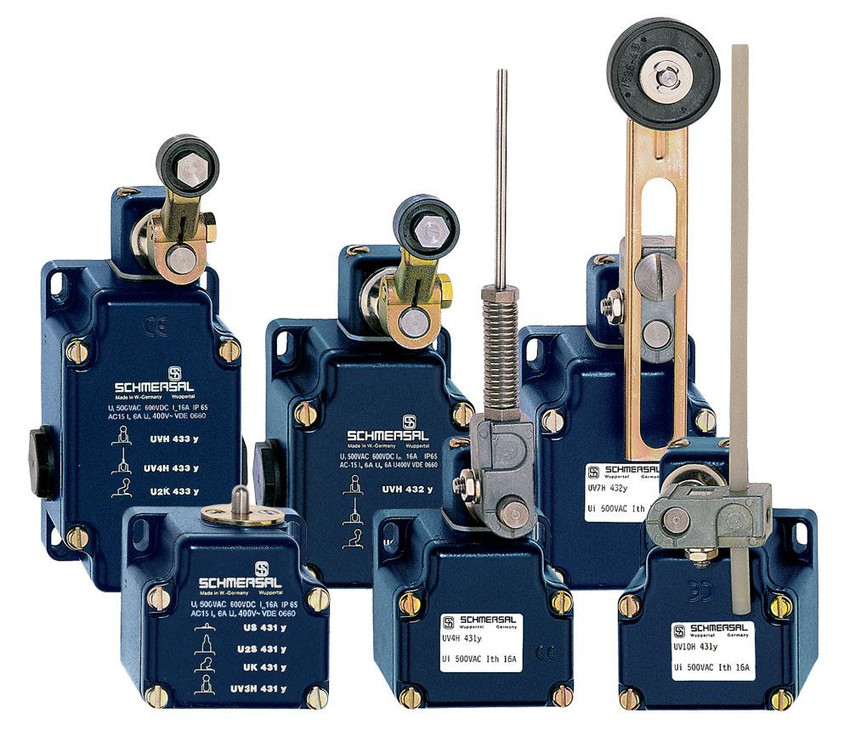

Product image is representative only, please verify specifications.
101060542
Alt: UV4H432Y, UV4H 432Y
$446.00
Heavy Duty Limit Switch
- Weight:
- 2.91 LBS
- Minimum Purchase:
- 1 unit
Description
Schmersal is one of the largest manufacturers of safety switching devices in the world. Their products includes safety switches, position switches, guarding devices, fail-safe monitors and timers as well as safety controllers, safety light curtains and foot switches.
Schmersal was founded in 1945 by brothers Kurt Andreas and Ernst Schmersal.
Specifications
Alternate Part Number
UV4H432Y, UV4H 432Y
Normally Open/Closed
See Spec
Series
See Specs
Type of Product
Limit Switches
All - Voltage
See Spec or N/A
Warranty
18 Months
Weight
2.911
Series Features Include:
- Enclosure: light-alloy diecast, chromated and paint finish
- Protection class: IP65 to IEC 60529, DIN VDE 0470-1
- Contact material: Silver
- Switching system: slow action, double break
- Contact types: NC contact
- Connection: Screw terminals M4
- Cable section: max. 2.5 mm² (incl. conductor ferrules)
- Cable entry: M20 x 1.5
- Rated impulse withstand voltage Uimp: 6 kV
- Rated insulation voltage Ui: 500 V
- Rated operating current/voltage Ie/Ue: 6 A / 400 VAC
- Thermal test current Ithe: 16 A
- Max. fuse rating: 16 A gL / gG gG D-fuse
- Contact opening: max. 2 x 1.5 mm
- Ambient temperature: −20 - +60°C
- Mechanical life: 10 x 106 operations
- Contact life: 2 x 106 operations at 6 A/400 V, cos ᵠ = 0.4
- Max. switching frequency: 3,000/h
- Actuating speed: max. 1 m/s, min. 1 mm/s at the plunger
