NAB-4050WHD

NAB-4050WHD

Alt: NAB Series

$13.04

Wire Duct, Open Slot, White, 4 x 5” (W x H), Minimum Order of 24' Per Carton (4 Lengths), Price per Foot

Weight:
1.00 LBS
Minimum Purchase:
24 units
Adding to cart… The item has been added
Description

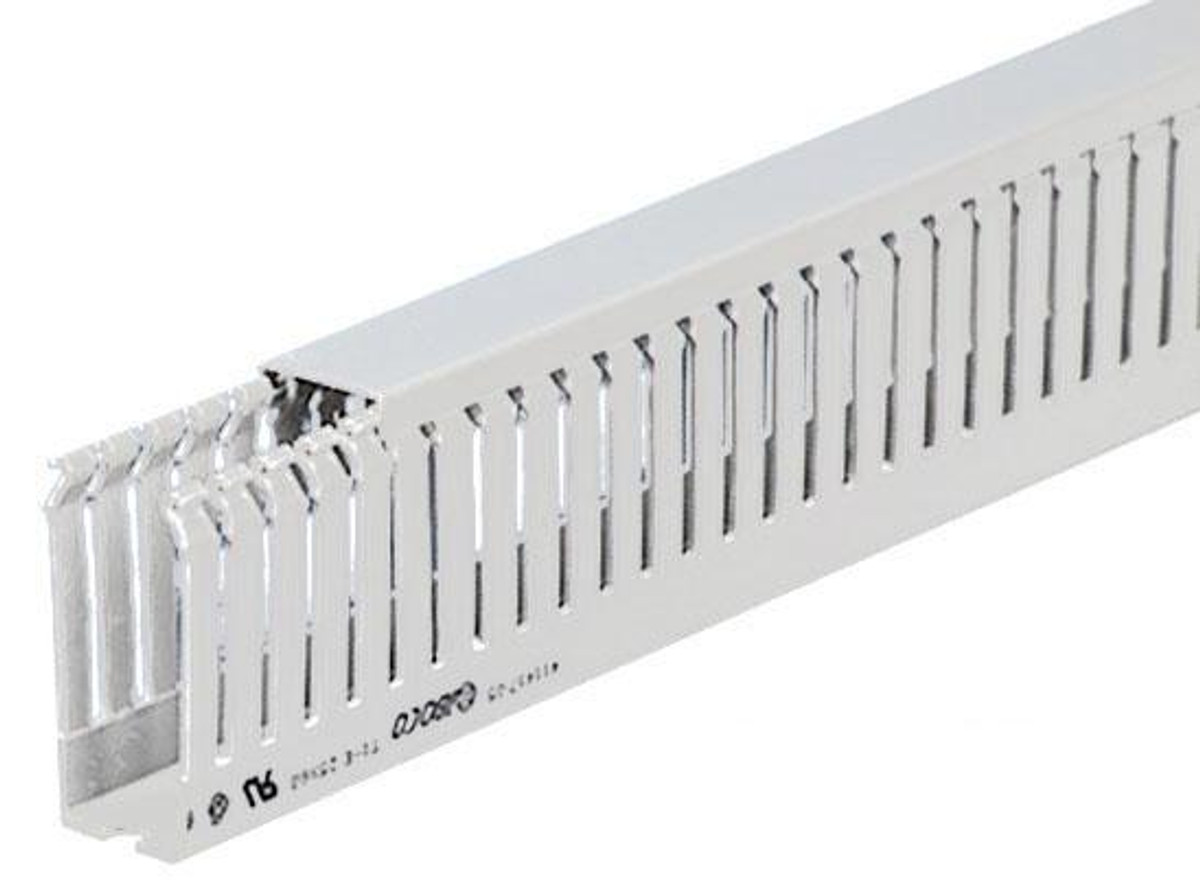

Introducing IBOCO’s new Hager brand of North American base (NAB) standard finger PVC wiring duct!

This series is 2-meters in length and includes the lid with a protective film that is easily removable after lid installation. The lid is a flush cover that snaps securely over the fingers, ensuring a tight fit with minimal effort.

The individual fingers with 2 predetermined break lines insure a finger breakout on the upper score line and easy sidewall removal with hand tool on the lower scoreline.

Please note we only sell carton quantities of wiring duct.

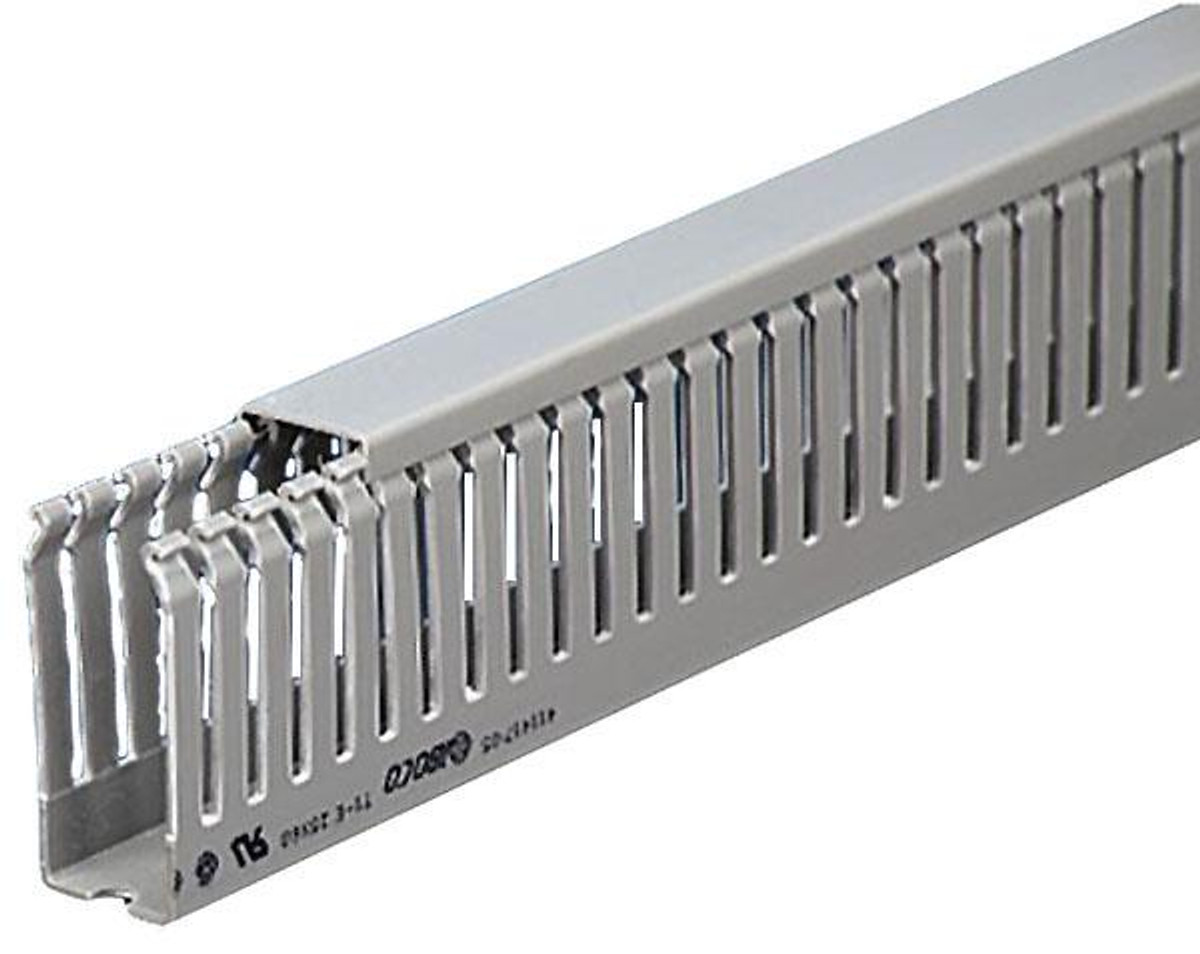

  • NAB-XXXXG - Grey standard finger wiring duct
  • NAB-XXXXW - White standard finger wiring duct
  • NAB-XXXXHG - Grey narrow finger/high density wiring duct
  • NAB-XXXXWHD - White narrow finger/high density wiring duct

Features Include:

  • Normal Size (W x H): 4" x 5"
  • Standard Lengths: 4
  • Carton Qty. Feet: 24

Dimensions (actual):

  • Width: 3.94" (100 mm)
  • Height: 4.92" (125 mm)
  • E (the distance between fingers): 0.16"
  • F (the width of individual fingers): 0.24"

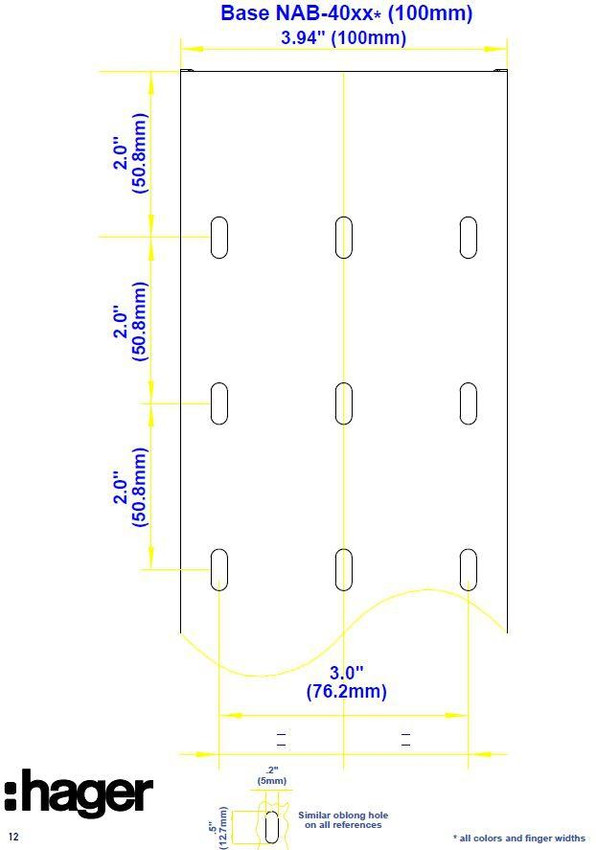

The Hager Brand wire duct reflects the mounting hole configuration of all "North American" branded wire duct. Immediate mounting to your back panel or enclosure specified mounting holes.

  • Hager Brand lids include a protective, removable film, that can be easily removed after installation, eliminating unwanted scratches or smudges.
  • Flexible, double score-line for fast and easy modification. No cutter for firstshoreline. Flush/Burr free break. Second scoreline easily removed with the SX-15 hand duct cutter.
  • Fingers insure tight cover fit in Vertical positions.
  • Heavy-duty shipping carton insures "out of box" wire duct, and inclusive cover, insuring complete product integrity, ready to mount. No damages.
