Iboco
NAB-3050GHD
Wire Duct, Open Slot, Grey, 3 x 5” (W x H), Minimum Order of 36' Per Carton (6 Lengths), Price per Foot
$11.15
Product image is representative only, please verify specifications.
NAB-3030GHD
Alt: NAB Series
$7.40
Wire Duct, Open Slot, Grey, 3 x 3” (W x H), Minimum Order of 72' Per Carton (12 Lengths), Price per Foot
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 72 units
Description
Introducing IBOCO’s new Hager brand of North American base (NAB) standard finger PVC wiring duct!
This series is 2-meters in length and includes the lid with a protective film that is easily removable after lid installation. The lid is a flush cover that snaps securely over the fingers, ensuring a tight fit with minimal effort.
The individual fingers with 2 predetermined break lines insure a finger breakout on the upper score line and easy sidewall removal with hand tool on the lower scoreline.
Please note we only sell carton quantities of wiring duct.
- NAB-XXXXG - Grey standard finger wiring duct
- NAB-XXXXW - White standard finger wiring duct
- NAB-XXXXHG - Grey narrow finger/high density wiring duct
- NAB-XXXXWHD - White narrow finger/high density wiring duct
Features Include:
- Normal Size (W x H): 3" x 3"
- Standard Lengths: 12
- Carton Qty. Feet: 72

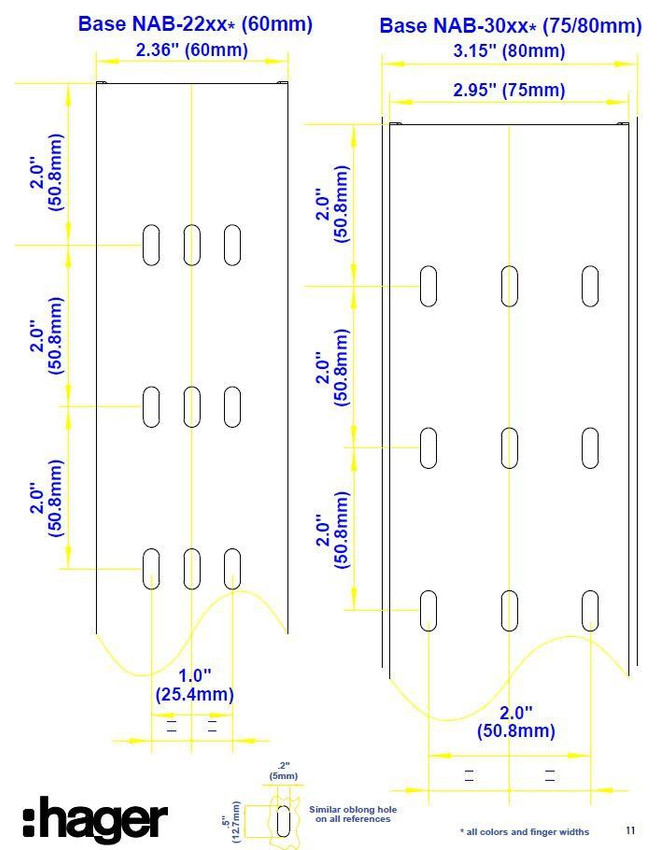

Dimensions (actual):
- Width: 3.15" (80 mm)
- Height: 3.15" (80 mm)
- E (the distance between fingers): 0.16"
- F (the width of individual fingers): 0.24"
The Hager Brand wire duct reflects the mounting hole configuration of all "North American" branded wire duct. Immediate mounting to your back panel or enclosure specified mounting holes.
- Hager Brand lids include a protective, removable film, that can be easily removed after installation, eliminating unwanted scratches or smudges.
- Flexible, double score-line for fast and easy modification. No cutter for firstshoreline. Flush/Burr free break. Second scoreline easily removed with the SX-15 hand duct cutter.
- Fingers insure tight cover fit in Vertical positions.
- Heavy-duty shipping carton insures "out of box" wire duct, and inclusive cover, insuring complete product integrity, ready to mount. No damages.
