Iboco
T1-1522G
Wire Duct, Open Slot, Grey, 1.5 x 2.25" (W x H), 108' per Carton (18 Lengths), Price per Foot
$4.63
Product image is representative only, please verify specifications.
NAB-1522G
Alt: NAB Series
$4.70
Wire Duct, Open Slot, Grey, 1-1/2 x 2-1/4” (W x H), Minimum Order of 108' Per Carton (18 Lengths), Price per Foot
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 108 units
Description

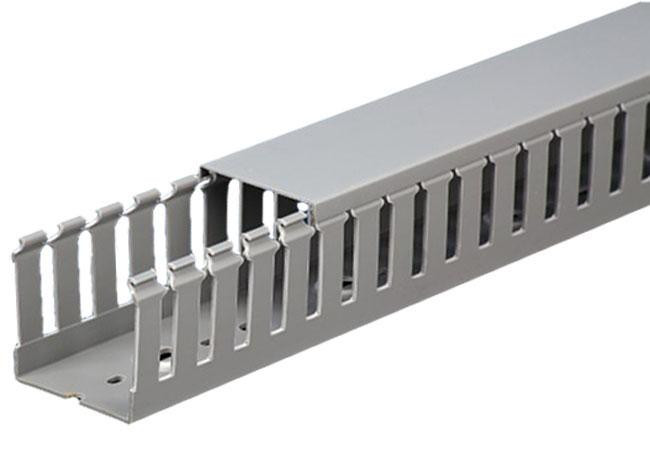

Introducing IBOCO’s new Hager brand of North American base (NAB) standard finger PVC wiring duct!
This series is 2-meters in length and includes the lid with a protective film that is easily removable after lid installation. The lid is a flush cover that snaps securely over the fingers, ensuring a tight fit with minimal effort.
The individual fingers with 2 predetermined break lines insure a finger breakout on the upper score line and easy sidewall removal with hand tool on the lower scoreline.
Please note we only sell carton quantities of wiring duct.
- NAB-XXXXG - Grey standard finger wiring duct
- NAB-XXXXW - White standard finger wiring duct
- NAB-XXXXHG - Grey narrow finger/high density wiring duct
- NAB-XXXXWHD - White narrow finger/high density wiring duct
Features Include:
- Normal Size (W x H): 1-1/2" x 2-1/4"
- Standard Lengths: 18
- Carton Qty. Feet: 108
Dimensions (actual):
- Width: 1.57" (40 mm)
- Height: 2.36" (60 mm)
- E (the distance between fingers): 0.31"
- F (the width of individual fingers): 0.47"

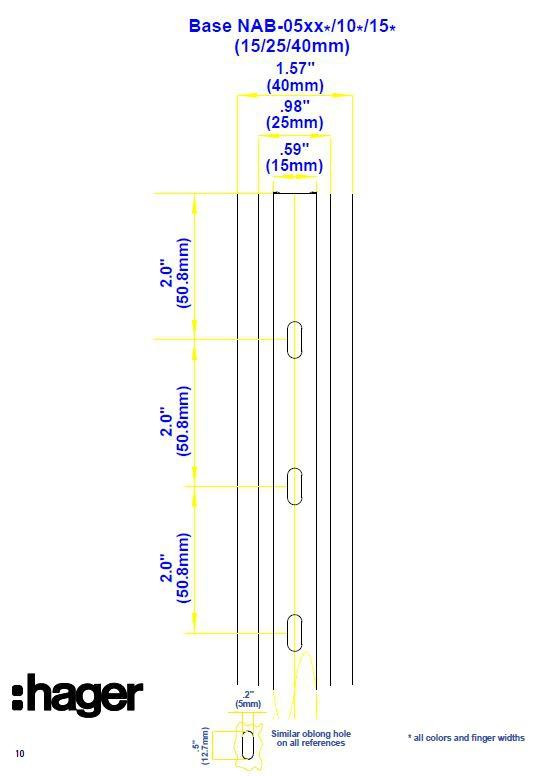

The Hager Brand wire duct reflects the mounting hole configuration of all "North American" branded wire duct. Immediate mounting to your back panel or enclosure specified mounting holes.
- Hager Brand lids include a protective, removable film, that can be easily removed after installation, eliminating unwanted scratches or smudges.
- Flexible, double score-line for fast and easy modification. No cutter for firstshoreline. Flush/Burr free break. Second scoreline easily removed with the SX-15 hand duct cutter.
- Fingers insure tight cover fit in Vertical positions.
- Heavy-duty shipping carton insures "out of box" wire duct, and inclusive cover, insuring complete product integrity, ready to mount. No damages.
