Wireless Data Receiver, Lite Version for PATLITE Signal Tower, Must Be Used with WD Transmitter. Compatible Transmitters: WDT-5E-Z2, WDT-6M-Z2, WDT-4LR-Z2, WDT-5LR-Z2, and WDT-6LR-Z2), Part of WD System - Wireless Data Acquisition, The Lite
This WDR-PRO receiver can be used with Patlite LR series and legacy signal towers* as part of the WD Wireless Data Acquisition System:
Signal Tower + WD transmitter (WDT-xxx-Z2) sends wireless transmission to the WD receiver (WDR-LE-22-PRO) which can then be viewed on your andon display.
WDR-PRO receivers:
Can receive data from up to 30 transmitters
Output CSV files from tansmitted data for analysis
Run multiple applications simultaneously (WDR-LE-22-PRO only, not available for Lite version WDR-LE-22-PRO-L)
Remotely monitor operations vis Andon Display
The WD Receiver acts as a data bridge between transmitters and PCs to receive raw equipment data from WD Transmitters on LR or Legacy light towers for export to CSV file. The WDR also allows for real-time light and buzzer statuses of all connected stack lights displayed on your computer screen.
This full capacity version (WDR-LE-Z2-PRO) receiver allows use of a wide variety of collaboration protocols including SQL database, Modbus/TCP, as well as the Andon Display for your computer. there is also a built-in setup browser.
The lite version (WDR-LE-Z2-PRO-L) does not have andon display, transmitter settings use WDS-WIN01 software and there are a limited number of protocols available.
WD Receiver must be used with WD Transmitter. Compatible WDT models:

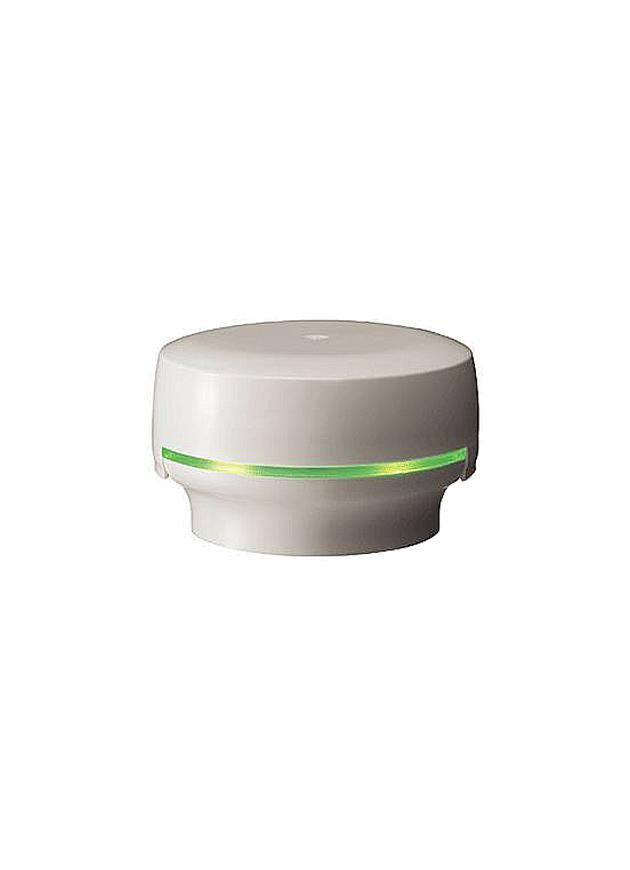

WDT-5E-Z2

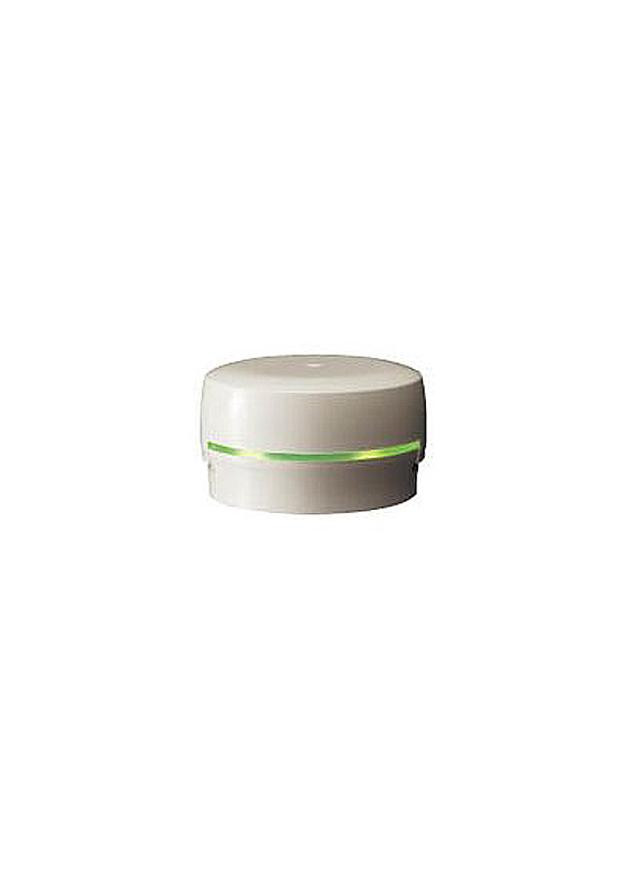

WDT-6M-Z2
WDT-4LR-Z2
WDT-5LR-Z2
WDT-6LR-Z2
WD system setup software is used to acquire and download CSV file containing machine status data. Must be used with WD transmitter attached to a Patlite signal tower and a WD receiver.
WD system CSV data logger software license WDS-WIN01
The WD System enables wireless data acquisition of equipment statuses, regardless of the machine’s age or model. Users can obtain real-time statuses and monitor their equipment remotely. This data can be collected and analyzed to improve predictive maintenance, identify bottlenecks and maximize OEE.
Compatible signal towers include LR4, LR5, LR6, LE, LME series
DC24V
Wireless data receiver for Patlite signal towers - compatible with LR4, LR5, LR6, LE, LME series
Receive data from up to 30 transmitters
Output CSV files from transmitted data for analysis
Remotely monitor operations via Andon display
Full version (WDR-LE-22-PRO)
Run multiple applications simultaneiously
Allows use of a wide variety of collaboration protocols including SQL database, Modbus/TCP, as well as the Andon Display for your computer
Acts as a data bridge between transmitters and PCs to receive raw equipment data from WD Transmitters on LR or Legacy light towers for export to CSV file.
Allows for real-time light and buzzer statuses of all connected stack lights displayed on your computer screen.
WD Receiver must be used with WD Transmitter. Compatible WDT models:
