Delta Industrial Automation

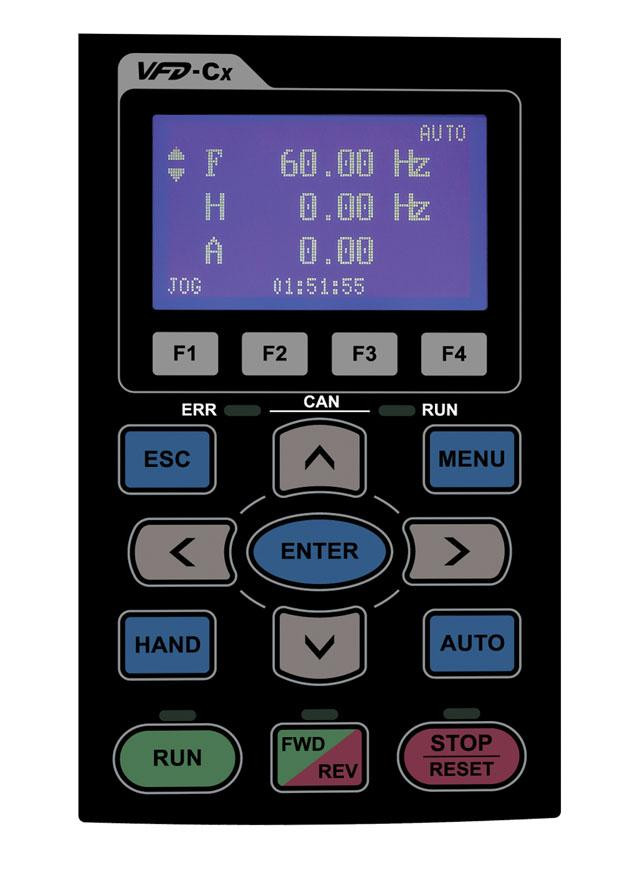

KPC-CC01
Single Line LCD Keypad for VFD-C2000 Drives, Optional, Allows You To Customize Display
$112.36
Product image is representative only, please verify specifications.

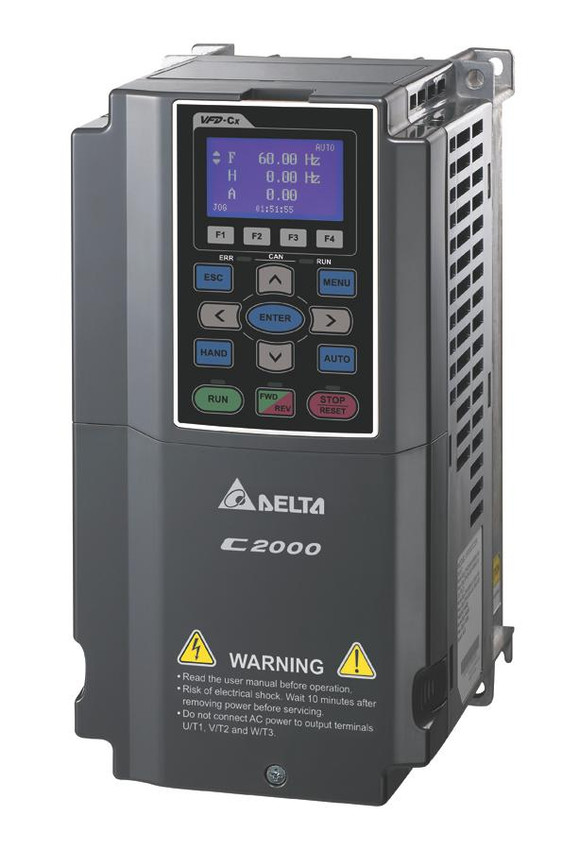

VFD037C43A-21
Alt: This is the Latest Version of VFD037C43A
$870.40
VFD, 5hp, 460V, 3 Phase, High Efficiency and Performance, Built-In PLC
- Weight:
- 8.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Delta C2000 Plus Series features precise speed, torque and position control functions that are ideal for both sensor and sensorless types of synchronous and asynchronous motors.
With higher overload capacity, the power range of C2000 Plus Series 460 V models reach up to 560 kW, providing the best performance and stability for a variety of heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal & infrastructure, and other industries.
For advanced manufacturing, the C2000 Plus Series is equipped with built-in PLC functions and supports various protocols for the ultimate in system flexibility and fast data exchange
C2000 Plus Overload Capability - dual rated for heavy duty and super heavy duty
- Heavy Duty 150% 60 / 180% 3 sec.
- Super Heavy Duty 150% 60 / 200% 3 sec.
C200 Plus Power Rating:
- 460 V - 0.75 kW ~ 560 kW
- 230 V - 0.75 kW ~ 90 kW
Specifications
Alternate Part Number
This is the Latest Version of VFD037C43A
Horsepower
5 hp
Housing/Enclosure
IP20
Input Phase
3 Phase
Input Voltage
400-480V, 3 Phase
Outdoor Rated
No
Output
3 Phase Output
Series
VFD-C2000+
Options
Enclosed, Modular
STO (Safe Torque Off)
No
Torque Load
Constant (CT)
Drives - Type of Drive
General Purpose
Warranty
2 Years
Weight
8
Series Features Include:
- Speed/torque/position control mode, dual rating design (Normal duty/heavy duty)
- Outstanding 4-quadrant torque control/limit
- 2 in 1 (induction motor and synchronous motor)
- Built-in Delta PLC function, safe stop function and brake unit
- Support of various network protocols
- Synchronous position control
- Long-life design and life detection of important components
- Enhanced protections and adaptation to ambient conditions
- Complies with global safety standards, including CE, UL and cUL
- Modular design for easy maintenance and many extensions
- High-speed communication interface with built-in CANopen and MODBUS communication (optional cards for PROFIBUS-DP, DeviceNet, MODBUS TCP and EtherNet/IP)
Downloads
- Delta Vector Control Drive C2000 Series Catalog
- Delta Vector Control Drive C2000 Series User Manual
- Delta High Frequency Motor Drive C2000-HS Series Catalog
- Delta High Frequency Motor Drive C2000-HS User Manual
- Delta Application Manual for C2000, CP2000, CH2000 Series AC Drives
- Delta Industrial EMC Standard Installation Guide
- Delta VFDB Series Braking Modules Instruction Sheet
- Delta VFDB4110/4160/4185 Series Braking Modules Instruction Sheet
- Delta VFDB6055/6110/6160/6200 Series Braking Modules Instruction Sheet
- Delta Industrial Zero Phase Reactor Instruction Sheet
- Delta Industrial RS485 Splitter VFD-CMD 04/08 Instruction Sheet
- Delta Industrial IFD 6500 USB/RS-485 Communication Interface Instruction Sheet
- Delta Industrial CMC-EIP01 EtherNet/IP Communication Card Instruction Sheet
- Delta Industrial EtherNet/IP Operation Manual
- Delta Industrial CMC-DN01 DeviceNet Communication Card Instruction Sheet
- Delta Industrial CMC-DN01 DeviceNet Communication Card Operation Manual
- Delta Industrial CMC-EC01 EtherCAT Communication Card Operation Manual
- Delta Industrial CMC-MOD01 Modbus TCP Communication Card Instruction Sheet
- Delta Industrial CMC-MOD01 Modbus TCP Communication Card Operation Manual
- Delta Industrial CMC-PD01 PROFIBUS DP Slave Communication Card Instruction Sheet
- Delta Industrial CMC-PD01 PROFIBUS DP Slave Communication Card Operation Manual
- Delta Industrial CMC-PN01 PROFINET Communication Card Operation Manual
- Delta Industrial Suggestions and Error Corrections for Standard AC Motor Drives
- Delta Industrial AC Motor Drive Standard Product Label Change Guide
