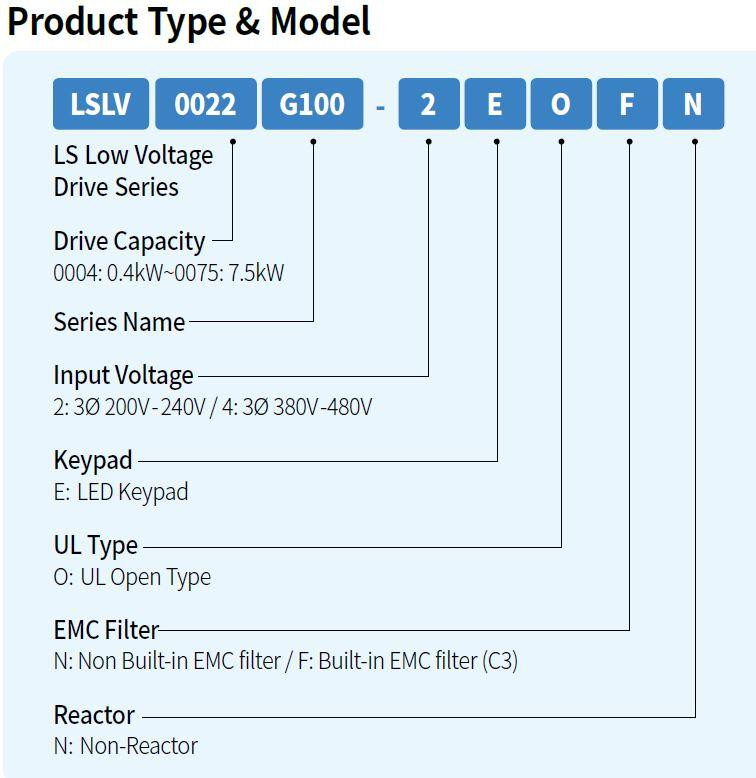

LSLV0055G100-2EONN

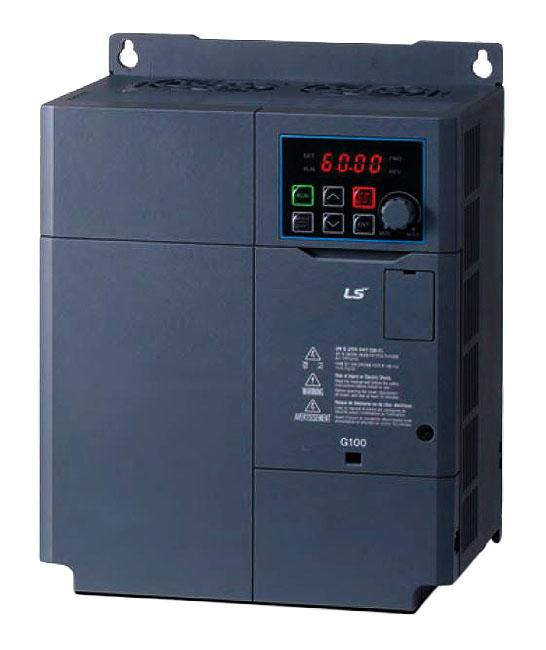

The LSIS G100 series is the perfect choice for general purpose applications! This drive meets UL 61800-5-1 requirements which will go into effect on February 1st, 2020 (see more below).

Additional features:

• Sensorless and V/F performance
• User-friendly
• Dual rated for both constant and variable torque
• Easy to install, use and maintain
• Embedded C3 EMC filter (400V)
• Side by side installation
• Built in potentiometer
• Applied auto-torque boost and flux braking function

UL 61800-5-1 goes into effect February 1st, 2020 - it will apply to all new drives and new builds and will replace UL508C. Existing drives are grandfathered in.

The G100 series replaced the C100 series in October 2019. Please note the G100 series does not have STO safety input.

Marshall Wolf Automation is your authorized stocking LSIS distributor!

Features Include:

• Input Voltage: 3-Phase 200~240VAC (-15%~+10%)
• Output Frequency: 0~400Hz (IM sensorless: 0~120Hz)
• Output Voltage: 3-Phase 200~240V
• Output Frequency: 0~400Hz (IM sensorless: 0~120Hz)
• Control Method: V/F, Slip Compensation, Sensorless Vector Frequency Setting
• Built-in Potentiometer
• DIN rail Mount (Below 4kW)
• Remote Keypad: Copy parameter (Read/Write) using remote keypads
• Smart Copier: Copy parameter (Read/Write) and download firmware without supplying power to drive
• Multiple Fieldbus options: Dual Port EtherNet/IP, Profibus-DP, CANopen
• 2 type of connection of Modbus communication: RJ45 Port, I/O (S+, S-)

Input Current

• Heavy Duty: 25.8 A
• Normal Duty: 32.7 A

Motor Rating

• Heavy Duty: 7.5 HP
• Normal Duty: 10 HP

Output Capacity:

• Heavy Duty: 9.1kVA
• Normal Duty: 11.4kVA

Technical Information:

• LS Electric G100 Series General AC Drive Catalog
• LS Electric G100 Series General AC Drive User Manual
• LS Electric G100 (.5 - 10HP) Quick Start Reference
• LS Electric Low-Voltage Drive Solution Catalog
• LS Electric Smart Factory Automation Solutions Brochure

Options Technical Information:

• LS Electric LSLV-G100 Series Remote Keypad Dimensional Drawing
• LS Electric LSLV-G100 Ethernet Option Board User Manual
• LS Electric SmartCopier Firmware Download User Manual
• LS Electric SmartCopier Parameter Read/Write Function User Manual
• LS Electric Dynamic Braking Resistor Flyer
• LS Electric Dynamic Braking Resistor User Manual

Application Notes:

• LS Electric Crane Applications
