A22025003
Lutze

A22025003

Alt: DRIVEFLEX Series

$98.03

VFD Cable, 75hp, 230V, 290A, 250 kcmil, 3C, 3 Symmetrical Grounds, DRIVEFLEX®, UL Listed, Sold/Price per Foot

Weight:
2.90 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
UL Listed to comply with codes and standards for electrical wiring of VFD's and motors! PLEASE NOTE: to qualify for free shipping, shipping weight of the spool must be < 50 pounds.
Description

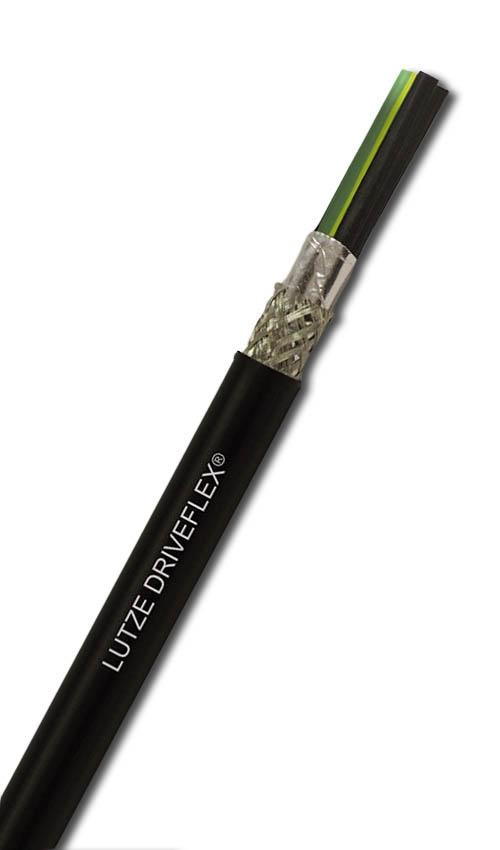

LUTZE DRIVEFLEX cable is designed to cope with the power distortions in VFD applications.

  • UL listed type 'flexible VFD servo cable, flexible motor supply cable' that complies with codes and standards regarding electrical wiring of VFD's.
  • Superior electrical values for drive applications
  • Safer and more efficient than PVC/nylon power tray cables or THHN wires in conduit
  • DRIVEFLEX XLPE insulation is the superior choice for VFD apps with PWM to cope with high voltage and power distortions from the drive output
  • Shielded VFD cable can help to mitigate electrical noise which decreases shaft voltage and motor bearing failures (A107/A217/A218)

Available in:

  • VFD cable (A106/A216/A220)
  • VFD cable with 1 control pair (A107/A217)
  • VFD cable with 2 control pairs (A218)

Additional Information:

  • A106xx04: small OD design for tight spaces or conduit installation
  • A107xx04: small OD design for tight spaces or conduit installation, including one shielded pair for brake or control signals
  • A216xx04: excellent electrical performance, great for long cable runs
  • A217xx04: excellent electrical performance, great for long cable runs, including one shielded pair for brake or conrol signals
  • A218xx04: excellent electrical performance, great for long cable runs, including two shielded pair sfor brake or conrol signals
  • A220xx03: symmetrical ground design for higher hp motors and drives

Marshall Wolf Automation is your authorized LUTZE distributor! We offer a full line of variable frequency drives and motors as well.

Features Include:

  • Flexible XLPE conductors
  • Three symmetrical grounds (PE)
  • Non-wicking fillers
  • Effective dual layer shield for best EMC results
  • Specially formulated jacket for oil resistance and easy strip design
  • Low capacitance cable
  • Sunlight resistant
  • Direct burial
  • UL Type TC-Exposed Run
  • Talc free and silicone free
