A2204/003
Lutze

A2204/003

Alt: DRIVEFLEX Series

$83.69

VFD Cable, 75/150hp, 230/460V, 260A, 36617, 3C, 3 Symmetrical Grounds, DRIVEFLEX®, UL Listed, Sold/Price per Foot

Weight:
2.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
UL Listed to comply with codes and standards for electrical wiring of VFD's and motors! PLEASE NOTE: to qualify for free shipping, shipping weight of the spool must be < 50 pounds.
Description

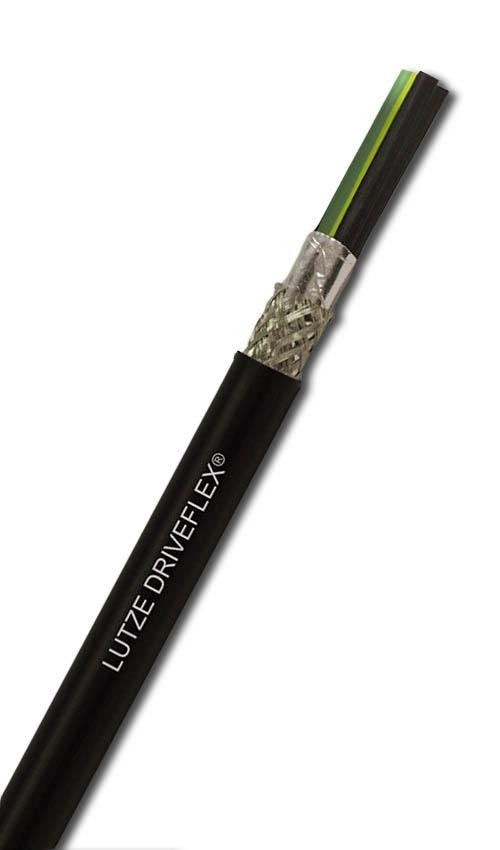

LUTZE DRIVEFLEX cable is designed to cope with the power distortions in VFD applications.

  • UL listed type 'flexible VFD servo cable, flexible motor supply cable' that complies with codes and standards regarding electrical wiring of VFD's.
  • Superior electrical values for drive applications
  • Safer and more efficient than PVC/nylon power tray cables or THHN wires in conduit
  • DRIVEFLEX XLPE insulation is the superior choice for VFD apps with PWM to cope with high voltage and power distortions from the drive output
  • Shielded VFD cable can help to mitigate electrical noise which decreases shaft voltage and motor bearing failures (A107/A217/A218)

Available in:

  • VFD cable (A106/A216/A220)
  • VFD cable with 1 control pair (A107/A217)
  • VFD cable with 2 control pairs (A218)

Additional Information:

  • A106xx04: small OD design for tight spaces or conduit installation
  • A107xx04: small OD design for tight spaces or conduit installation, including one shielded pair for brake or control signals
  • A216xx04: excellent electrical performance, great for long cable runs
  • A217xx04: excellent electrical performance, great for long cable runs, including one shielded pair for brake or conrol signals
  • A218xx04: excellent electrical performance, great for long cable runs, including two shielded pair sfor brake or conrol signals
  • A220xx03: symmetrical ground design for higher hp motors and drives

Marshall Wolf Automation is your authorized LUTZE distributor! We offer a full line of variable frequency drives and motors as well.

Features Include:

  • Special XLPE insulation with low capacitance
  • High dielectric strength
  • Effective EMC-compatible shielding thanks to 2-layer shield
  • PVC outer jacket, easy to strip
  • Sunlight-resistant
  • "Direct burial“ for installation in the ground
  • Silicone free
  • RoHS compliant
