A1061404
Alt: DRIVEFLEX Series
$3.98

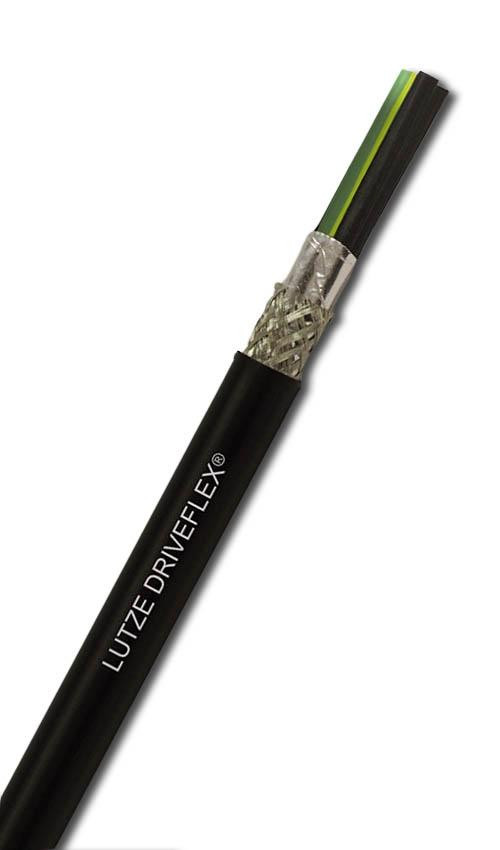

VFD Cable, 5/10hp, 230/460V, 25A, 14AWG, 4C, XHHW-2, DRIVEFLEX® Drive Cable, UL Listed, Sold/Price per Foot
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
LUTZE DRIVEFLEX cable is designed to cope with the power distortions in VFD applications.
- UL listed type 'flexible VFD servo cable, flexible motor supply cable' that complies with codes and standards regarding electrical wiring of VFD's.
- Superior electrical values for drive applications
- Safer and more efficient than PVC/nylon power tray cables or THHN wires in conduit
- DRIVEFLEX XLPE insulation is the superior choice for VFD apps with PWM to cope with high voltage and power distortions from the drive output
- Shielded VFD cable can help to mitigate electrical noise which decreases shaft voltage and motor bearing failures (A107/A217/A218)
Available in:
- VFD cable (A106/A216/A220)
- VFD cable with 1 control pair (A107/A217)
- VFD cable with 2 control pairs (A218)
Additional Information:
- A106xx04: small OD design for tight spaces or conduit installation
- A107xx04: small OD design for tight spaces or conduit installation, including one shielded pair for brake or control signals
- A216xx04: excellent electrical performance, great for long cable runs
- A217xx04: excellent electrical performance, great for long cable runs, including one shielded pair for brake or conrol signals
- A218xx04: excellent electrical performance, great for long cable runs, including two shielded pair sfor brake or conrol signals
- A220xx03: symmetrical ground design for higher hp motors and drives
Marshall Wolf Automation is your authorized LUTZE distributor! We offer a full line of variable frequency drives and motors as well.
Features Include:
- Special XLPE insulation with low capacitance
- High dielectric strength
- Effective EMC-compatible shielding thanks to 2-layer shield
- PVC outer jacket, easy to strip
- Sunlight-resistant
- "Direct burial“ for installation in the ground
- Silicone free
- RoHS compliant
