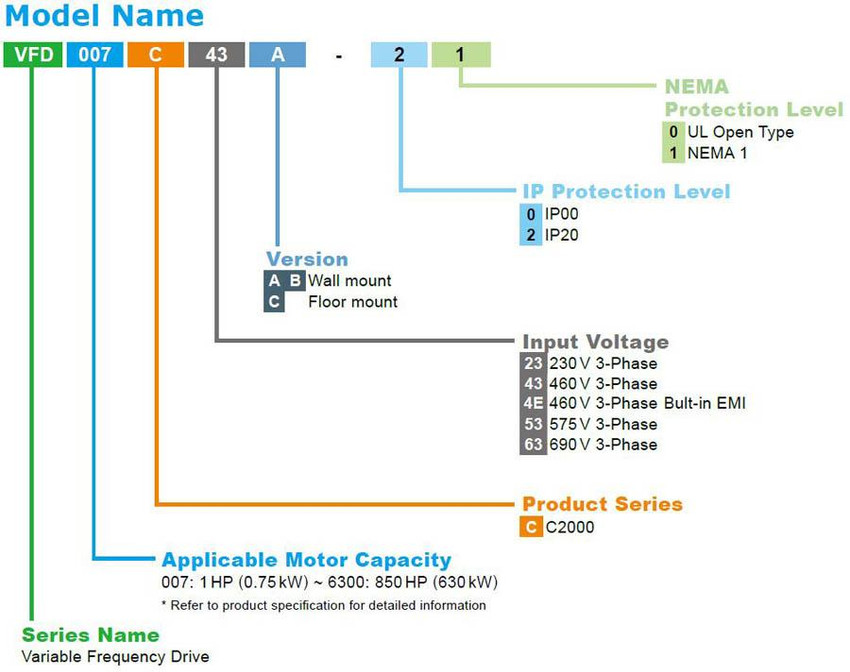

VFD450C43S-00

VFD450C43S-00

Alt: This is the Recommended Replacement for VFD450C43S

$3,623.20

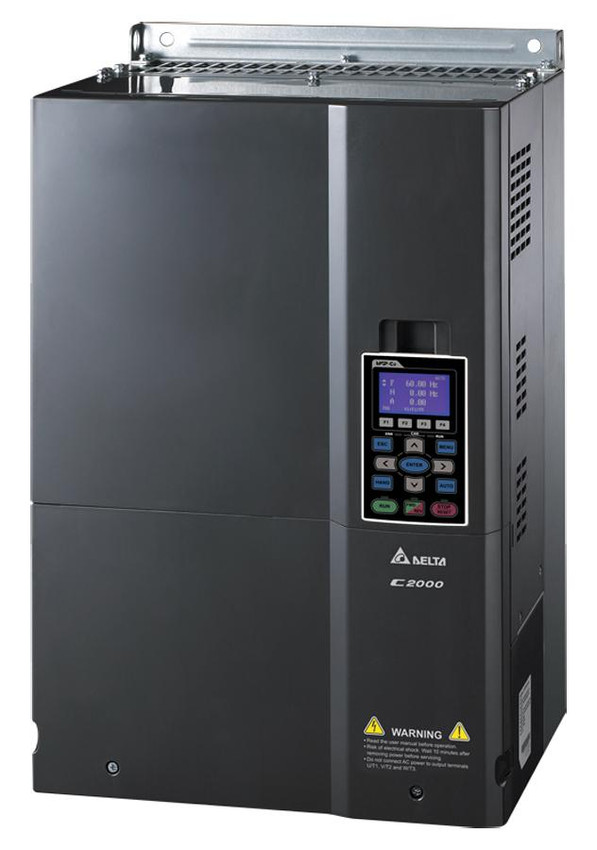

VFD, C2000, 60hp, 460V, FOC & TRQ Drive w/o Conduit Box for UL Open, IP00

Weight:
63.80 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Delta has a full line of products in their industrial automation division. This include drives, power supplies and HMI as well as timers, temperature controllers and networking solutions.

Delta Industrial Automation is part of Delta Electronics.

Series Features Include:

  • Heavy-duty overload capability up to 150% / 60 sec. and 180% / 3 sec. at rated current; sensorless vector control of IM / PM / SynRM motors
  • IP55 fans, efficient heat sink and Class 3C3 conformal PCB coating
  • Built-in PLC (10k steps) and remote I/O integration for CANopen / Modbus master stations
  • Control Functions: Torque control, Speed / torque control switching, Feed forward control, Zero-servo control,
    Momentary power loss ride thru, Speed search, Over-torque detection, Torque Limit, 16-step speed (Max.),
    Accel / decel time switch, S-curve accel / decel, 3-wire sequence, Auto-Tuning (rotational, stationary), Dwell,
    Slip compensation, Torque compensation, JOG frequency, Fault restart, Frequency upper / lower limit settings, DC injection braking at start / stop, High slip braking, Parameter copy PID control (with sleep function), Energy saving control, MODOBUS communication (RS-485 RJ45, Max. 115.2 kbps)
  • Optional Communication cards: EtherCAT, EtherNet/IP, DeviceNet, PROFINET, PROFIBUS DP, Modbus TCP, CANopen
  • Starting Torque: Reach up to 150% or above at 0.5 Hz. Under FOC+PG mode, starting torque can reach 150% at 0 Hz
  • V/F Curve: 4-point adjustable V/F curve and square curve
  • Speed Response Ability: 5 Hz (vector control can reach up to 40 Hz)
  • Over-temperature Protection: Built-in temperature sensor
  • Stall Prevention: Stall prevention during acceleration, deceleration and running independently
  • Restart After Instantaneous Power Failure: Parameter setting up to 20 seconds
    Grounding Leakage Current Protection: Leakage current is higher than 50% of rated current of the AC motor drive
  • Short-circuit Current Rating (SCCR): Per UL508C, the drive is suitable for use on a circuit capable of delivering not more than 100kA symmetrical amperes (rms) when protected by fuses given in the fuse table

Technical Information:

Options Technical Information:
