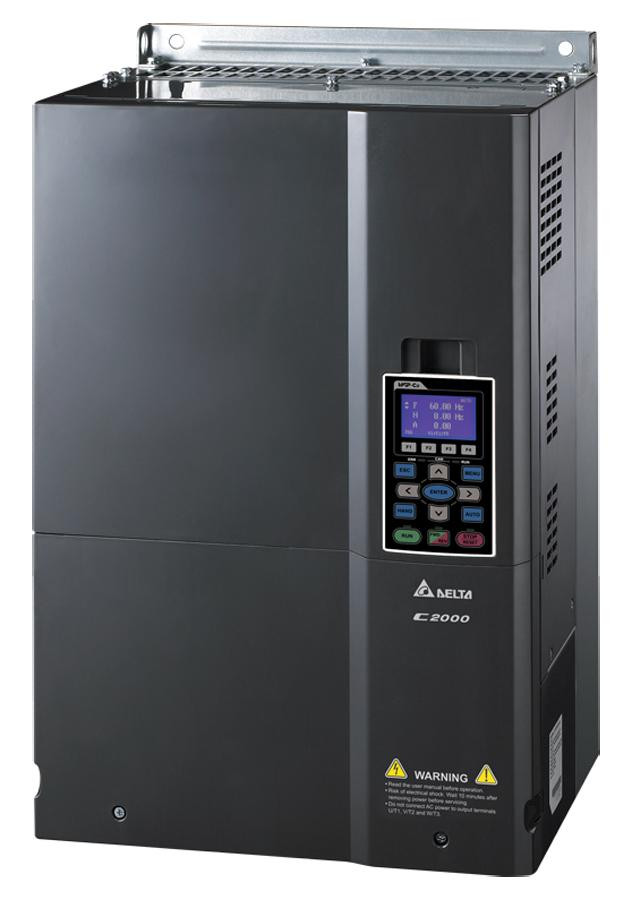

VFD300C23A-00

Name: VFD300C23A-00
Brand: Delta Industrial Automation
SKU: VFD300C23A-00
Price: 3528 USD
Availability: InStock

Alt: This is the Recommended Replacement for VFD300C23A

$3,528.00

VFD, C2000+, 40hp, 230V, FOC & TRQ Drive w/o Conduit Box for UL Open, IP00

SKU:: VFD300C23A-00
Weight:: 110.00 LBS
Minimum Purchase:: 1 unit

Current Stock:

Quantity:

Current Stock:

Adding to cart… The item has been added

Description
Accessories

Description

Delta has a full line of products in their industrial automation division. This include drives, power supplies and HMI as well as timers, temperature controllers and networking solutions.

Delta Industrial Automation is part of Delta Electronics.

Series Features Include:

Heavy-duty overload capability up to 150% / 60 sec. and 180% / 3 sec. at rated current; sensorless vector control of IM / PM / SynRM motors
IP55 fans, efficient heat sink and Class 3C3 conformal PCB coating
Built-in PLC (10k steps) and remote I/O integration for CANopen / Modbus master stations
Control Functions: Torque control, Speed / torque control switching, Feed forward control, Zero-servo control,
Momentary power loss ride thru, Speed search, Over-torque detection, Torque Limit, 16-step speed (Max.),
Accel / decel time switch, S-curve accel / decel, 3-wire sequence, Auto-Tuning (rotational, stationary), Dwell,
Slip compensation, Torque compensation, JOG frequency, Fault restart, Frequency upper / lower limit settings, DC injection braking at start / stop, High slip braking, Parameter copy PID control (with sleep function), Energy saving control, MODOBUS communication (RS-485 RJ45, Max. 115.2 kbps)
Optional Communication cards: EtherCAT, EtherNet/IP, DeviceNet, PROFINET, PROFIBUS DP, Modbus TCP, CANopen
Starting Torque: Reach up to 150% or above at 0.5 Hz. Under FOC+PG mode, starting torque can reach 150% at 0 Hz
V/F Curve: 4-point adjustable V/F curve and square curve
Speed Response Ability: 5 Hz (vector control can reach up to 40 Hz)
Over-temperature Protection: Built-in temperature sensor
Stall Prevention: Stall prevention during acceleration, deceleration and running independently
Restart After Instantaneous Power Failure: Parameter setting up to 20 seconds
Grounding Leakage Current Protection: Leakage current is higher than 50% of rated current of the AC motor drive
Short-circuit Current Rating (SCCR): Per UL508C, the drive is suitable for use on a circuit capable of delivering not more than 100kA symmetrical amperes (rms) when protected by fuses given in the fuse table
