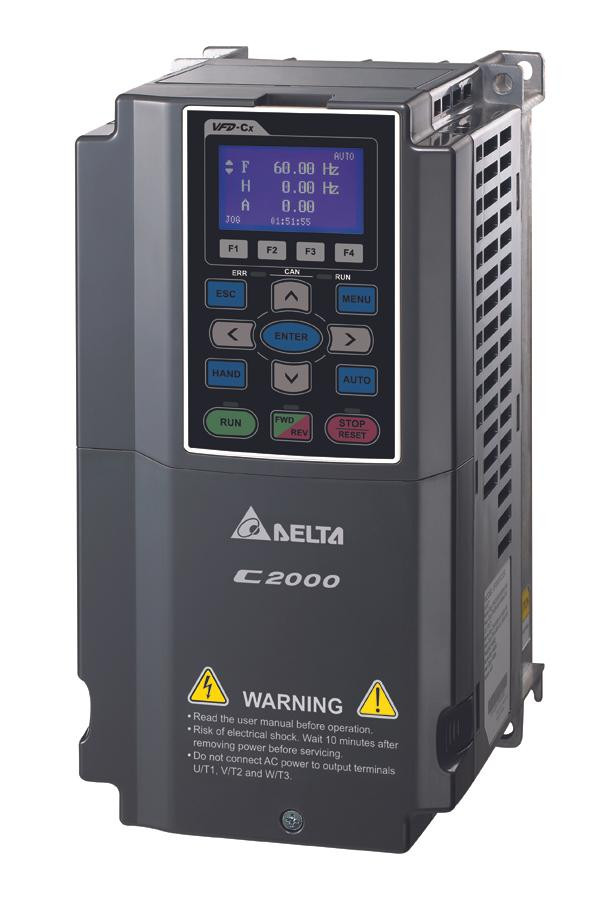

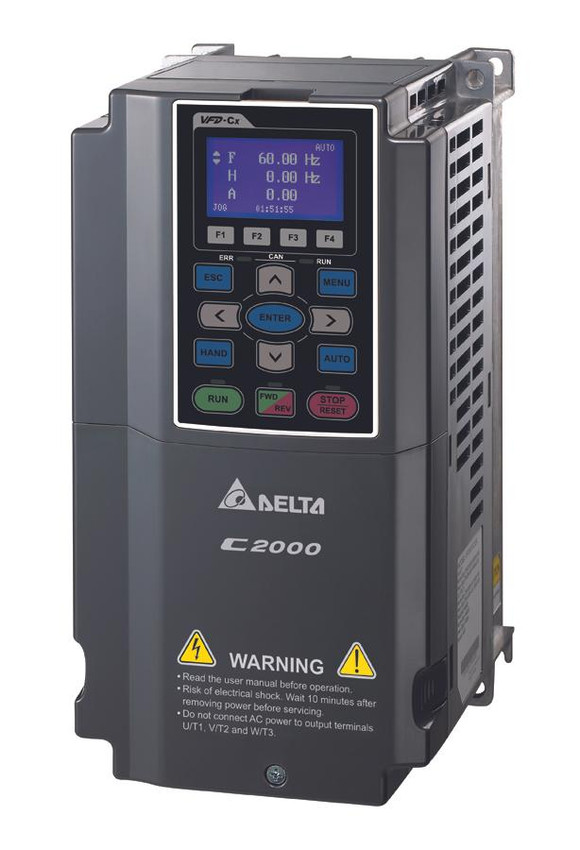

VFD015C23A-21

The Delta C2000 Plus Series features precise speed, torque and position control functions that are ideal for both sensor and sensorless types of synchronous and asynchronous motors.

With higher overload capacity, the power range of C2000 Plus Series 460 V models reach up to 560 kW, providing the best performance and stability for a variety of heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics,  municipal & infrastructure, and other industries.

For advanced manufacturing, the C2000 Plus Series is equipped with built-in PLC functions and supports various protocols for the ultimate in system flexibility and fast data exchange

C2000 Plus Overload Capability - dual rated for heavy duty and super heavy duty

• Heavy Duty 150% 60 / 180% 3 sec.
• Super Heavy Duty 150% 60 / 200% 3 sec.

C200 Plus Power Rating:

• 460 V  -  0.75 kW ~ 560 kW
• 230 V  -  0.75 kW ~ 90 kW

Series Features Include:

• Heavy-duty overload capability up to 150% / 60 sec. and 180% / 3 sec. at rated current; sensorless vector control of IM / PM / SynRM motors
• IP55 fans, efficient heat sink and Class 3C3 conformal PCB coating
• Built-in PLC (10k steps) and remote I/O integration for CANopen / Modbus master stations
• Control Functions: Torque control, Speed / torque control switching, Feed forward control, Zero-servo control,
  Momentary power loss ride thru, Speed search, Over-torque detection, Torque Limit, 16-step speed (Max.),
  Accel / decel time switch, S-curve accel / decel, 3-wire sequence, Auto-Tuning (rotational, stationary), Dwell,
  Slip compensation, Torque compensation, JOG frequency, Fault restart, Frequency upper / lower limit settings, DC injection braking at start / stop, High slip braking, Parameter copy PID control (with sleep function), Energy saving control, MODOBUS communication (RS-485 RJ45, Max. 115.2 kbps)
• Optional Communication cards: EtherCAT, EtherNet/IP, DeviceNet, PROFINET, PROFIBUS DP, Modbus TCP, CANopen
• Starting Torque: Reach up to 150% or above at 0.5 Hz. Under FOC+PG mode, starting torque can reach 150% at 0 Hz
• V/F Curve: 4-point adjustable V/F curve and square curve
• Speed Response Ability: 5 Hz (vector control can reach up to 40 Hz)
• Over-temperature Protection: Built-in temperature sensor
• Stall Prevention: Stall prevention during acceleration, deceleration and running independently
• Restart After Instantaneous Power Failure: Parameter setting up to 20 seconds
  Grounding Leakage Current Protection: Leakage current is higher than 50% of rated current of the AC motor drive
• Short-circuit Current Rating (SCCR): Per UL508C, the drive is suitable for use on a circuit capable of delivering not more than 100kA symmetrical amperes (rms) when protected by fuses given in the fuse table
