ODE-3-420240-104A
Alt: Optidrive E3 Series
$1,536.00
VFD, 7.5p, 5.5kW, 24A, 200-240V SIngle Phase Input/3 Phase Output, LED Keypad, No EMC Filter, Internal Brake Transistor, Modbus RTU/CANopen, NEMA 4X, IP66 Outdoor Non-Switched, Frame 4: 14.2 x 9.5 x 10.7", 360 x 240 x 2271mm (HWD)
- Weight:
- 27.00 LBS
- Minimum Purchase:
- 1 unit
Description

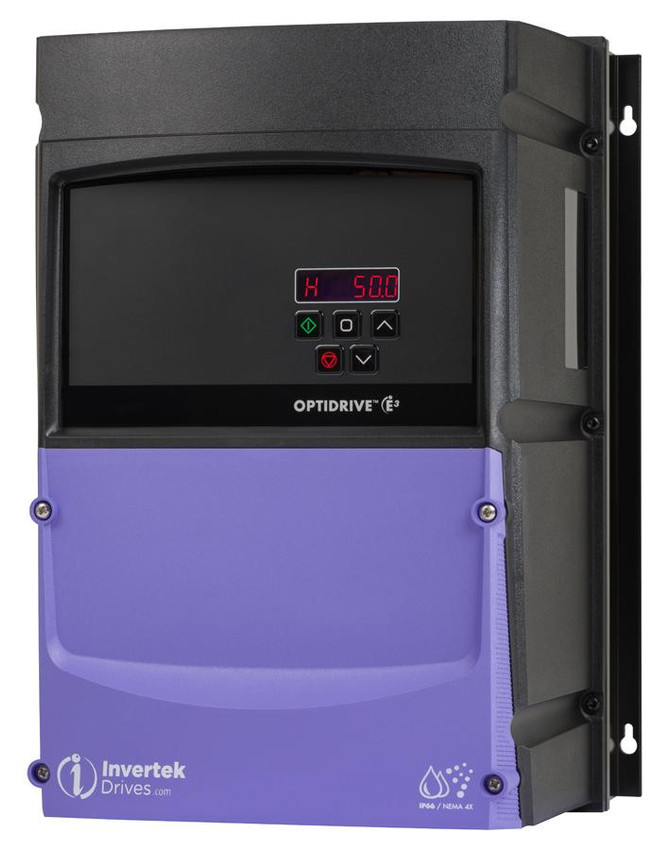

The Optidrive E3 from Invertek is a general purpose sensorless vector drive that is great for most motor types.
E3 series, 3 phase rated drives (with the exception of Size 4 IP66/NEMA 4X models) can be derated by 50% for use in single phase power applications. Please see more information under 'Documents'.
Invertek offers single phase input drives up to 10 hp, these drives are not derated.
- This is the most popular, general purpose drive from Invertek
- Available from 0.5 to 50hp
- Single and 3 phase input, 110 to 480V models
- Single phase input models available up to 10hp!
- Choose from IP20 or IP66/NEMA 4X models
- Switch between Industrial or Pump & Fan modes
- Simple set up – just 14 basic parameters and functions
- Includes models for single phase motors
- Can be used with all motor types; induction, AC permanent magnet, brushless DC, line start PM, synchronous reluctance
- Internal Category C1 EMC filter
- 2 year warranty
IP20 (part #'s ending in 2):
- Available up to 50hp, no disconnect switch
- Indoor rated
- 3 phase models can be derated by 50% for use in single phase power applications

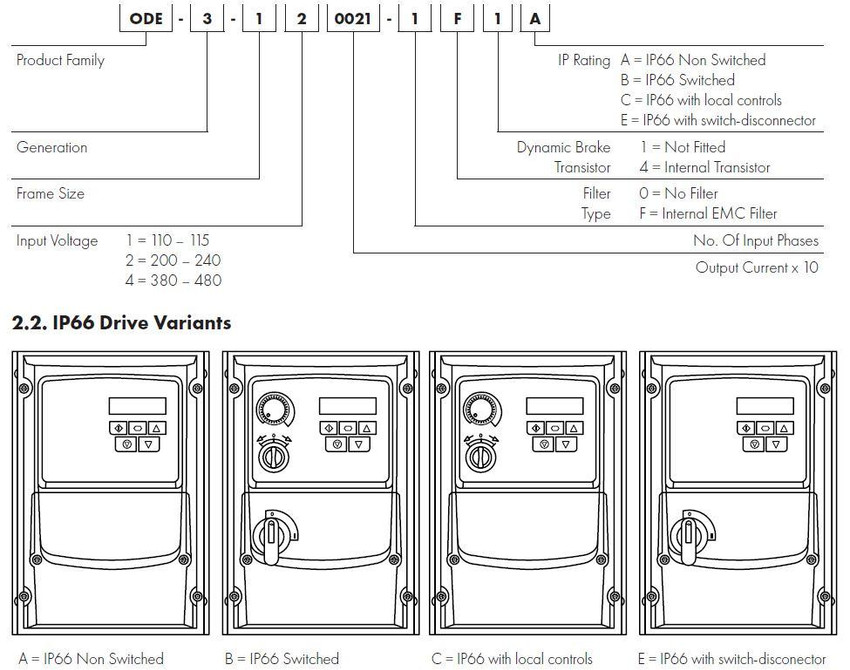

IP66/NEMA 4X (part #'s ending in A or B):
- Ending in B is Outdoor, with disconnect switch
- Ending in A is Outdoor, no disconnect switch
- Outdoor rated, dust-tight and washdown ready!
- Please note: For IP66/NEMA 4X three phase input models, chassis size 4 is not capable of being derated for use in applications supplying single phase power to these units.
- Size 4 chassis use film capacitors which prohibit single phase operation.
Single Phase Input/Output:
- Available from 0.5 to 1,5hp
- For use on permanent split capacitor (PSC) or shaded pole induction motors
- These drives end in -01
- Higher horsepower 3 phase models can be derated for use in single phase power applications.
- Switch between industrial mode, pump mode and fan mode
- 14 parameter basic setup, default settings suitable for most applications
- Internal Category C1 EMC filter
Features Include:
- Power Supply: 200-240V
- Input Phases: 1
- Supply Current Continuous: 55 A
- Supply Fuse or MCB (Type B): 80 A
- Motor Output Rating: 5.5 kW (7.5 HP)
- Output Voltage: 0 – Supply Voltage
- Output Current: 24 A
- EMC Filter: No Internal EMC Filter
- Brake Transistor: Internal Brake Transistor
- Digital Control Setpoint: Motorised Potentiometer (Keypad), Modbus RTU, CANopen, EtherNet/IP
- Enclosure: IP66 Outdoor Switched
- Display: LED

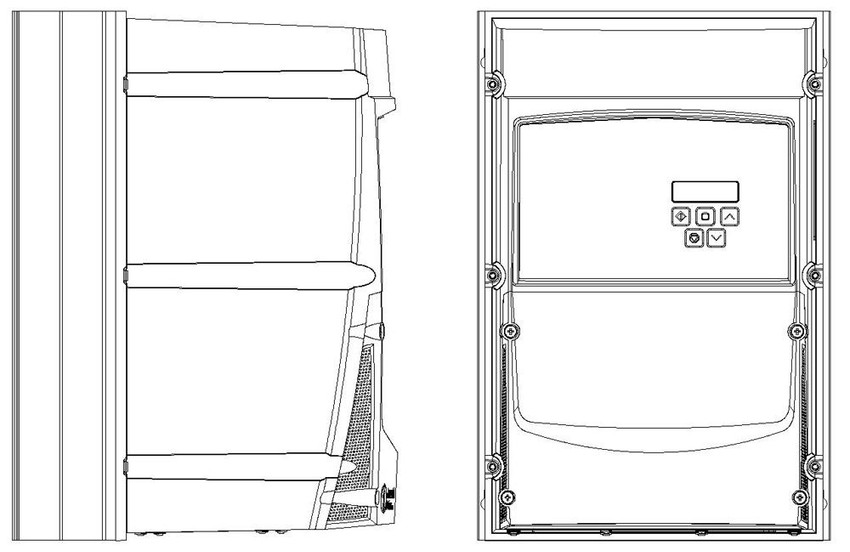

- Size: 4
- Height: 360 mm (14.17 in)
- Width: 240 mm (9.45 in)
- Depth: 261 mm (10.28 in)
Technical Information:
- Invertek ODE-3-420240-104A Datasheet
- Invertek High Power VFDs for Single Phase Supplies Flyer
- Invertek Optidrive E3 General Purpose Drive Brochure
- Invertek Optidrive E3 Indoor User Guide
- Invertek Optidrive E3 IP66 Outdoor User Guide
- Invertek Optidrive E3 Quick Start Guide
- Invertek Optidrive E3 Advanced Technical Manual
- Invertek Stock Drives Catalog
Options and Communication Cards:
- Invertek Relay Output Module User Guide
- Invertek IP66 Sun Shade Installation Guide
- Invertek RJ45 Port Expansion Module User Guide
Application Notes:
- Invertek Optidrive E3 BLDC Motor Compressor Application Note
- Invertek Optidrive E3 Modbus Register Information Application Note
- Invertek PI Control Using Optidrive E3 Application Note
- Invertek Optidrive E3 Setting Up Preset Speeds Application Note
- Invertek Optidrive E3 Using the Brake Circuit Application Note
- Invertek Optidrive E3 Using Standby Mode Application Note
- Invertek Optidrive E3 Using the Display Scaling Function Application Note
- Invertek Optidrive E3 Using the 2ROUT Option Application Note
- Invertek Optidrive E3 Programming The User Relay Application Note
- Invertek Optidrive E3 Selecting the Start - Restart Mode Application Note
- Invertek Optidrive E3 Using the Skip Frequency Function Application Note
- Invertek Optidrive E3 Configuring Analog Inputs for Voltage and Current Application Note
- Invertek Optidrive E3 Displaying Motor Speed in RPM Application Note
- Invertek Optidrive E3 Locking Parameters to Prevent Changes Application Note
- Invertek Optidrive E3 Setting the Required Stopping Mode Application Note
- Invertek Optidrive E3 Setting Up Acceleration and Deceleration Ramp Times Application Note
- Invertek Optidrive E3 Setting the Motor Nameplate Details for Standard Motors Application Note
- Invertek Optidrive E3 Use of Three Phase Drives On Single Phase Power Supply Application Note
- Invertek Optidrive E3 Using the Maximum of Analogue Input Values Application Note
- Invertek Optidrive E3 Using RCD's with Variable Frequency Drives Application Note
