I55AE255F1AV11000S
Alt: i550 Series
$1,057.61

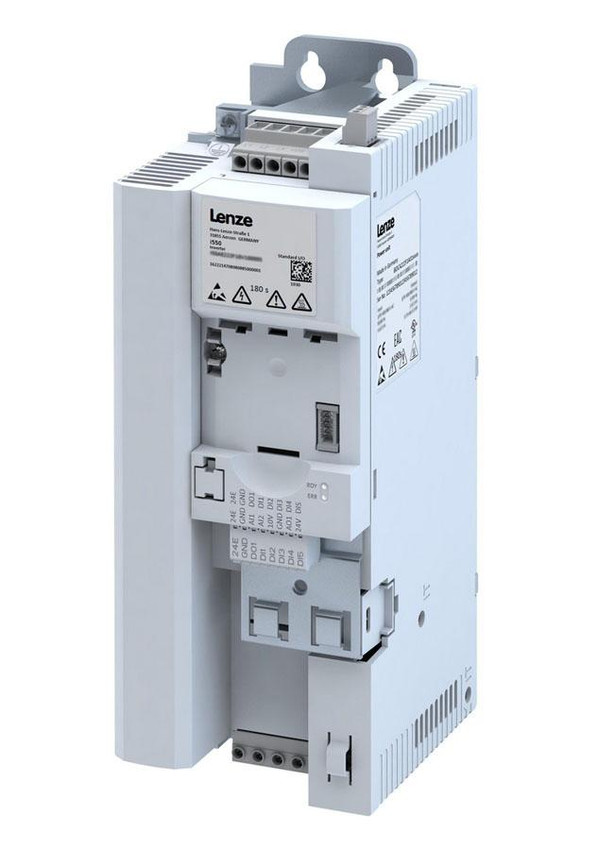

VFD, 7.5hp, 480VAC, 3 Phase, Standard I/O, Safe Torque Off (STO), IP20, i550 Inverter
- Weight:
- 5.47 LBS
- Minimum Purchase:
- 1 unit
Description
Lenze Americas is a U.S. based global company that designs and manufacturers inverters, gear motors and mechanical components.
Lenze Americas was formerly known as AC Tech and continues to manufacturer these popular drives. Lenze Americas is headquartered in Massachusetts while Lenze SE corporate headquarters are located in Hamelin, Germany.
Series Features Include:
- Space saving design: 2.36" wide, 5.12" deep up to 3hp, fits in a 6" deep cabinet up to 15hp
- Scalable functionality
- Ideal for sophisticated speed/torque applications up to 150 hp
- Protection Rating: IP20
- Keypad interface module is sold separately (I5MADK0000000S)
- Zero-clearance mounting (bookshelfing the drive/mounting side by side) with no derating!
- Modular system allows for various product configurations
- Ideal for pumps and fans, conveyors, formers, winders, tool and hoist drives
- 3 set up methods; keypad, smart keypad-app, EASY starter
- i550 available with standard I/O (0S) or Application I/O (1S)
- 200% overload current for short term transient loads, 150% for 60 seconds
- DC-injection braking
- V/f controls (linear, quadratic, VFCeco)
- Sensorless vector control
- i550: has vector control with feedback
- i550: Dynamic braking through brake resistance
- i550: STO - safe torque off
- i550: CANopen, EtherCAT, EtherNet, I/P, Modbus, PROFIBUS, PROFINET
- i550: Internal 24VDC, 100mA supply to power your devices
- i550 supports both PNP/Active High and NPN/Active Low logic
Need More Information?
- Lenze i500 Frequency Inverter Flyer
- Lenze i500 Frequency Inverter Brochure
- Lenze i550 0.25 - 132kW Frequency Inverter Operating Instructions
- Lenze i550 0.25 - 75kW Frequency Inverter Project Planning Guide
- Lenze i550 0.25 - 132kW Frequency Inverter Project Planning Guide
- Lenze i500 Frequency Inverter External Keypad Mounting Instructions
- Lenze i500 Frequency Inverter DIN Rail Mounting Kit Instructions
- Lenze i500 Frequency Inverter Blanking Cover Mounting Instructions
- Lenze i500 Reference Card Inverter Operating Instructions
- Lenze i500 RFI Filters Operating Instructions
- Lenze AC Tech SCM/SCF to i500/SMV inverters Product Migration Guide
