I55AP275C00301000S

I55AP275C00301000S

Alt: i550 Protec Series

$989.29

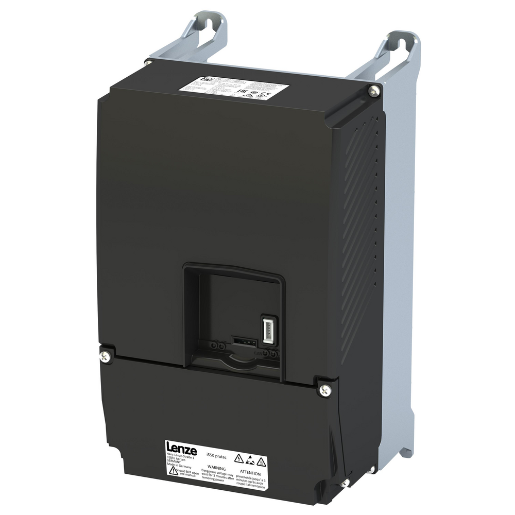

VFD, 7.5kW, 10hp, 230V, 3/PE, No Safety Technology, NEMA 1, IP31, without RFI, without Diagnostic Module, Standard I/O

Weight:
10.80 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

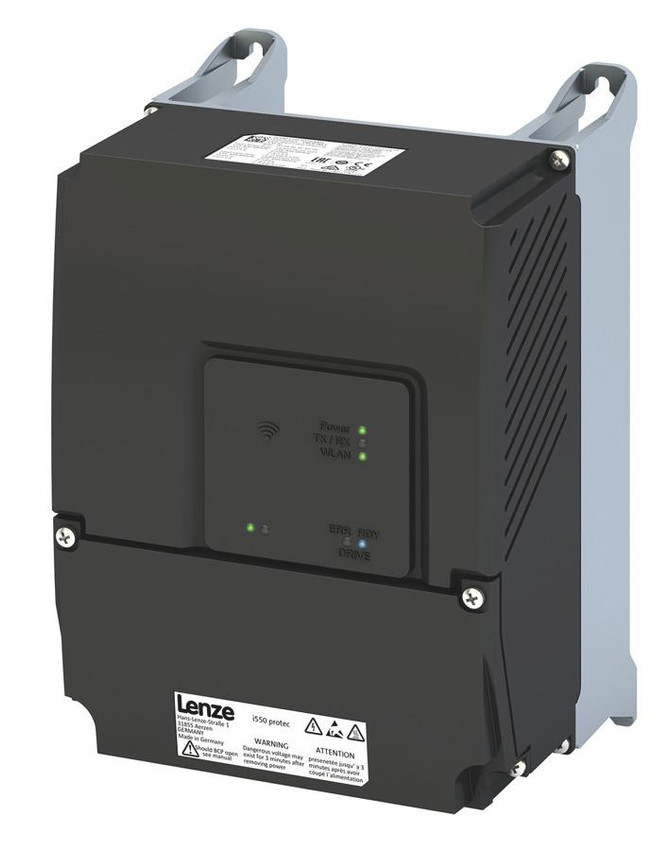

Do you have limited enclosure space or a machine with a modular design? I550 Protec offers a slim design, scalable functionality and is very easy to use.

i550 Protec series features:

  • Currently available from 0.5hp to 30hp, higher ratings coming soon
  • NEMA 1 (IP31 - indoor) or NEMA 4X (IP66, indoor/outdoor) ratings
  • Optional STO (Safe Torque Off)
  • Sensorless vector control for synchronous motors
  • Versions with or without repair switch, keypad, USB or WLAN diagnostic module for easy plug & play operation
  • EPM module available
  • Three available setup methods:
    1. Keypad –recommended option for setting a few key parameters
    2. SMART Keypad App – use for conveyor belts and other simple applications
    3. EASY Starter engineering tool – If functions such as the motor potentiometer or sequence control for a positioning application need to be set, this is the best option
  • Ideal for conveyors, packaging, fan drives and pump systems
  • Networks available CANopen, Modbus RTU, Modbus TCP, IO-Link, EtherCAT, EtherNet/IP, PROFINET
  • This series is the recommended replacement for the discontinued Lenze AC Tech MC Series

Current i500 series drives:

  • I510 – basic IP20 drive for simple applications, 0.25 to 15kW
  • I550 – standard IP20 drive, universally applicable, 0.25 to 132kW
  • I550 Protec – standard IP66/NEMA 4X drive, universally applicable, 0.37 to 22kW (expansion up to 75kW planned)

Series Features Include:

  • The protection level of IP31 (NEMA 1) or IP66 (NEMA 4X) with indoor and outdoor approval, this means hose proof and dust-tight, also allows the use in rough environments
  • First decentral drive in the market with IO-Link Device Interface
  • Intuitive user interface for fast setup and easy navigation by parameter structure
  • EPM module for simple series commissioning and device replacement
  • USB Micro diagnostic interface on board
  • Versions with or without repair switch, with keypad, USB or WLAN diagnostic module for easy plug & play operation
  • Motor Control Options: Servo control (SC-ASM) with feedback, Sensorless vector control for synchronous motors (up to 22 kW), Sensorless vector control (SLVC), Energy saving function (VFC-Eco), V/f characteristic control linear/square-law (VFC plus), V/f characteristic control with feedback
  • Functions: DC-injection braking, Brake management for brake control with low rate of wear, Dynamic braking through brake resistor, S-ramps for smooth acceleration and deceleration, Flying restart circuit, PID controller, DC connection
  • Networks: CANopen, Modbus RTU, Modbus TCP, IO-Link, EtherCAT, EtherNet/IP, PROFINET
