CFW110010T4ON1Z
Alt: 10574736
$1,260.16
VFD, 5hp, 460V, 3 Phase, NEMA 1, 5x12x13", No Pump Genius Software
- Weight:
- 21.00 LBS
- Minimum Purchase:
- 1 unit
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Pump Genius (WEG drives with suffix -PGS):
- Pump Genius can be applied to any pump system that requires constant flow or pressure control.
- Reduce System Component Cost
- Improve System Reliability
- Reduce Maintenance Costs
- Eliminate Costly Control Panels
- Reduce System Energy Requirements
- Reduce Overall Installation Costs
Features Include:
- Built-in inductors on the DC Link
- Space saving in the panel
- Built-in USB port
- Inverter smart cooling system
- Several communication protocols available (Modbus-RTU, Modbus-TCP, Profibus-DP-V1, DeviceNet, CANopen, EtherNet/IP, EtherCAT, PROFINET-IO and BACnet)
- Version with cabinet with degree of protection IP55 (versions with built-in switch-disconnector)
- High precision and reliability in speed and torque control
- Robust hardware
Applications Include:
- Multi Pump Control
- Pumps
- Fans
- Exhausts
- Compressors
- Paper and Cellulose / Wood
- Cement and Mining
- Oil and Gas
- Iron Works and Metallurgy
- Elevation
- Refrigeration
- Sugar and Alcohol
- Process Machine
Technical Information:
- WEG CFW11 Variable Frequency Drive Brochure
- WEG CFW11 Variable Frequency Drive Catalog
- WEG CFW11 NEMA12/IP55 Enclosure Catalog
- WEG CFW11 Frame H Variable Frequency Drive Flyer
- WEG CFW11 Variable Frequency Drive Installation Guide
- WEG CFW11 Models 6-105 A / 200-240V, 3.6-88 A / 380-480 V - Frame A to D User's Manual
- WEG CFW11 Models 242-1141 A / 380-480 V - Frame F to H User's Manual
- WEG CFW11 Models 142-211 A / 220-230 V, 105-211 A / 380-480V - Frame E User's Manual
- WEG CFW11 Models 2.9-804 A / 500-690V - Frame B to H User's Manual
- WEG CFW11 IP54 Addendum to User's Manual
- WEG CFW11 Quick Parameter Reference Manual
- WEG CFW11 Quick Parameter Reference Guide
- WEG CFW11 Pump Genius Pump Process Control Software Brochure
- WEG LV Variable Frequency Drives and Soft Starters Product Catalog
Options Technical Information:
- WEG CFW-11 HMI-01 Installation Manual
- WEG CFW-11 RHMIF-01 Installation Manual
- WEG CFW-11 SoftPLC User's Manual
- WEG CFW-11 Expansion Modules RS-232/RS-485/CAN/PROFIBUS DP/EtherCAT Installation and Configuration Manual
- WEG CFW-11 RS-232 / RS-485 Communication Manual
- WEG CFW-11 IOA-01 and IOB-01 Module Installation and Operation Guide
- WEG CFW-11 IOC-01, IOC-02 and IOC-03 Module Installation and Operation Guide
- WEG CFW-11 IOE-01, IOE-02 and IOE-03 Module Installation and Operation Guide
- WEG CFW-11 MMF-03-PM-1 Memory Module Installation and Operation Guide
- WEG CFW-11 MMF-03-SP Memory Module Installation and Operation Guide
- WEG CFW-11 PLC11-01 Module Programming Manual
- WEG CFW-11 PLC11-01 Module Installation and Operation Guide
- WEG CFW-11 PLC11-02 Module Programming Manual
- WEG CFW-11 PLC11-02 Module Installation and Operation Guide
- WEG CFW-11 PLC11 Module Programming Manual
- WEG CFW-11 Profibus Communication Manual
- WEG CFW-11 DBW03 Dynamic Braking Module User's Manual
- WEG CFW-11 DBW04 Dynamic Braking Module User's Manual
- WEG CFW-11 DeviceNet Communication Manual
- WEG CFW-11 ENC1 and ENC2 Board Installation and Configuration Manual
- WEG CFW-11 Anybus-CC User's Manual
- WEG CFW-11 BACnet User's Manual
- WEG CFW-11 BACnet Firmware Update Guide
- WEG CFW-11 CANopen Communication Manual
- WEG CFW-11 SymbiNet User's Manual
- WEG CFW-11 HVM.01 High Voltage Monitoring Kit Manual
- WEG CFW-11 Shield Kit Guide for the Network Cables Guide
- WEG CFW-11 CONRA-01 Installation Guide
- WEG CFW-11 KN1E-01 / Top Part of the KN1E-02 KIT Installation Guide
- WEG CFW-11 KIP21F/G-01 KIT Installation Guide
- WEG CFW-11 CCS-X - CFW-11/CFW70X ABC Control Cables Installation Guide
- WEG CFW-11 CPCS-D and PCSD-01 Kits Installation Guide
- WEG CFW-11 CPCS-CFW11-1, CPCS-CFW11-2C, PCS1-01 and PCSC-02 Kits Installation Guide
- WEG CFW-11 CPCS-X and PCSX-01 Kits Installation Guide
- WEG CFW-11 ALC 11 Artificial Lift Drive User's Manual
- WEG CFW-11 WSCAN Software User's Manual
- WEG CFW-11 WLP Software User's Manual
- WEG External Power Supply for Control in 24 V-KVDC-CFW11-1 Installation Guide
- WEG CFW-11 Guide for Recommended Fuses
Application Notes and White Papers:
Want to learn more?
- WEG Electric CWF11 Video Guides
- Weg Variable Frequency Drives
- Why is WEG Pump Genius Software desired?
- VFD Temperature Guide
- What VFD should I use with my pump?
- A Simple Explanation: The Difference Between a Soft Starter and a Variable Frequency Drive
- What does VFD really mean?
- I know I need a VFD, but which manufacturer is best?
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$258.30
$34.27
$64.26
$34.02
$37.80
$41.58
$47.25
$56.70
$349.44
$36.86
$47.71
Weg

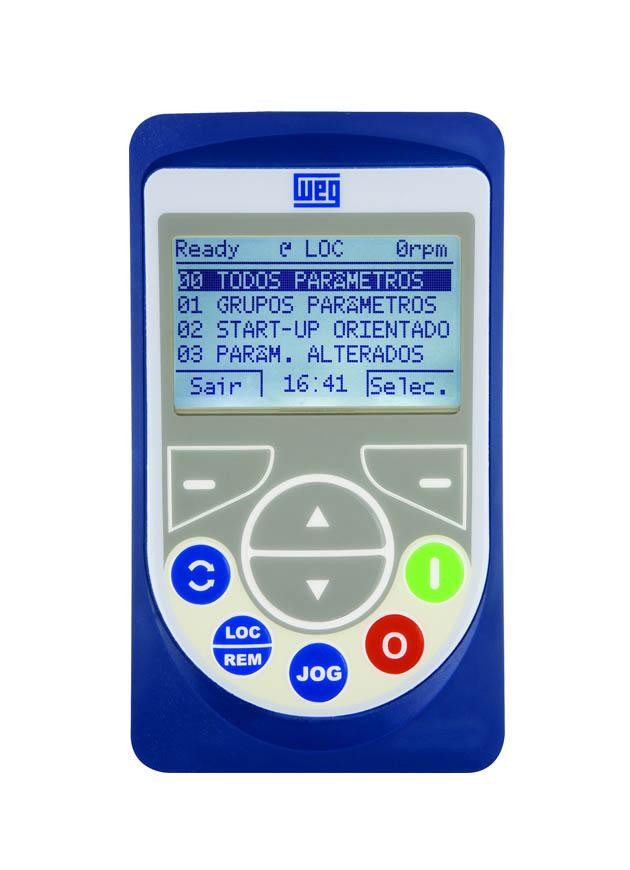

HMI-01
