I51AE137D10V01001S
Alt: i510 Series
$216.78
VFD, 0.5hp, 230/240VAC, Single and 3 Phase Input, CAN/MODBUS, IP20, i510 Inverter
- Weight:
- 1.59 LBS
- Minimum Purchase:
- 1 unit
Description
Lenze Americas is a U.S. based global company that designs and manufacturers inverters, gear motors and mechanical components.
Lenze Americas was formerly known as AC Tech and continues to manufacturer these popular drives. Lenze Americas is headquartered in Massachusetts while Lenze SE corporate headquarters are located in Hamelin, Germany.
Series Features Include:
- Slimline design from 2.36 x 5.12 in (60 mm x 130 mm): fits into every control cabinet
- Scalable functionality
- Ideal for simple speed/torque applications up to 3hp (see i550 for higher hp)
- Keypad module sold separately (I5MADK0000000S)
- Protection Rating: IP20
- Zero-clearance mounting (bookshelfing the drive/mounting side by side) with no derating!
- Modular system allows for various product configurations
- Ideal for pumps and fans, conveyors, formers, winders, tool and hoist drives
- 3 set up methods; keypad, smart keypad-app, EASY starter
- i510 available with no fieldbus (0S) or with integrated CANopen/Modbus-RTU (1S)
- 200% overload current for short term transient loads, 150% for 60 seconds
- DC-injection braking
- V/f controls (linear, quadratic, VFCeco)
- Sensorless vector control
- Digital inputs/outputs (5/1), analog inputs/outputs (2/1)
- This drive does not do positioning
- i510 supports PNP/Active High logic only (i550 supports both PNP/Active High and NPN/Active Low logic)
Technical Information:
- Lenze i500 Frequency Inverter Flyer
- Lenze i500 Frequency Inverter Brochure
- Lenze i510 0.25 - 15kW Frequency Inverter Operating Instructions
- Lenze i510 0.37 - 20kW Frequency Inverter Mounting and Switch-On Instructions
- Lenze i510 Frequency Inverter Commissioning Manual
- Lenze i500 Frequency Inverter External Keypad Mounting Instructions
- Lenze i500 Frequency Inverter DIN Rail Mounting Kit Instructions
- Lenze i500 Frequency Inverter Blanking Cover Mounting Instructions
- Lenze i500 Reference Card Inverter Operating Instructions
- Lenze i500 RFI Filters Operating Instructions
- Lenze AC Tech SCM/SCF to i500/SMV inverters Product Migration Guide
Accessories
Available Now!
Available Now!
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$17.39
Lenze
I5MADK0000000S
Keypad for i510 and i550 Drives, You Can Use Optional Keypad, Lenze Smart Keypad app (download) or the EASY Starter for Diagnostics and Parameter Selection/Adjustments.
$56.79
$40.57
$130.42
Lenze
EZAEDE1001

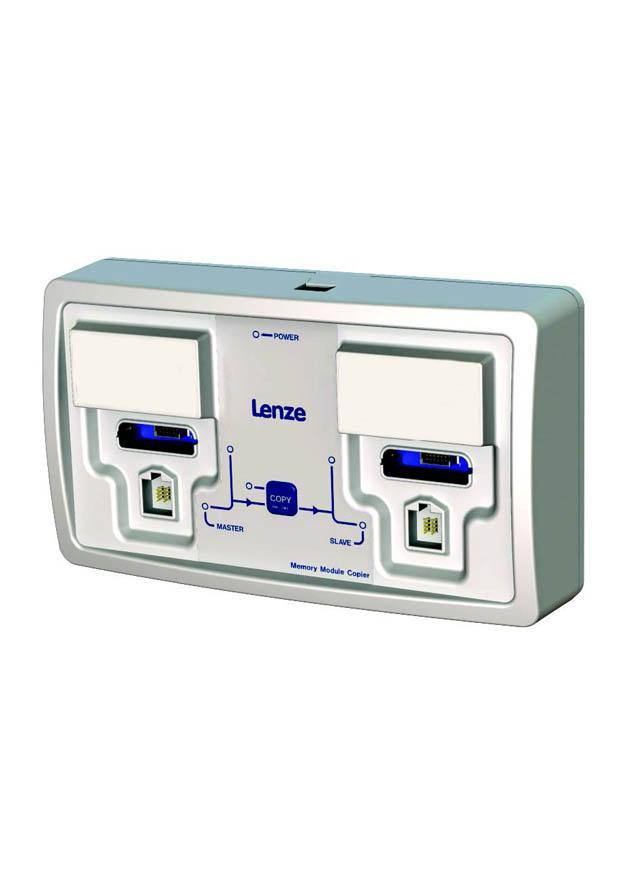

Memory Module Copier, Please Review Product Information Carefully for your Specific Application
$329.56
Lenze
EZAMBHXM014/M
Motor Shield Plate Kit, (.33hp, - 3hp) 5 Pack, Compatible with i510 and i550 Drives
$22.07
Lenze
I5MADR0000000S
External Keypad Mount for i510 and i550 Drives, No Cable, Optional Keypad (Part Number I5MADK0000000S) Must be Ordered Separately
$103.46
Lenze
I5MADR0000001S
External Keypad Mount for i510 and i550 Drives, 3m Cable, Optional Keypad (Part Number I5MADK0000000S) Must be Ordered Separately
$146.06
