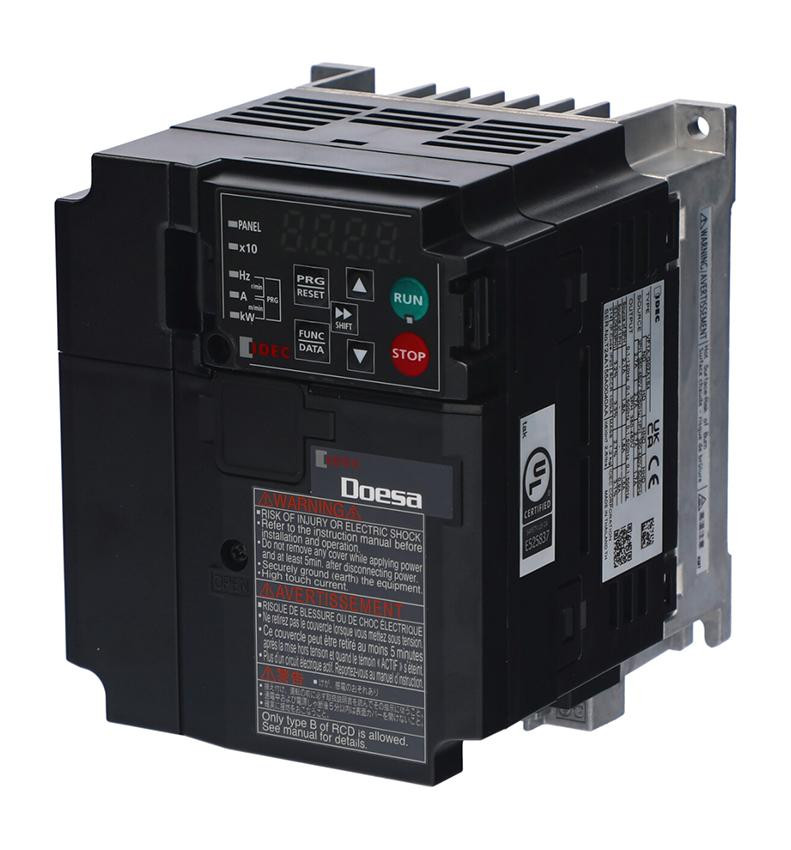

VF1A-G05A5S4
Alt: Doesa VF1A Series
$429.19
VFD, 5.5 Amp, ND: 3hp (2.2kW) / HD: 3hp, (2.2kW), Three Phase, 380-480VAC (with AVR), 50/60Hz, Torque Control, STO, and RS-485 Modbus Communication, IP20, Fan Cooling, Doesa VF1A Series
- Weight:
- 1.50 LBS
- Minimum Purchase:
- 1 unit
Description
IDEC has introduced their Doesa VF1A Series of high performance AC drives that include many enhanced features as standard.
- Includes torque control, STO, customizable logic, PID, RS-485 Modbus communication
- 3 year warranty
- Available from 1 to 75hp
Features Include:
- Amp Rating: 5.5 A
- Horsepower: 3 HP
- Main Power Supply: Three-phase, 380 to 480V
- Dimensions (W x H x D): 110mm (4.33 in) x 130mm (5.12 in) x 143mm (5.63 in)
- Voltage/Frequency Variations: Voltage: +10 to -15% (Voltage unbalance:2% or less *8, Frequency: +5 to -5%)
- Installation Location: Indoors
- Communication: PID, Mechanical Brake control, Torque control, Customizable Logic, STO functional safety, and RS-485 Modbus
Technical Information:
- IDEC Doesa VF1A Series AC Drive Technical Brochure
- IDEC Doesa VF1A Series AC Drive Quick Instruction Manual
- IDEC Doesa VF1A Series AC Drive Full Instruction Manual
- IDEC Doesa VF1A Series AC Drive User's Manual
- IDEC Doesa VF1A Series RS-485 Communication User's Manual
Accessories Technical Data:
- IDEC VFD Doesa-Loader Inverter Support Software Instruction Manual
- IDEC Doesa Remote Keypad VF1A-PH1 Instruction Manual
- IDEC Doesa PG Interface Card VF1A-PG1 Instruction Manual
- IDEC Doesa PG Interface Card VF1A-PG3 Instruction Manual
- IDEC Doesa Option Attachment VF1A-ADP1 Instruction Manual
- IDEC Doesa Option Attachment VF1A-ADP2/VF1A-ADP3 Instruction Manual
- IDEC Doesa Digital Input/Output Interface Card VF1A-DIO Instruction Manual
- IDEC Doesa Analog Input/Output Interface Card VF1A-AIO Instruction Manual
Whitepapers and Application Notes:
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
IDEC
VF1A-DIO
Digital I/O Interface Card, DI: Frequency Set-Point can be given by 8, 12 bits & BCD Code (0 to 99.9/0 to 999). Extended 13 Digital Inputs available by mounting card in the VFD. DO: Monitoring with 8-bit Binary Code & the Digital Outp
$165.38
IDEC
VF1A-AIO
Analog I/O Interface Card, Doesa VF1A Series. It enables the inverter to input analog set-points to the inverter and output analog monitors from the inverter.
$287.44
IDEC
VF1A-RS485
RS-485 Communication Card, Doesa VF1A Series. This Card provides two RJ-45 Connectors for Multi-Drop Connection.
$70.88
IDEC
VF1A-PG1
PG Interface (5V) Card, Doesa VF1A Series. Speed control, position control and synchronous drive are available mounting this card in the inverter. Open collector (Pull-up resistor: 620?) : 30kHz. Complementary (Totem-pole push-pull): 30kH
$106.31
IDEC
VF1A-PG3
PG Interface (12V/15V) Card, Doesa VF1A Series. Speed control, position control and synchronous drive are available mounting this card in the inverter. Open collector (Pull-up resistor: 2350?): 30kHz. Complementary (Totem-pole push-pull):
$102.38
IDEC

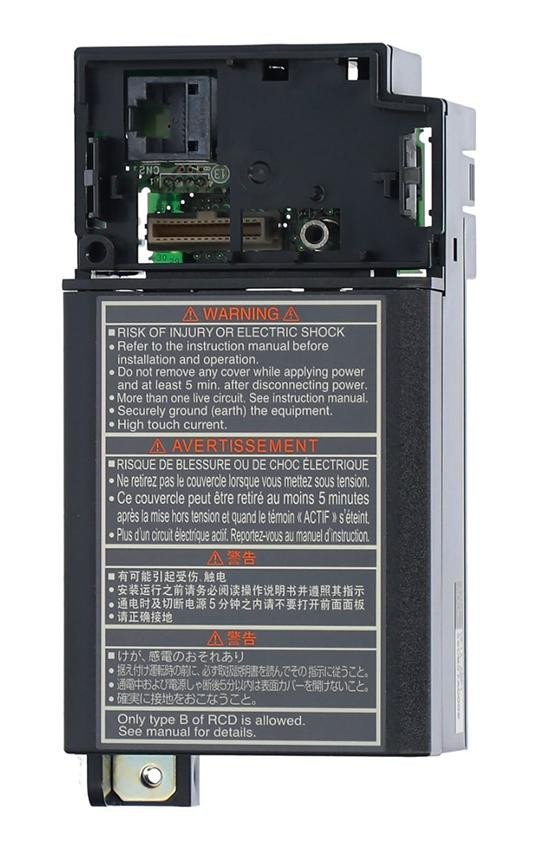

VF1A-ADP1
Mounting Adapter used with VF1A-02A1 to VF1A-44A0 for Optional Communication Card, Doesa VF1A Series
$35.44
