A510-6040-C3-UE

January 2020: The A510 series has new features added! The part numbers will transition from a -U to a -UE as stock is used.

The new -UE version has enhanced features that include:

• Upgraded CPU design on control board
• Frames 2 through 5 will have a DC bus connection P1/P2 added for customers to install a DC reactor - these models include 230V, 5 to 40hp and 460V, 5 to 50hp
• Expansion slot for optional I/O and communication cards
• Ability to power on control board with 24VDC optional expansion card
• Removable control wiring terminal strip
• A510 keypad will reflect F510 keypad layout

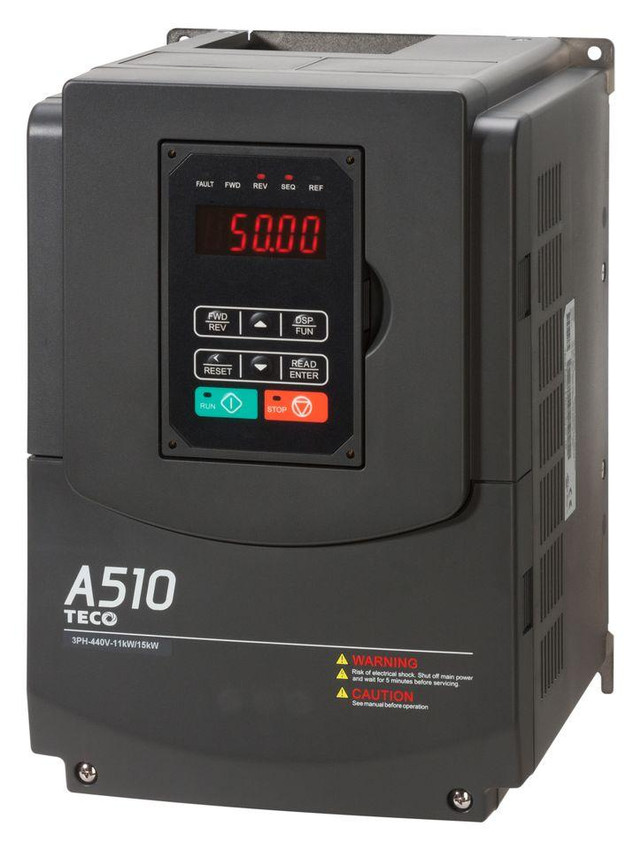

Our TECO A510 is a versatile, high performance AC drive that can control demanding motor driven applications. This highly flexible drive has multiple control modes to cover almost every motor driven application:

• V/F with constant and variable torque settings
• V/F mode with PG encoder feedback
• Sensorless vector
• Closed loop vector

The Teco A510 comes with the following power and protection ratings:

• 1 to 40hp A510 drives, 230, 460 or 690V are IP20/NEMA 1
• 40 to 75hp, 460V and 50 to 75hp, 690V are also IP20/NEMA 1
• 50 to 100hp, 230V are IP00, NEMA 1 kit is available
• 100 to 200hp, 460V are IP00, NEMA 1 kit is available
• 100 to 250hp, 690V are IP00, NEMA 1 kit is available

Series Features Include:

• Control Modes for V/F, V/F with PG feedback, Sensorless Vector, and Closed Loop Vector
• Simple PLC Function Built-in
• Advanced Regenerative Load Handling Capability
• 1 to 100 HP (CT), 230V, 50/ 60Hz, 3-Phase
• 1 to 125 HP(VT), 230V, 50/ 60Hz,3-Phase
• 1 to 400 HP (CT), 460V, 50/ 60Hz,3-Phase
• 1 to 400 HP (VT), 460V, 50/ 60Hz,3-Phase
• 1 to 10 HP (CT/VT), 575V, 50/ 60Hz,3-Phase
• 15 to 250 HP (CT), 690V, 50/ 60Hz,3-Phase
• 15 to 270 HP (VT), 690V, 50/ 60Hz,3-Phase
• Conformal Coating on PC Boards
• LCD Keypad that is Remotely Mountable
• Flexible Input/ Output Configurations that Accept Normally Open or Normally Closed Signals
• 0 to 599 Hz Speed Range
• PID Control
• Diagnostics Registers for Troubleshooting
• Built-in RS485 Modbus Protocol
• Enhanced Design for Quiet Motor Operation
• Pulse Output and Pulse Follower
• Select Between Closed-Loop Speed and Torque Control in Vector Mode
• UL, cUL, and CE approved

Technical Information:

• Teco Westinghouse A510-6040-C3-U Datasheet
• Teco Westinghouse A510 Heavy Duty AC Drive Brochure
• Teco Westinghouse A510 Heavy Duty AC Drive Technical Specifications
• Teco Westinghouse A510 Heavy Duty AC Drive Instruction Manual
• Teco Westinghouse A510 Heavy Duty AC Drive Start-Up and Installation Manual
• Teco Westinghouse A510 Heavy Duty AC Drive Quick Start Guide

Options Technical Information:

• Teco Westinghouse 510 Series Braking Unit User Manual
• Teco Westinghouse 510 Series Copy Module Instruction Manual
• Teco Westinghouse Power Expansion Card Installation Manual
• Teco Westinghouse CANopen Communication Module Instruction Manual
• Teco Westinghouse Communication Module Addendum
• Teco Westinghouse DeviceNet Communication Module User Manual
• Teco Westinghouse PLC Addendum User Manual
• Teco Westinghouse 510 Series Profibus-DP User Manual

Application Notes:

• Teco Westinghouse A510 Series Technical Notice
