LSLV0300S100-4COFDS
Alt: 6031001300
$3,153.83

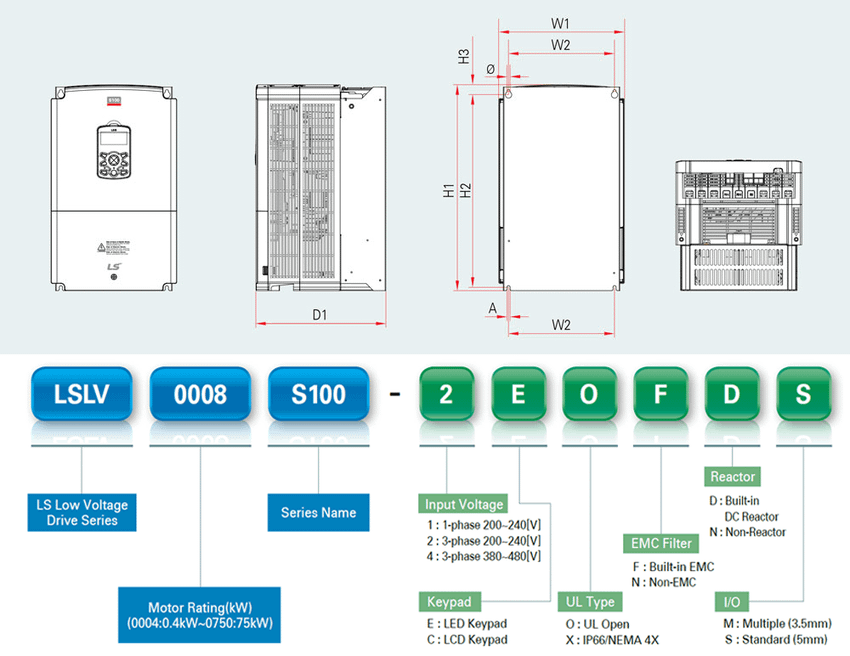

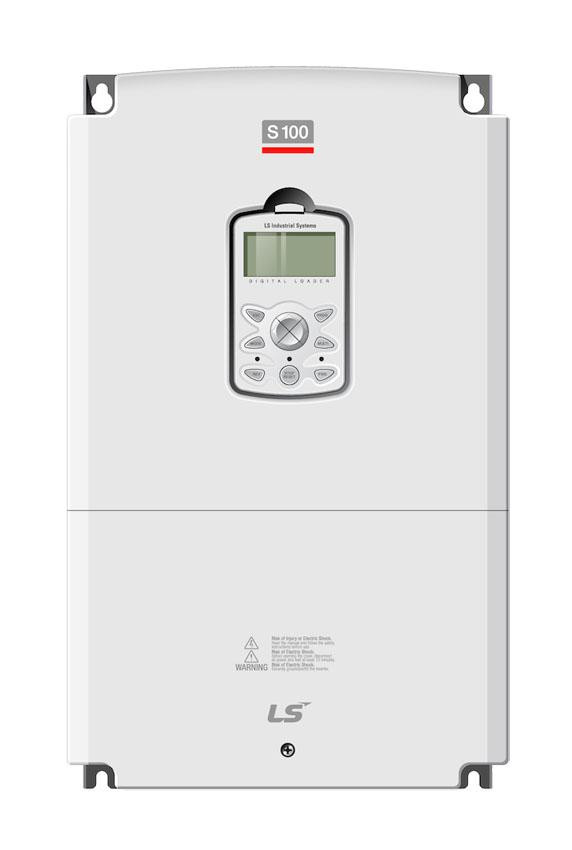

VFD, 40hp, 380-480VAC, 3 Phase, 61A, IP20, EMC Filter, DC Reactor, 10.83x17.72x11.18"
- Weight:
- 78.33 LBS
- Minimum Purchase:
- 1 unit
Description

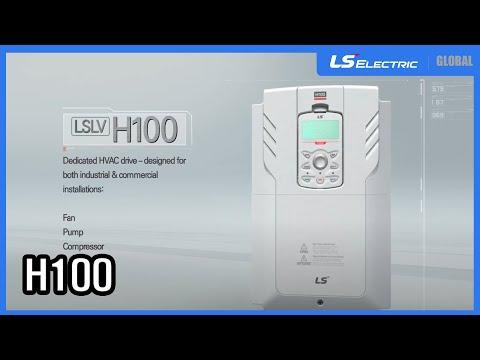

The LSIS H100 series is a true HVAC drive. Whether you are a system designer or the end user, you will appreciate the standard configuration.
Can your current HVAC drive operate in a pollution degree 3 environment without the expense of optional conformal coating? Our H100 can.
The H100 comes with 5 relay outputs standard... eliminates the need for option cards that are sometimes required for certain installations.
Features include:
- Damper control, broken pipe, fire mode and a payback counter
- LCD keypad HOA standard
- Side by side installation
- Heatsink out the back (flange option)
- Built-in EMC filter (optional for 480V)
- BACnet, Modbus-RTU, Metasys N2 communication protocol as standard
- Fan and pump drive up to 800hp
H100 Series Features Include:
- HVAC/fan and pump drive
- 1 phase UL rating for 230V & 480V
- Built-in EMC filter (option for 480V)
- BACnet, Modbus-RTU, Metasys N2 & communication protocol standard
- UL Plenum rated
- Side by side installation
- Heatsink out the back (flange mount)
- LCD keypad designed just for HVAC/fan and pump apps
- Many features for HVAC/fan and pump applications
Technical Information:
- LS Electric H100 Series Fan and Pump Drive Catalog
- LS Electric H100 Series Fan and Pump Drive User Manual
- LS Electric H100 Series Troubleshooting Manual
- LS Electric VFD Quick Start Guide
- LS Electric Low-Voltage Drive Solution Catalog
- LS Electric Smart Factory Automation Solutions Brochure
Options Technical Information:
- LS Electric SV-iS7/LSLV-H100 Series NEMA4X/IP66 Keypad Mount Option User Manual
- LS Electric H100 Series Disconnect Switch Option Flyer
- LS Electric H100 Series Disconnect Switch Installation Guide
- LS Electric LSLV-H100 Series Extension I/O User Manual
- LS Electric LSLV-H100 Series Extension I/O2 User Manual
- LS Electric S100/H100 Series Conduit Option Installation Manual
- LS Electric S100/H100 Series Flange Option Installation Manual
- LS Electric Dynamic Braking Resistor Flyer
- LS Electric Dynamic Braking Resistor User Manual
Application Notes:
