CFW110058T4ON1Z
Alt: 10574743
$4,245.12

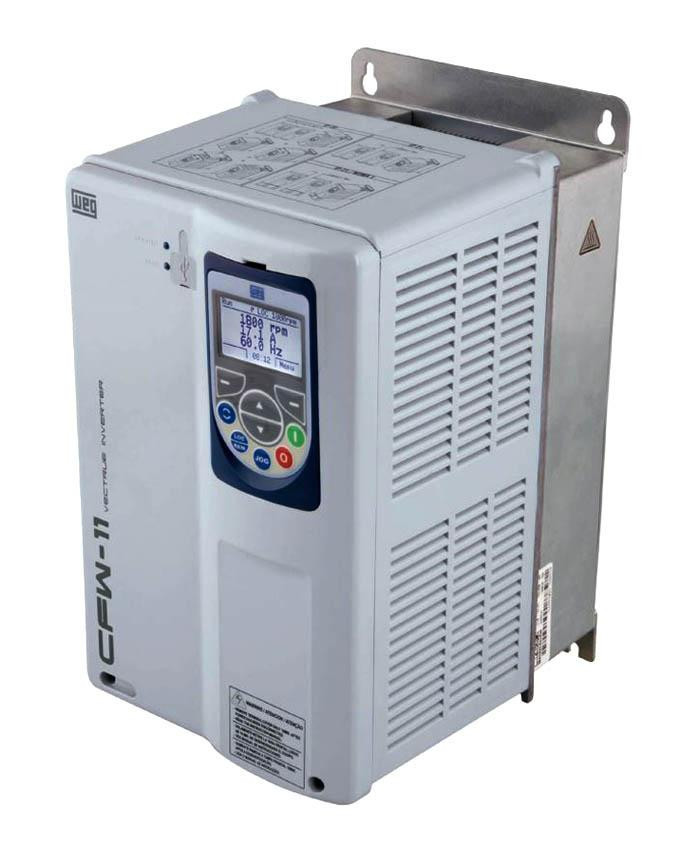

VFD, 40hp, 460V, 3 Phase, NEMA 1, 5x26.5x16", No Pump Genius Software
- Weight:
- 55.00 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Specifications
Alternate Part Number
10574743
Horsepower
40 hp
Housing/Enclosure
NEMA 1
Input Phase
3 Phase
Input Voltage
400-480V, 3 Phase
Outdoor Rated
No
Output
3 Phase Output
Series
CFW11 Series
Options
Enclosed, Keypad
STO (Safe Torque Off)
No
Torque Load
Constant/Variable (CT/VT)
Drives - Type of Drive
High Performance
Warranty
18 Months
Weight
55
Pump Genius (WEG drives with suffix -PGS):
- Pump Genius can be applied to any pump system that requires constant flow or pressure control.
- Reduce System Component Cost
- Improve System Reliability
- Reduce Maintenance Costs
- Eliminate Costly Control Panels
- Reduce System Energy Requirements
- Reduce Overall Installation Costs
Features Include:
- Built-in inductors on the DC Link
- Space saving in the panel
- Built-in USB port
- Inverter smart cooling system
- Several communication protocols available (Modbus-RTU, Modbus-TCP, Profibus-DP-V1, DeviceNet, CANopen, EtherNet/IP, EtherCAT, PROFINET-IO and BACnet)
- Version with cabinet with degree of protection IP55 (versions with built-in switch-disconnector)
- High precision and reliability in speed and torque control
- Robust hardware
Applications Include:
- Multi Pump Control
- Pumps
- Fans
- Exhausts
- Compressors
- Paper and Cellulose / Wood
- Cement and Mining
- Oil and Gas
- Iron Works and Metallurgy
- Elevation
- Refrigeration
- Sugar and Alcohol
- Process Machine
Downloads
- WEG CFW11 Variable Frequency Drive Brochure
- WEG CFW11 Variable Frequency Drive Catalog
- WEG CFW11 NEMA12/IP55 Enclosure Catalog
- WEG CFW11 Frame H Variable Frequency Drive Flyer
- WEG CFW11 Variable Frequency Drive Installation Guide
- WEG CFW11 Models 6-105 A / 200-240V, 3.6-88 A / 380-480 V - Frame A to D User's Manual
- WEG CFW11 Models 242-1141 A / 380-480 V - Frame F to H User's Manual
- WEG CFW11 Models 142-211 A / 220-230 V, 105-211 A / 380-480V - Frame E User's Manual
- WEG CFW11 Models 2.9-804 A / 500-690V - Frame B to H User's Manual
- WEG CFW11 IP54 Addendum to User's Manual
- WEG CFW11 Quick Parameter Reference Manual
- WEG CFW11 Quick Parameter Reference Guide
- WEG CFW11 Pump Genius Pump Process Control Software Brochure
- WEG LV Variable Frequency Drives and Soft Starters Product Catalog
