Dart Controls
SA-STOK-WO
5K Ohm Speed Pot Kit, 8.75" Leads, Knob, & Dial, Use When You Need an Input Device to Set Speed in VFD Applications, Ideal for Panel Mounting
$35.00
A510-4040-C3-UE
Alt: This is the Latest Version of A510-4040-C3-U
$2,372.76

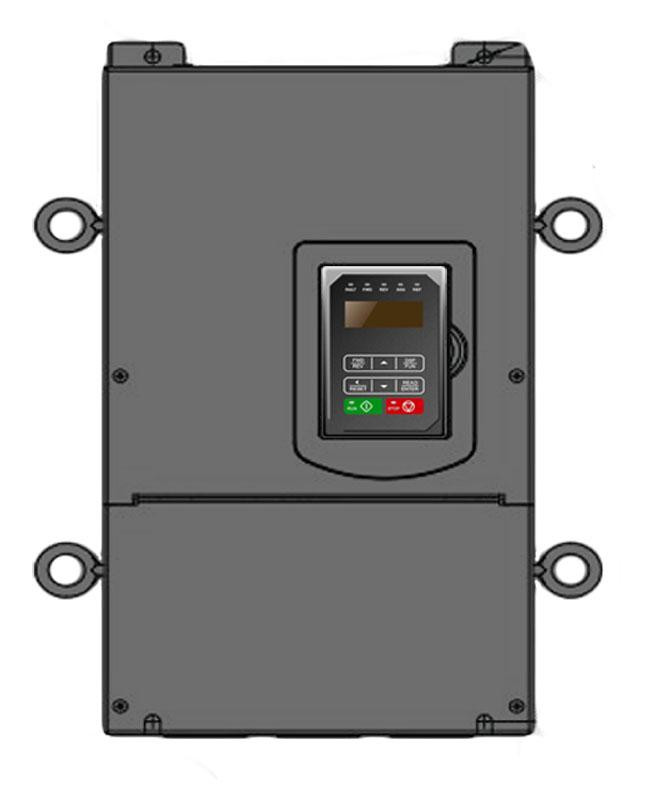

VFD, 40/50hp, 60/73A, CT/VT, 460VAC, 3 Phase, NEMA 1 Enclosure, Frame Size 5, A510 Series Heavy Duty
- Weight:
- 77.00 LBS
- Minimum Purchase:
- 1 unit
Description
TECO-Westinghouse manufacturers motors, variable frequency drives and soft starters.
In 1995 TECO acquired all Westinghouse Electric Corp. shares and in 1997 the name was officially changed to TECO-Westinghouse Motor Company (TWMC). They are headquartered in Round Rock, Texas.
After acquiring Motovario, TECO also has a line of gearmotors.
Series Features Include:
- Control Modes for V/F, V/F with PG feedback, Sensorless Vector, and Closed Loop Vector
- Simple PLC Function Built-in
- Advanced Regenerative Load Handling Capability
- 1 to 100 HP (CT), 230V, 50/ 60Hz, 3-Phase
- 1 to 125 HP(VT), 230V, 50/ 60Hz,3-Phase
- 1 to 400 HP (CT), 460V, 50/ 60Hz,3-Phase
- 1 to 400 HP (VT), 460V, 50/ 60Hz,3-Phase
- 1 to 10 HP (CT/VT), 575V, 50/ 60Hz,3-Phase
- 15 to 250 HP (CT), 690V, 50/ 60Hz,3-Phase
- 15 to 270 HP (VT), 690V, 50/ 60Hz,3-Phase
- Conformal Coating on PC Boards
- LCD Keypad that is Remotely Mountable
- Flexible Input/ Output Configurations that Accept Normally Open or Normally Closed Signals
- 0 to 599 Hz Speed Range
- PID Control
- Diagnostics Registers for Troubleshooting
- Built-in RS485 Modbus Protocol
- Enhanced Design for Quiet Motor Operation
- Pulse Output and Pulse Follower
- Select Between Closed-Loop Speed and Torque Control in Vector Mode
- UL, cUL, and CE approved
Technical Information:
- Teco Westinghouse A510-4040-C3-UE Datasheet
- Teco Westinghouse A510 UE Heavy Duty AC Drive Brochure
- Teco Westinghouse A510 Heavy Duty AC Drive Technical Specifications
- Teco Westinghouse A510 Heavy Duty AC Drive Instruction Manual
- Teco Westinghouse A510 Heavy Duty AC Drive Start-Up and Installation Manual
- Teco Westinghouse A510 Heavy Duty AC Drive Quick Start Guide
Options Technical Information:
- Teco Westinghouse 510 Series Braking Unit User Manual
- Teco Westinghouse 510 Series Copy Module Instruction Manual
- Teco Westinghouse Power Expansion Card Installation Manual
- Teco Westinghouse CANopen Communication Module Instruction Manual
- Teco Westinghouse Communication Module Addendum
- Teco Westinghouse DeviceNet Communication Module User Manual
- Teco Westinghouse PLC Addendum User Manual
- Teco Westinghouse 510 Series Profibus-DP User Manual
Application Notes:
Want to learn more?
Accessories
Available Now!
Available Now!
Available Now!
Available Now!
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Teco Westinghouse

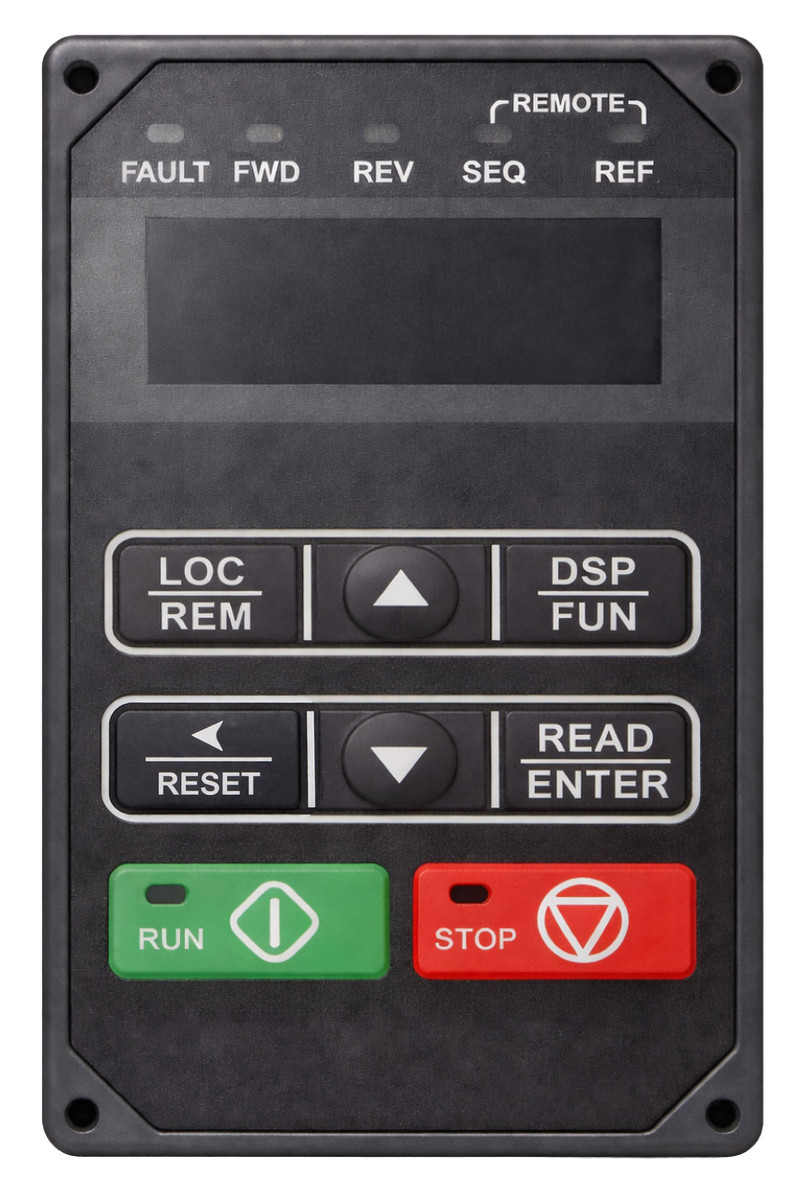

JN5-OP-A01
LED Remote Keypad, Optional; Use with A510/F510 Drives, Requires Cable Sold Separately (JN5-CB-xxM), A510/F510 Drives Include Standard LCD Operator Keypad.
$42.53
$14.18
$73.71
$90.72
$79.38
Teco Westinghouse
JN5-CB-05M
Extension Cable, 5m, for Remote Mount Keypad, Use with A510, F510, L510, E510 Series Drives
$19.85
Teco Westinghouse
JN5-CM-PDP
Profibus DP Communication External Module, Use with A510, F510, L510, E510 Series Drives
$198.45
$45.36
Teco Westinghouse
JN5-CU
Copy Module for Fast Upload/Download of Parameters, Use with A510/F510/L510/E510 Series Drives
$53.87
Teco Westinghouse
JN5-CB-01M
Extension Cable, 1m, for Remote Mount Keypad, Use with A510, F510, L510, E510 Series Drives
$14.18
Teco Westinghouse
JN5-CB-02M
Extension Cable, 2m, for Remote Mount Keypad, Use with A510, F510, L510, E510 Series Drives
$15.31
Teco Westinghouse
JN5-CB-03M
Extension Cable, 3m, for Remote Mount Keypad, Use with A510, F510, L510, E510 Series Drives
$17.01
$153.09
