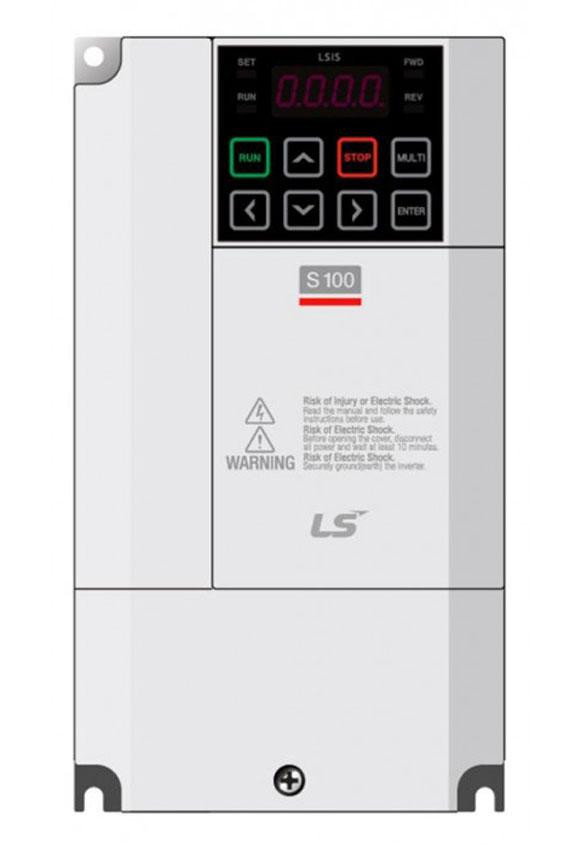

LSLV0022S100-4EOFNS
Alt: 6031007400
$638.79

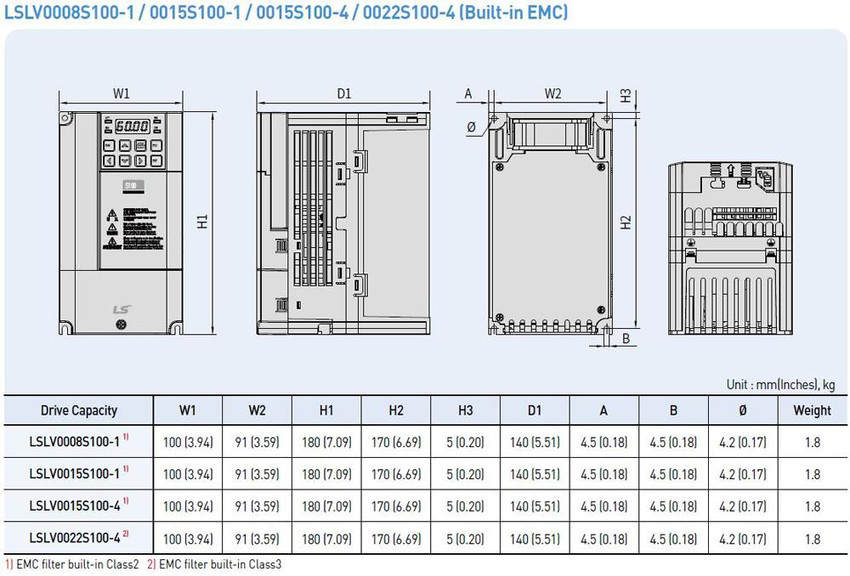

VFD, 3hp, 380-480VAC, 3 Phase, 5.5A, IP20, EMC Filter, No DC Reactor, 3.94x7.09x5.51"
- Weight:
- 3.97 LBS
- Minimum Purchase:
- 1 unit
Description
The S100 series is a general purpose industrial drive with V/F and sensorless vector control available from 1/2 to 100 hp. This drive is dual rated for constant torque and variable torque.
Advanced features of the S100 include power loss ride through, STO (safe off relay), PID control and a number of communication options.
This series also has heatsink out the back which is also called a flange mount for external heatsink (please note weather stripping is not included). This creates a NEMA 12 dust tight enclosure with the heat on the outside which means you might not need to air condition the enclosure.
This series is also available in a NEMA 4X enclosure from 1/2 to 30 hp.
High-Performance Standard AC Drive S100! from LSIS on Vimeo.
Marshall Wolf Automation is your authorized LSIS (formerly LG Industrial Systems) distributor!
Series Features Include:
- Single phase, 230V, 0.5 to 3hp / Three phase, 230V, 0.5 to 20hp / Three phase, 480V, 0.5 to 100 hp
- Protection Degrees: IP20/UL Open (Default), UL Enclosed type 1 (Option), IP66/NEMA 4X (Option)
- Control Methods: V/f, Slip compensation, Sensorless vector
- Power loss ride through
- Dual rated for constant or variable torque
- Side by side installation
- Heatsink out the back (flange option)
- Operation Functions: PID control, 3-wire operation, Frequency limit, Second function, Anti-forward and reverse direction rotation, Commercial transition, Speed search, Power braking, Leakage reduction, Up-down operation, DC braking, Frequency jump, Slip compensation, Automatic restart, Automatic tuning, Energy buffering, Flux braking, Fire Mode
Technical Information:
- LS Electric S100 Series Standard AC Drive Catalog
- LS Electric S100 Series Standard AC Drive User Manual
- LS Electric S100 Series Standard AC Drive Extended User Manual
- LS Electric S100 Series Standard AC Drive Web Control Manual
- LS Electric S100 Series 0.5~30HP Quick Start Reference
- LS Electric S100 Series 40~100HP Quick Start Reference
- LS Electric S100 Series Standard AC Drive Troubleshooting Manual
- LS Electric Low-Voltage Drive Solution Catalog
- LS Electric Smart Factory Automation Solutions Brochure
Options Technical Information:
- LS Electric S100 Series CANopen Module User Manual
- LS Electric S100 Series EtherCAT Module User Manual
- LS Electric S100-4X Ethernet Card Installation Guide
- LS Electric S100 Series Ethernet Module User Manual
- LS Electric S100 Series Extension I/O Module User Manual
- LS Electric S100 Series Profibus-DP Module User Manual
- LS Electric S100 Series PROFInet Module User Manual
- LS Electric S100 Series Firmware Flash Procedure Guide
- LS Electric S100, H100, and iS7 User Group and Locked Parameters Setup Guide
- LS Electric S100/H100 Series Conduit Option Installation Manual
- LS Electric S100/H100 Series Flange Option Installation Manual
- LS Electric iS7/C100/S100/H100 Series Analog Input Wiring Guide
- LS Electric Dynamic Braking Resistor Flyer
- LS Electric Dynamic Braking Resistor User Manual
