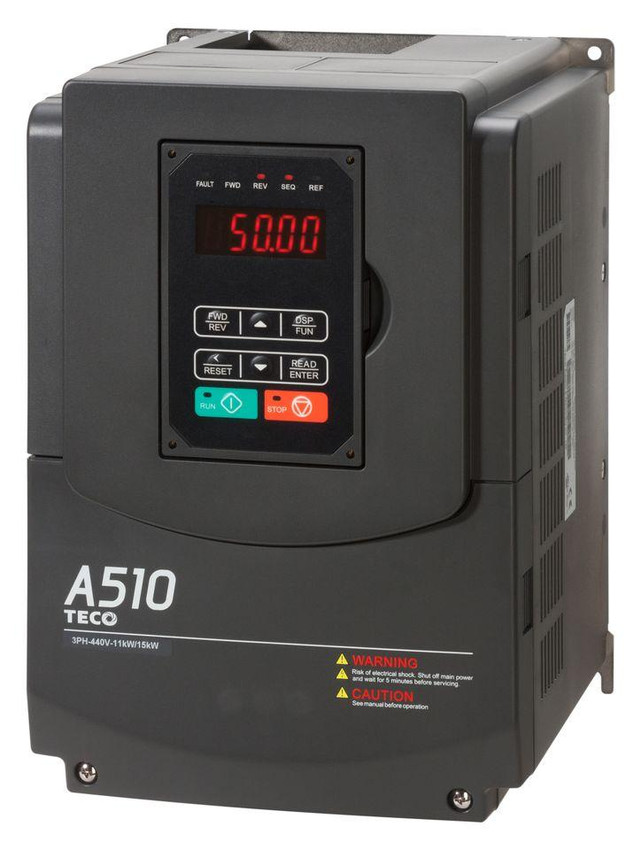

A510-4030-C3-UE
Alt: This is the Latest Version of A510-4030-C3-UE
$1,787.40

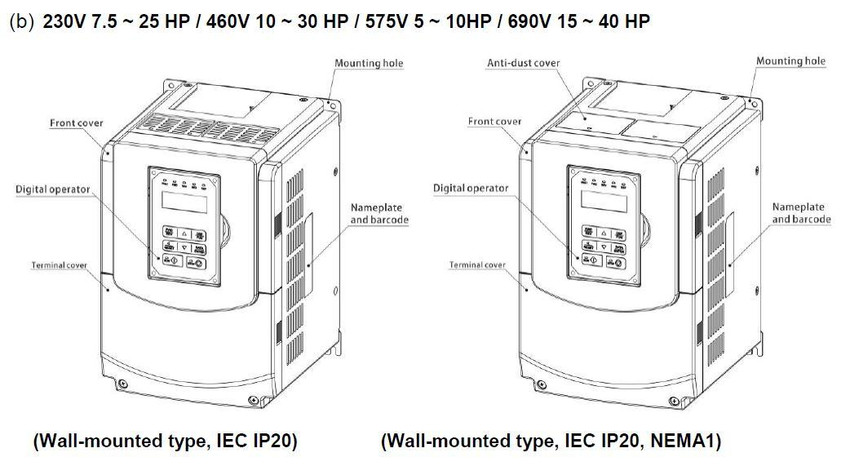

VFD, 30hp, 460VAC, 45A, 3 Phase, NEMA 1 Enclosure, LCD Keypad, 14.17H x 10.43W x 8.86D"
- Weight:
- 22.00 LBS
- Minimum Purchase:
- 1 unit
Description
TECO-Westinghouse manufacturers motors, variable frequency drives and soft starters.
In 1995 TECO acquired all Westinghouse Electric Corp. shares and in 1997 the name was officially changed to TECO-Westinghouse Motor Company (TWMC). They are headquartered in Round Rock, Texas.
After acquiring Motovario, TECO also has a line of gearmotors.
Specifications
Alternate Part Number
This is the Latest Version of A510-4030-C3-UE
Horsepower
30 hp
Housing/Enclosure
IP20 (NEMA 1 Kit Available)
Input Phase
3 Phase
Input Voltage
400-480V, 3 Phase
Outdoor Rated
No
Output
3 Phase Output
Options
Enclosed, Keypad
STO (Safe Torque Off)
No
Torque Load
Constant/Variable (CT/VT)
Drives - Type of Drive
High Performance
Warranty
3 Years
Series
A510 Series
Weight
22
Quantity
2
Series Features Include:
- Control Modes for V/F, V/F with PG feedback, Sensorless Vector, and Closed Loop Vector
- Simple PLC Function Built-in
- Advanced Regenerative Load Handling Capability
- 1 to 100 HP (CT), 230V, 50/ 60Hz, 3-Phase
- 1 to 125 HP(VT), 230V, 50/ 60Hz,3-Phase
- 1 to 400 HP (CT), 460V, 50/ 60Hz,3-Phase
- 1 to 400 HP (VT), 460V, 50/ 60Hz,3-Phase
- 1 to 10 HP (CT/VT), 575V, 50/ 60Hz,3-Phase
- 15 to 250 HP (CT), 690V, 50/ 60Hz,3-Phase
- 15 to 270 HP (VT), 690V, 50/ 60Hz,3-Phase
- Conformal Coating on PC Boards
- LCD Keypad that is Remotely Mountable
- Flexible Input/ Output Configurations that Accept Normally Open or Normally Closed Signals
- 0 to 599 Hz Speed Range
- PID Control
- Diagnostics Registers for Troubleshooting
- Built-in RS485 Modbus Protocol
- Enhanced Design for Quiet Motor Operation
- Pulse Output and Pulse Follower
- Select Between Closed-Loop Speed and Torque Control in Vector Mode
- UL, cUL, and CE approved
Downloads
- Teco Westinghouse A510-4030-C3-UE Datasheet
- Teco Westinghouse A510 Heavy Duty AC Drive Brochure
- Teco Westinghouse A510 Heavy Duty AC Drive Technical Specifications
- Teco Westinghouse A510 Heavy Duty AC Drive Instruction Manual
- Teco Westinghouse A510 Heavy Duty AC Drive Start-Up and Installation Manual
- Teco Westinghouse A510 Heavy Duty AC Drive Quick Start Guide
