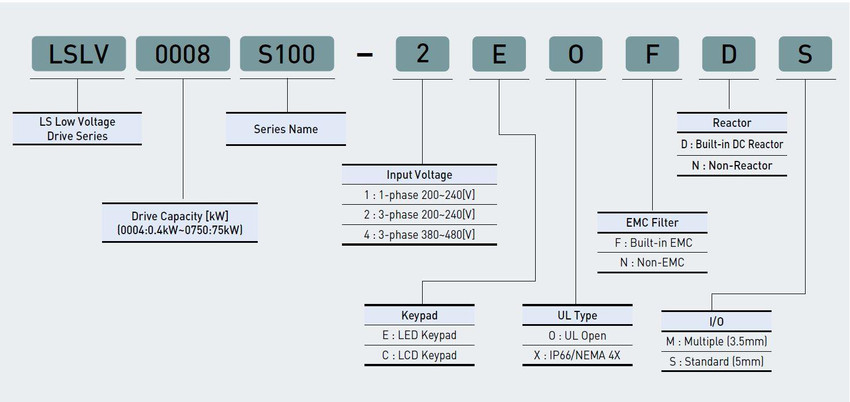

LSLV0220S100-4EOFNS

The S100 series is a general purpose industrial drive with V/F and sensorless vector control available from 1/2 to 100 hp. This drive is dual rated for constant torque and variable torque.

Advanced features of the S100 include power loss ride through, STO (safe off relay), PID control and a number of communication options.

This series also has heatsink out the back which is also called a flange mount for external heatsink (please note weather stripping is not included). This creates a NEMA 12 dust tight enclosure with the heat on the outside which means you might not need to air condition the enclosure.

This series is also available in a NEMA 4X enclosure from 1/2 to 30 hp.

High-Performance Standard AC Drive S100! from LSIS on Vimeo.

Marshall Wolf Automation is your authorized LSIS (formerly LG Industrial Systems) distributor!

Series Features Include:

• Single phase, 230V, 0.5 to 3hp / Three phase, 230V, 0.5 to 20hp / Three phase, 480V, 0.5 to 100 hp
• Protection Degrees: IP20/UL Open (Default), UL Enclosed type 1 (Option), IP66/NEMA 4X (Option)
• Control Methods: V/f, Slip compensation, Sensorless vector
• Power loss ride through
• Dual rated for constant or variable torque
• Side by side installation
• Heatsink out the back (flange option)
• Operation Functions: PID control, 3-wire operation, Frequency limit, Second function, Anti-forward and reverse direction rotation, Commercial transition, Speed search, Power braking, Leakage reduction, Up-down operation, DC braking, Frequency jump, Slip compensation, Automatic restart, Automatic tuning, Energy buffering, Flux braking, Fire Mode

Technical Information:

• LS Electric S100 Series Standard AC Drive Catalog
• LS Electric S100 Series Standard AC Drive User Manual
• LS Electric S100 Series Standard AC Drive Extended User Manual
• LS Electric S100 Series Standard AC Drive Web Control Manual
• LS Electric S100 Series 0.5~30HP Quick Start Reference
• LS Electric S100 Series 40~100HP Quick Start Reference
• LS Electric S100 Series Standard AC Drive Troubleshooting Manual
• LS Electric Low-Voltage Drive Solution Catalog
• LS Electric Smart Factory Automation Solutions Brochure

Options Technical Information:

• LS Electric S100 Series CANopen Module User Manual
• LS Electric S100 Series EtherCAT Module User Manual
• LS Electric S100-4X Ethernet Card Installation Guide
• LS Electric S100 Series Ethernet Module User Manual
• LS Electric S100 Series Extension I/O Module User Manual
• LS Electric S100 Series Profibus-DP Module User Manual
• LS Electric S100 Series PROFInet Module User Manual
• LS Electric S100 Series Firmware Flash Procedure Guide
• LS Electric S100, H100, and iS7 User Group and Locked Parameters Setup Guide
• LS Electric S100/H100 Series Conduit Option Installation Manual
• LS Electric S100/H100 Series Flange Option Installation Manual
• LS Electric iS7/C100/S100/H100 Series Analog Input Wiring Guide
• LS Electric Dynamic Braking Resistor Flyer
• LS Electric Dynamic Braking Resistor User Manual

Application Notes:

• LS Electric 'Setting up a S100 with a Permanent Magnet Motor' Application Note
