A510-2002-C-UE
Alt: This is the Latest Version of A510-2002-C-U
$413.64

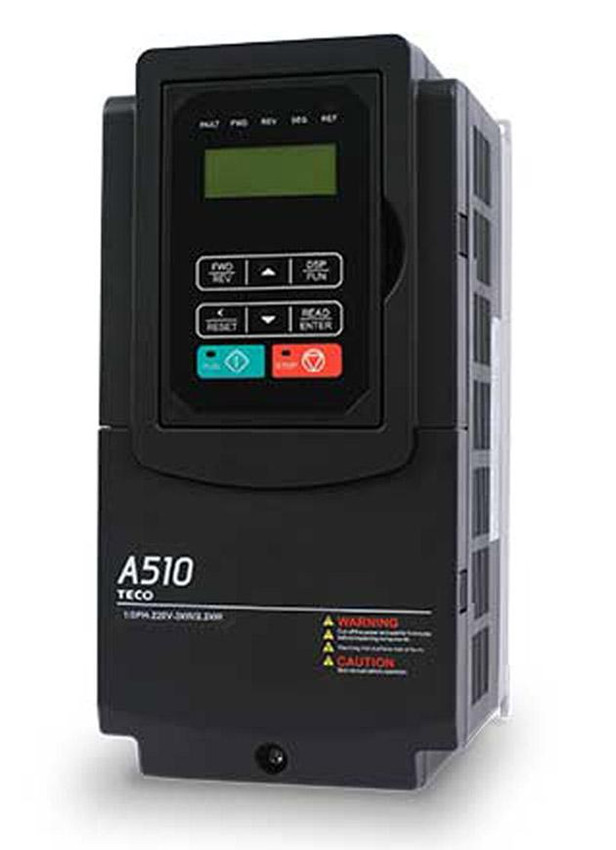

VFD, 2hp, 8A, 230VAC, Single and 3 Phase, IP20/NEMA 1 Enclosure, LCD Keypad, 9.61H x 5.12W x 5.91D"
- Weight:
- 6.00 LBS
- Minimum Purchase:
- 1 unit
Description
TECO-Westinghouse manufacturers motors, variable frequency drives and soft starters.
In 1995 TECO acquired all Westinghouse Electric Corp. shares and in 1997 the name was officially changed to TECO-Westinghouse Motor Company (TWMC). They are headquartered in Round Rock, Texas.
After acquiring Motovario, TECO also has a line of gearmotors.
Series Features Include:
- Control Modes for V/F, V/F with PG feedback, Sensorless Vector, and Closed Loop Vector
- Simple PLC Function Built-in
- Advanced Regenerative Load Handling Capability
- Dimensions H x W x D (inches): 9.61 x 5.12 x 5.91
- Conformal Coating on PC Boards
- LCD Keypad that is Remotely Mountable
- Flexible Input/ Output Configurations that Accept Normally Open or Normally Closed Signals
- 0 to 599 Hz Speed Range
- PID Control
- Diagnostics Registers for Troubleshooting
- Built-in RS485 Modbus Protocol
- Enhanced Design for Quiet Motor Operation
- Pulse Output and Pulse Follower
- Select Between Closed-Loop Speed and Torque Control in Vector Mode
- UL, cUL, and CE approved
Technical Information:
- Teco Westinghouse A510 Heavy Duty AC Drive Brochure
- Teco Westinghouse A510 Heavy Duty AC Drive Technical Specifications
- Teco Westinghouse A510 Heavy Duty AC Drive Instruction Manual
- Teco Westinghouse A510 Heavy Duty AC Drive Start-Up and Installation Manual
- Teco Westinghouse A510 Heavy Duty AC Drive Quick Start Guide
Options Technical Information:
- Teco Westinghouse 510 Series Braking Unit User Manual
- Teco Westinghouse 510 Series Copy Module Instruction Manual
- Teco Westinghouse Power Expansion Card Installation Manual
- Teco Westinghouse CANopen Communication Module Instruction Manual
- Teco Westinghouse Communication Module Addendum
- Teco Westinghouse DeviceNet Communication Module User Manual
- Teco Westinghouse PLC Addendum User Manual
- Teco Westinghouse 510 Series Profibus-DP User Manual
Application Notes:
