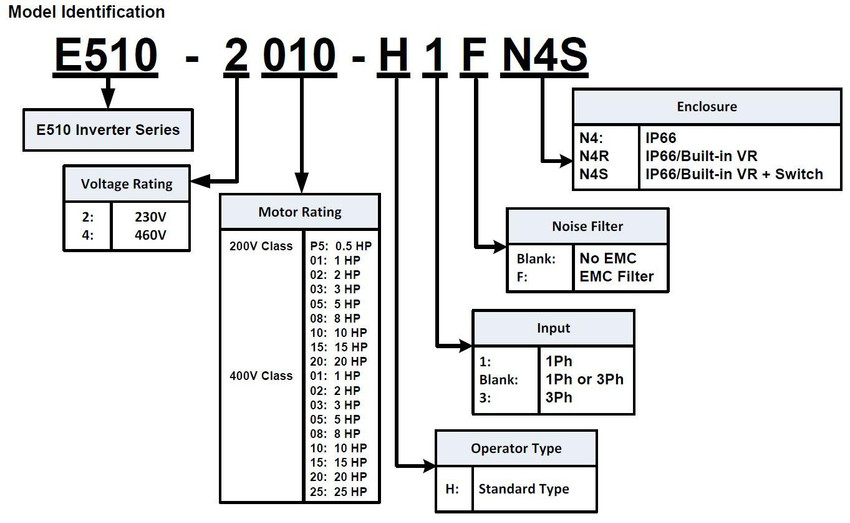

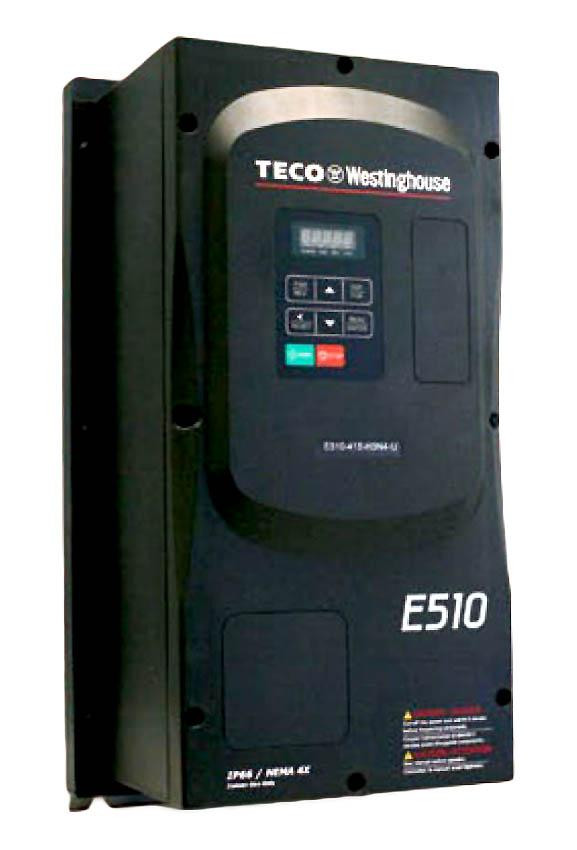

E510-425-H3N4-U

TECO-Westinghouse manufacturers motors, variable frequency drives and soft starters.



In 1995 TECO acquired all Westinghouse Electric Corp. shares and in 1997 the name was officially changed to TECO-Westinghouse Motor Company (TWMC). They are headquartered in Round Rock, Texas.



After acquiring Motovario, TECO also has a line of gearmotors.

Features Include:

• Three Phase Input Amps: 48 CT
• Output Amps: 40 CT
• HP: 25 CT
• Input Phase: 3
• Output Phase: 3
• AC Input Voltage: 380-480
• AC Output Voltage: 0-480
• AC Output Frequency: 0-599
• Enclosure: NEMA 4/4X (IP66) / Frame 3 - Indoor Use Only
• Height: 18.11
• Width: 8.77
• Depth: 9.71

Technical Information:

• TECO Westinghouse E510-425-H3N4-U Datasheet
• TECO Westinghouse E510 Series Compact Drive Flyer
• TECO Westinghouse E510 Series Technical Specification Brief
• TECO Westinghouse E510 Series Compact Drive Brochure
• TECO Westinghouse E510 NEMA 4/12 Series Compact Drive Brochure
• TECO Westinghouse E510 Series Instruction Manual
• TECO Westinghouse E510 Series Start-Up and Installation Manual
• TECO Westinghouse E510 Series Quick Start Guide

Options Technical Information:

• Teco Westinghouse E510 Series PLC Addendum
• Teco Westinghouse E510 Series Communication Addendum
• Teco Westinghouse 510 Series Braking Unit User Manual
• Teco Westinghouse 510 Series Copy Module Instruction Manual
• TECO Westinghouse Compact E510 General PID Setup Guide
