VFD185C43A-21
Alt: This Item Replaced VFD185C43A
$1,837.60

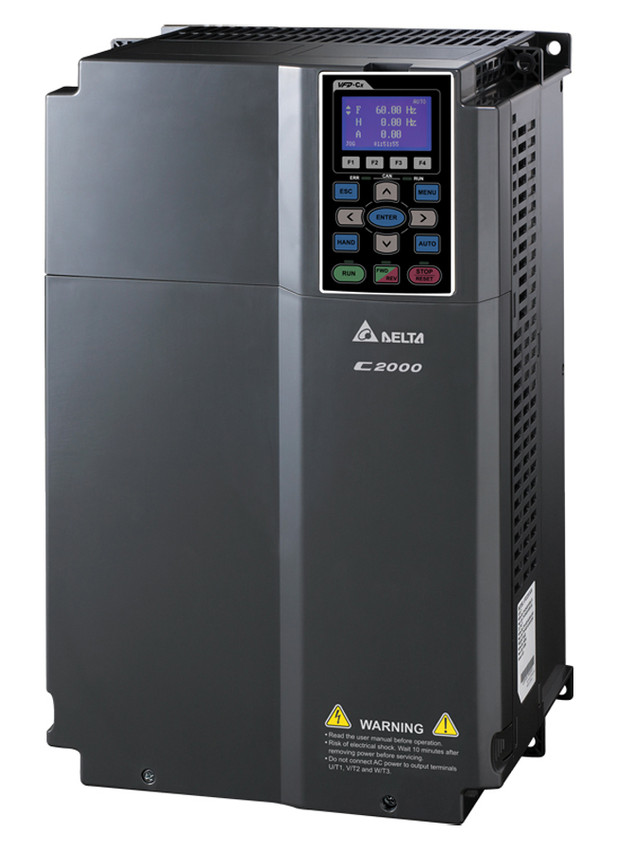

VFD, 25hp, 460V, 3 Phase, High Efficiency and Performance, Built-In PLC
- Weight:
- 26.45 LBS
- Minimum Purchase:
- 1 unit
Description
The Delta C2000 Plus Series features precise speed, torque and position control functions that are ideal for both sensor and sensorless types of synchronous and asynchronous motors.
With higher overload capacity, the power range of C2000 Plus Series 460 V models reach up to 560 kW, providing the best performance and stability for a variety of heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal & infrastructure, and other industries.
For advanced manufacturing, the C2000 Plus Series is equipped with built-in PLC functions and supports various protocols for the ultimate in system flexibility and fast data exchange
C2000 Plus Overload Capability - dual rated for heavy duty and super heavy duty
- Heavy Duty 150% 60 / 180% 3 sec.
- Super Heavy Duty 150% 60 / 200% 3 sec.
C200 Plus Power Rating:
- 460 V - 0.75 kW ~ 560 kW
- 230 V - 0.75 kW ~ 90 kW
Series Features Include:
- Speed/torque/position control mode, dual rating design (Normal duty/heavy duty)
- Outstanding 4-quadrant torque control/limit
- 2 in 1 (induction motor and synchronous motor)
- Built-in Delta PLC function, safe stop function and brake unit
- Support of various network protocols
- Synchronous position control
- Long-life design and life detection of important components
- Enhanced protections and adaptation to ambient conditions
- Complies with global safety standards, including CE, UL and cUL
- Modular design for easy maintenance and many extensions
- High-speed communication interface with built-in CANopen and MODBUS communication (optional cards for PROFIBUS-DP, DeviceNet, MODBUS TCP and EtherNet/IP)
