CFW110180T2ON1Z
Alt: 11128907, Replacement for CFW700D52P5S2DB20KIT
$9,680.00

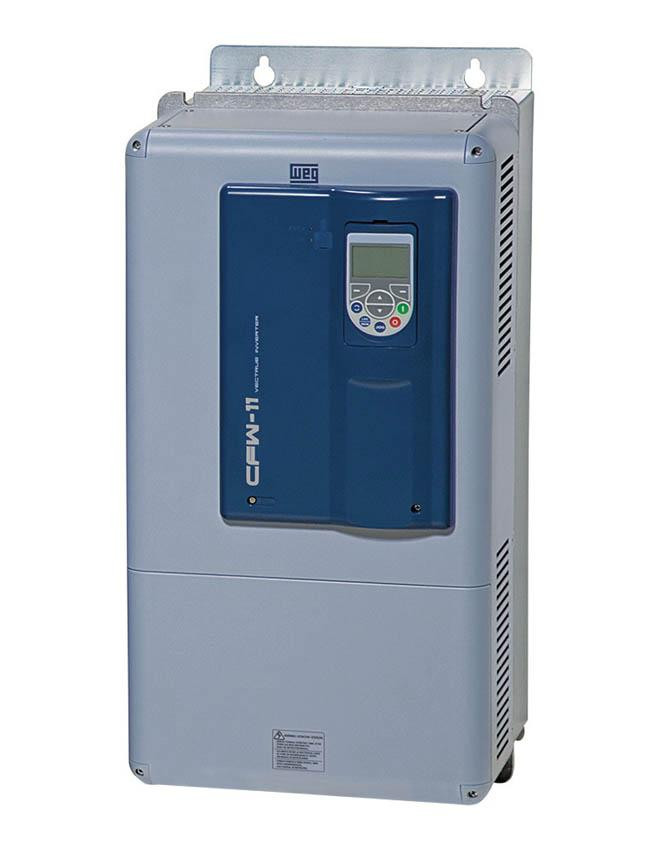

VFD, 230VAC, 3 Phase, 50hp, NEMA 1 Enclosure, 180A/142A ND/HD, RFI Filter (C3 Category), Dynamic Braking, No Safety Stop, Includes Graphic LCD Display, USB Port and Memory Card, CFW11 Series
- Weight:
- 220.80 LBS
- Minimum Purchase:
- 1 unit
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Features Include:
- Power supply: 220-230V
- Input phases: Three-phase
- Configuration: With options
- Rated current (ND): 180 A
- Rated current (HD): 142 A
- RFI filter: With filter (C3 category)
- Enclosure: NEMA1
- Dynamic braking: Standard without braking
- Safety Stop: No
- Electronic supply: Internal
- Control method: Induction motor V/f, VVW, Vector and PM motor
- Built-in inductors on the DC Link
- Space saving in the panel
- Built-in USB port
- Inverter smart cooling system
- Several communication protocols available (Modbus-RTU, Modbus-TCP, Profibus-DP-V1, DeviceNet, CANopen, EtherNet/IP, EtherCAT, PROFINET-IO and BACnet)
- Version with cabinet with degree of protection IP55 (versions with built-in switch-disconnector)
- High precision and reliability in speed and torque control
- Robust hardware
