LSLV0150S100-4EXNNS
Alt: 6031005100
$2,340.09

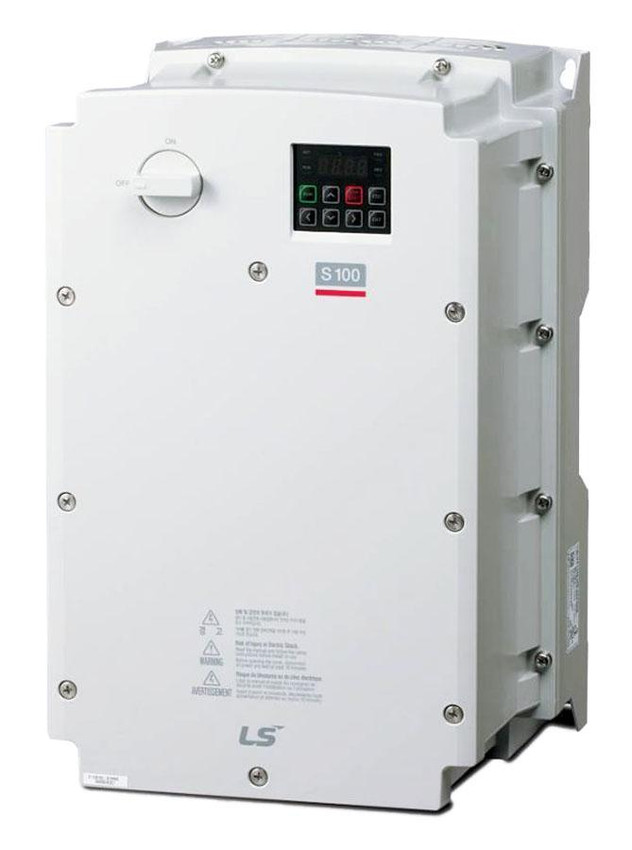

VFD, 20hp, 380-480VAC, 3 Phase, 30 Amp (30A), NEMA 4X, No EMC Filter, No DC Reactor, 10.24 x 15.73 x 9.66"
- Weight:
- 50.00 LBS
- Minimum Purchase:
- 1 unit
Description
The S100 series is a general purpose industrial drive with V/F and sensorless vector control available from 1/2 to 100 hp. This drive is dual rated for constant torque and variable torque.
Advanced features of the S100 include power loss ride through, STO (safe off relay), PID control and a number of communication options.
This series also has heatsink out the back which is also called a flange mount for external heatsink (please note weather stripping is not included). This creates a NEMA 12 dust tight enclosure with the heat on the outside which means you might not need to air condition the enclosure.
This series is also available in a NEMA 4X enclosure from 1/2 to 30 hp.
High-Performance Standard AC Drive S100! from LSIS on Vimeo.
Marshall Wolf Automation is your authorized LSIS (formerly LG Industrial Systems) distributor!
Series Features Include:
- Single phase, 230V, 0.5 to 3hp / Three phase, 230V, 0.5 to 20hp / Three phase, 480V, 0.5 to 100 hp
- Protection Degrees: IP20/UL Open (Default), UL Enclosed type 1 (Option), IP66/NEMA 4X (Option)
- Control Methods: V/f, Slip compensation, Sensorless vector
- Power loss ride through
- Dual rated for constant or variable torque
- Side by side installation
- Heatsink out the back (flange option)
- Operation Functions: PID control, 3-wire operation, Frequency limit, Second function, Anti-forward and reverse direction rotation, Commercial transition, Speed search, Power braking, Leakage reduction, Up-down operation, DC braking, Frequency jump, Slip compensation, Automatic restart, Automatic tuning, Energy buffering, Flux braking, Fire Mode
Technical Information:
- LS Electric S100 Series Standard AC Drive Catalog
- LS Electric S100 Series Standard AC Drive User Manual
- LS Electric S100 Series Standard AC Drive Extended User Manual
- LS Electric S100 Series Standard AC Drive Web Control Manual
- LS Electric S100 Series 0.5~30HP Quick Start Reference
- LS Electric S100 Series 40~100HP Quick Start Reference
- LS Electric S100 Series Standard AC Drive Troubleshooting Manual
- LS Electric Low-Voltage Drive Solution Catalog
- LS Electric Smart Factory Automation Solutions Brochure
Options Technical Information:
- LS Electric S100 Series CANopen Module User Manual

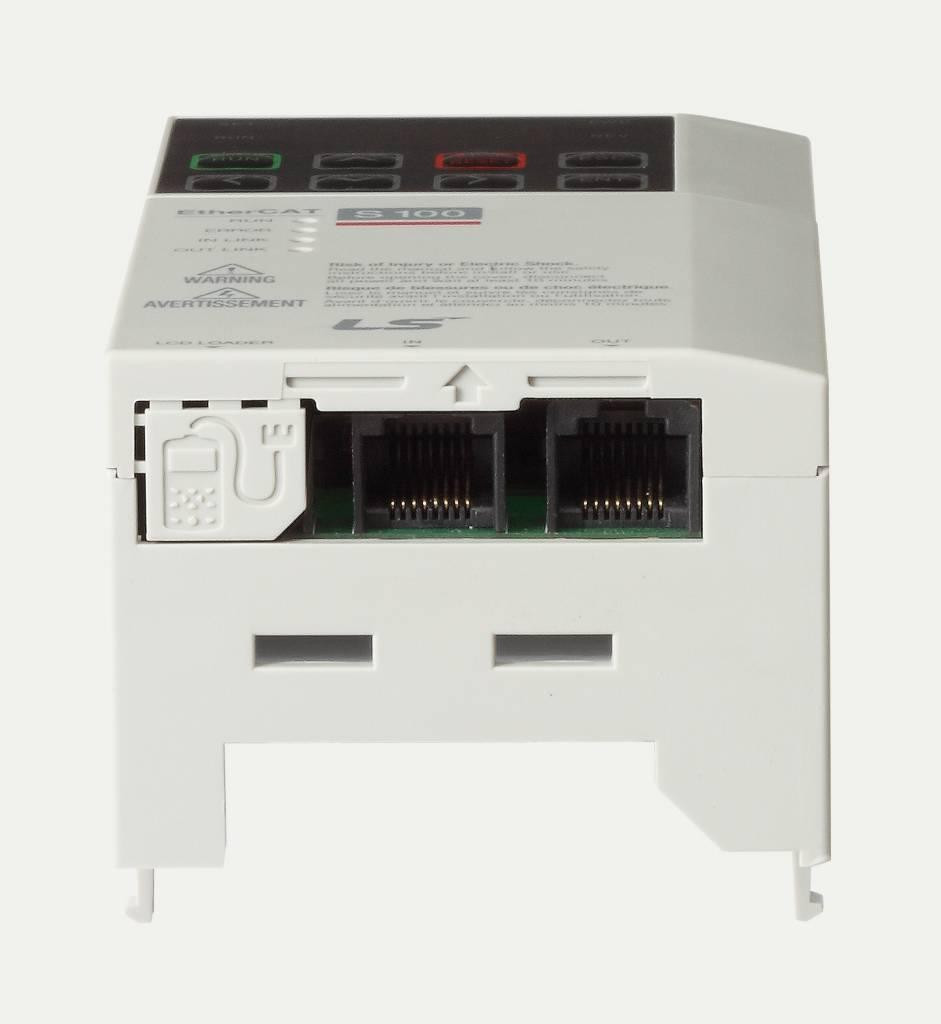

- LS Electric S100 Series EtherCAT Module User Manual
- LS Electric S100-4X Ethernet Card Installation Guide

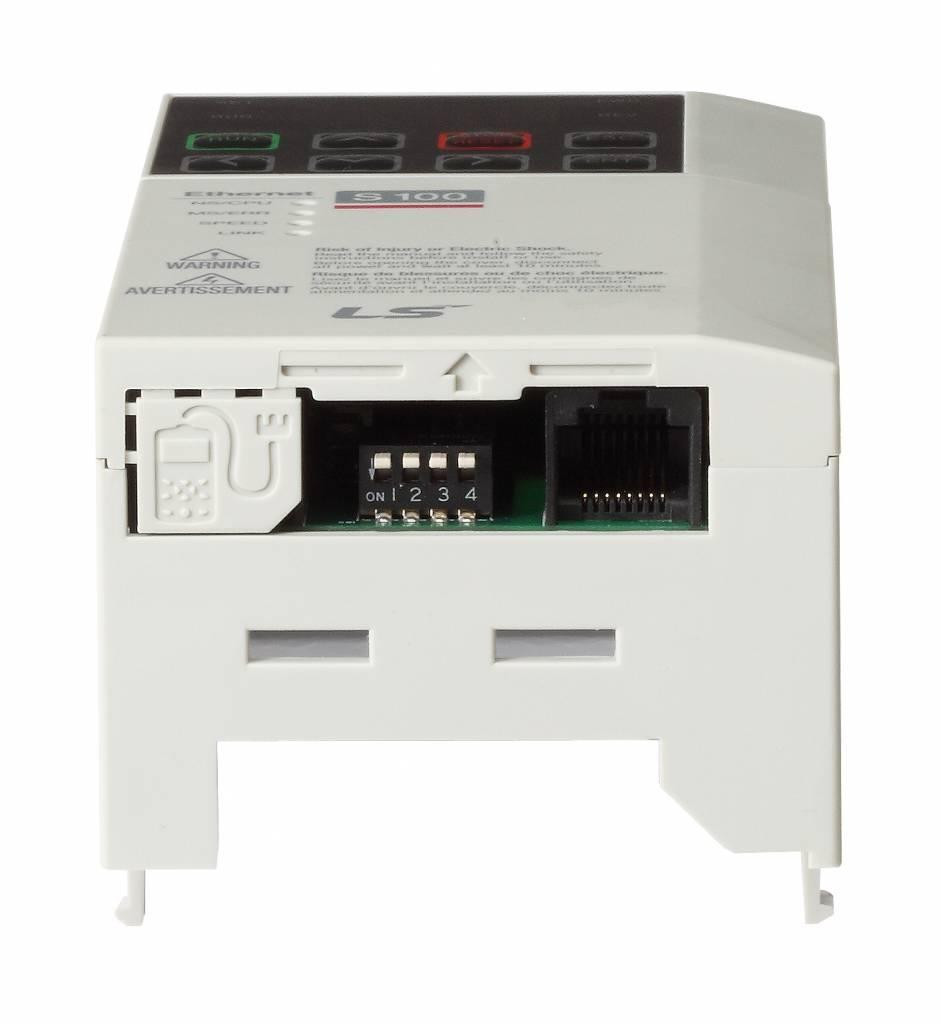

- LS Electric S100 Series Ethernet Module User Manual

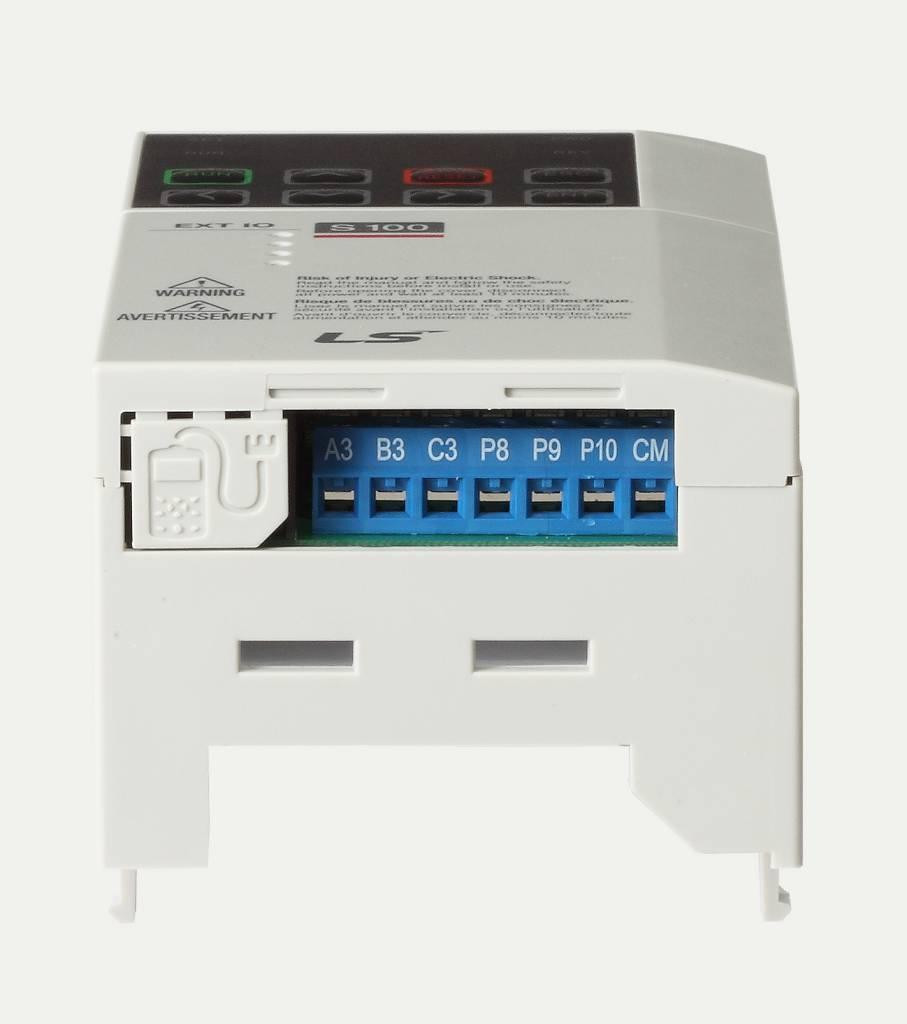

- LS Electric S100 Series Extension I/O Module User Manual
- LS Electric S100 Series Profibus-DP Module User Manual

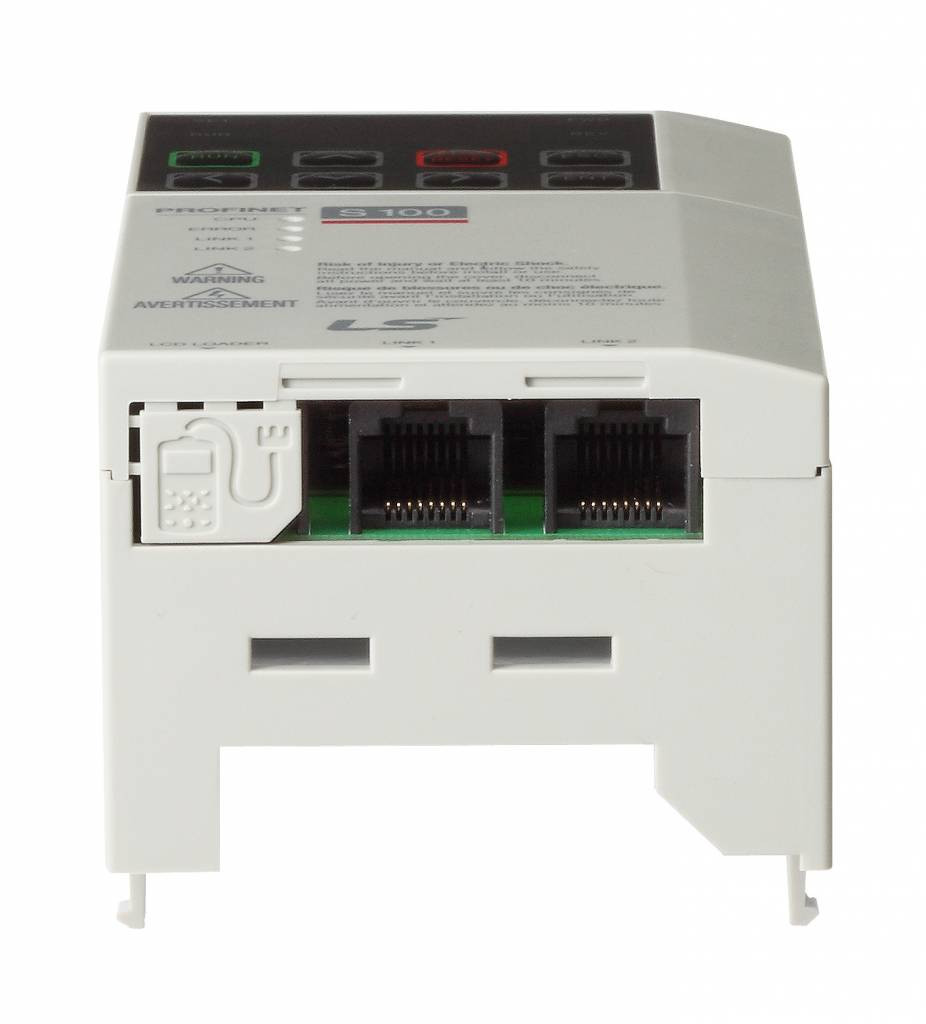

- LS Electric S100 Series PROFInet Module User Manual
- LS Electric S100 Series Firmware Flash Procedure Guide
- LS Electric S100, H100, and iS7 User Group and Locked Parameters Setup Guide
- LS Electric S100/H100 Series Conduit Option Installation Manual
- LS Electric S100/H100 Series Flange Option Installation Manual
- LS Electric iS7/C100/S100/H100 Series Analog Input Wiring Guide
- LS Electric Dynamic Braking Resistor Flyer
- LS Electric Dynamic Braking Resistor User Manual
Application Notes:
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
LS Electric
76676236322

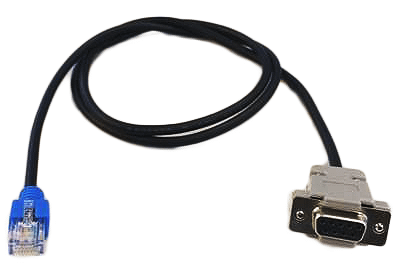

Cable, RS232 to Ethernet Port-Required for PCConnection to Keypad Port. Also Need USB-RS232.
