Dart Controls
SA-STOK-WO
5K Ohm Speed Pot Kit, 8.75" Leads, Knob, & Dial, Use When You Need an Input Device to Set Speed in VFD Applications, Ideal for Panel Mounting
$35.00
Available Now!
Product image is representative only, please verify specifications.
Available Now!
(1 in stock)
P1-00054-HFUF
Alt: SJ-P1 Series
$684.71

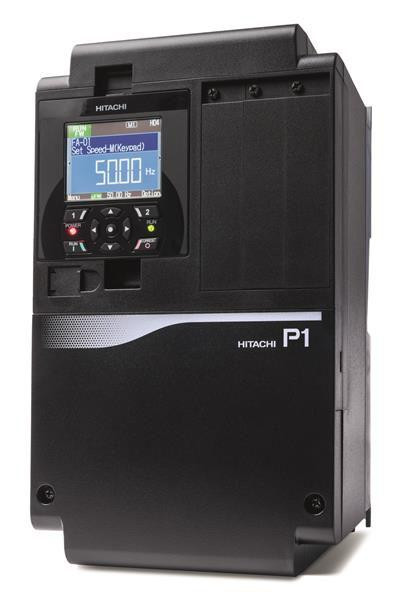

VFD, 2hp, 3 Phase, 380-480V, 3.8/4.8/5.4 A, ND/LD/VLD, High Performance Vector Drive
- Weight:
- 9.00 LBS
- Minimum Purchase:
- 1 unit
Description
The new SJ-P1 can easily handle heavy loads that require high starting torque at low speed. This series is also great for high speed rotation applications because of a 590Hz maximum operating frequency.
- VLD = very light load (110% 60 seconds, 120% 3 seconds)
- LD = light load (120% 60 seconds, 150% 3 seconds)
- ND = normal load (150% 60 seconds, 200% 3 seconds)
The built-in automatic speed adjustment reduces the risk of issues with trips during acceleration and deceleration. You can control both induction and permanent magnet motors and there are easily accessible slide-in cassettes to enhance integration and performance.
The SJ-P1 variable frequency drives are ideal for fans, pumps, hydraulic pumps, cranes, lifts, injection molding machines, milling machines and winders.
January 2018: The SJ-P1 has replaced the SJ700D series.
Series Features Include:
- Heat sink designed for external mounting if required
- RS-485 Modbus RTU standard
- Energy saving function standard
- Keypad /Terminal switching
- Three-wire operation function
- Standard LCD color operator
- PID, Logic and time delay functions built in
- Arithmetic operation and delay functions
- Error codes in text
- Analog input disconnection detect function
- CE/UL/cUL/c-Tick approvals
- 10 year MTBF life design
- Loss of signal protection
- Sink or Source input compatible
- EzCOM for drive to drive master-less communications
- PID Sleep mode function and loss of pressure function
- PMAC motor compatible
Technical Information:
- Hitachi SJ Series P1 Variable Frequency Drive Brochure
- Hitachi SJ-P1 Series Variable Frequency Drive Quick Start Guide
- Hitachi SJ-P1 Series Variable Frequency Drive Basic Guide
- Hitachi SJ-P1 Series Variable Frequency Drive User Guide
- Hitachi VFD Cross Reference Guide
Technical Notices and Application Notes:
- Hitachi Pump Control with Variable Frequency Drives Application Note
- Hitachi "Sizing 3-Phase Inverters for Single-Phase Power Applications" Application Note
- Hitachi "Using ProDrive Software on PCs Only Equipped with USB Ports and No Serial Ports" Application Note
- Hitachi "Powering Inverters from a DC Supply" Application Note
- Hitachi "Minimizing Motor Shaft Bearing Current" Application Note
