Lenze
I5MADW0000000S
Wifi Direct Interface Module, WLAN, Use with App/EasyStarter for i510 and i550 Drives
$117.76
Product image is representative only, please verify specifications.
I55AE175D1AV01000S
Alt: i550 Series
$409.60

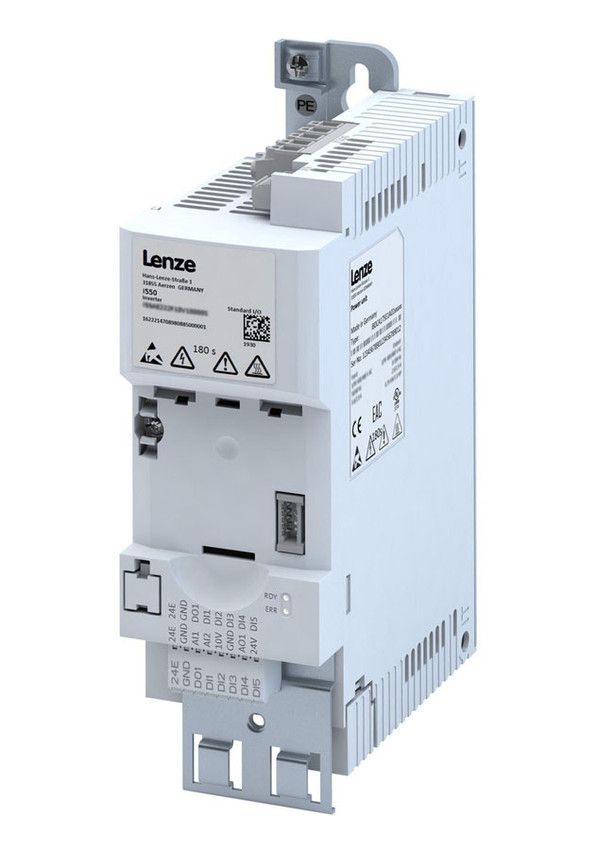

VFD, 1hp, 230/240VAC, Single and 3 Phase Input, Standard I/O, Safe Torque Off (STO), IP20, i550 Inverter
- Weight:
- 2.80 LBS
- Minimum Purchase:
- 1 unit
Description
Lenze Americas is a U.S. based global company that designs and manufacturers inverters, gear motors and mechanical components.
Lenze Americas was formerly known as AC Tech and continues to manufacturer these popular drives. Lenze Americas is headquartered in Massachusetts while Lenze SE corporate headquarters are located in Hamelin, Germany.
Series Features Include:
- Space saving design: 2.36" wide, 5.12" deep up to 3hp, fits in a 6" deep cabinet up to 15hp
- Scalable functionality
- Ideal for sophisticated speed/torque applications up to 150 hp
- Protection Rating: IP20
- Keypad interface module is sold separately (I5MADK0000000S)
- Zero-clearance mounting (bookshelfing the drive/mounting side by side) with no derating!
- Modular system allows for various product configurations
- Ideal for pumps and fans, conveyors, formers, winders, tool and hoist drives
- 3 set up methods; keypad, smart keypad-app, EASY starter
- i550 available with standard I/O (0S) or Application I/O (1S)
- 200% overload current for short term transient loads, 150% for 60 seconds
- DC-injection braking
- V/f controls (linear, quadratic, VFCeco)
- Sensorless vector control
- i550: has vector control with feedback
- i550: Dynamic braking through brake resistance
- i550: STO - safe torque off
- i550: CANopen, EtherCAT, EtherNet, I/P, Modbus, PROFIBUS, PROFINET
- i550: Internal 24VDC, 100mA supply to power your devices
- i550 supports both PNP/Active High and NPN/Active Low logic
Need More Information?
- Lenze i500 Frequency Inverter Flyer
- Lenze i500 Frequency Inverter Brochure
- Lenze i550 0.25 - 132kW Frequency Inverter Operating Instructions
- Lenze i550 0.25 - 75kW Frequency Inverter Project Planning Guide
- Lenze i550 0.25 - 132kW Frequency Inverter Project Planning Guide
- Lenze i500 Frequency Inverter External Keypad Mounting Instructions
- Lenze i500 Frequency Inverter DIN Rail Mounting Kit Instructions
- Lenze i500 Frequency Inverter Blanking Cover Mounting Instructions
- Lenze i500 Reference Card Inverter Operating Instructions
- Lenze i500 RFI Filters Operating Instructions
- Lenze AC Tech SCM/SCF to i500/SMV inverters Product Migration Guide
Accessories
Available Now!
Available Now!
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$17.39
Lenze
I5CA5C02000VA1000S
Control Unit, CANopen, Std I/O, EPM Memory Module, Use with i550 Power Unit, 230/240V or 400/480V
$110.37
Lenze
I5MADK0000000S
Keypad for i510 and i550 Drives, You Can Use Optional Keypad, Lenze Smart Keypad app (download) or the EASY Starter for Diagnostics and Parameter Selection/Adjustments.
$56.79
$40.57
Lenze
I5MASAV000000S
Safety Function STO (Safety Torque Off), For i550 Series, Can Be Retrofitted to i550 Drives; i550-Cxxx/120-1, i550-Cxxx/230-1, i550-Cxxx/230-2, i550-Cxxx/230-3, i550-Cxxx/400-3
$64.92
$130.42
Lenze
EZAEDE1001
Memory Module Copier, Please Review Product Information Carefully for your Specific Application
$240.02
Lenze
EZAMBHXM014/M
Motor Shield Plate Kit, (.33hp, - 3hp) 5 Pack, Compatible with i510 and i550 Drives
$22.07
Lenze
I5MADR0000000S
External Keypad Mount for i510 and i550 Drives, No Cable, Optional Keypad (Part Number I5MADK0000000S) Must be Ordered Separately
$103.46
Lenze
I5MADR0000001S
External Keypad Mount for i510 and i550 Drives, 3m Cable, Optional Keypad (Part Number I5MADK0000000S) Must be Ordered Separately
$146.06
