ODP-2-34150-3HF4B-MN
Alt: Optidrive P2 Series
$1,898.40

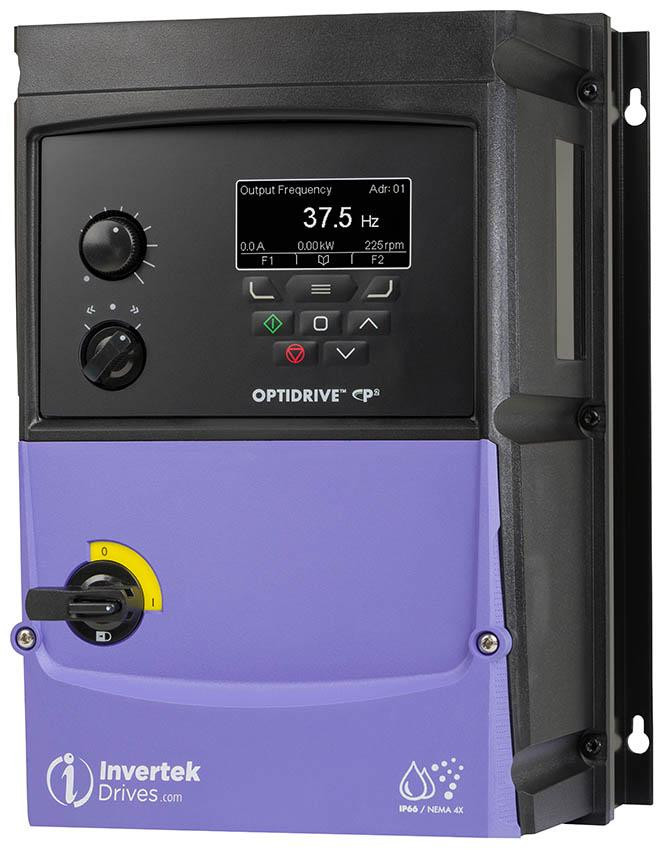

VFD, 15hp, 24 Amp, 11kW, 380-480V 3 Phase Input/Output, with TFT Keypad Display, EMC Filter and Internal Brake Transistor, IP66 Outdoor Switched, Frame Size 3: 12.2 x 8.3 x 9.3" (HWD), OptiDrive™ P2, Performance
- Weight:
- 22.82 LBS
- Minimum Purchase:
- 1 unit
Description
Invertek's Optidrive P2 is a high performance variable frequency drive with an industrial heavy duty rating on every model.
All P2 series 3 phase input rated drives can be derated by 50% for use in single phase power applications. Please see more information under 'Documents'.
If advanced pump features are required, the P2 series firmware can be changed to 'eco' firmware - this must be done prior to shipping, please put a note on your order that this is needed.
Invertek's Optidrive P2 is a high performance variable frequency drive with an industrial heavy duty rating on every model.
This series is available from 1 to 400 horsepower and from 200 to 600V, single or 3 phase input.
Additional features:
- 150% overload for 60 seconds
- 200% overload for 4 seconds
- Simple PLC functionality
- Built-in EMC filter
- Available in IP20, IP66 (with or without disconnect) or IP55
- Low ambient operation (-10°C)
- Modbus RTU and CANopen are standard
- Dedicated hoist mode
- Multiple control modes
This series is ideal for cranes, hoists, lifts, extruders, conveyers, pumps and mixers.
Features Include:
- Supply Voltage Input: 380-480 V
- Input Phases: 3
- Input Supply Current Continuous: 28.9 A
- Input Supply Fuse or MCB (Type B): 40 A
- Motor Output Rating: 11 kW (15 HP)
- Output Voltage: 0 – Supply Voltage
- Output Current: 24 A
- EMC Filter: Internal EMC
- Brake Transistor: Internal
- Enclosure: IP66 Switched Outdoor
- Display: TFT Display
- PCB Coating: Standard

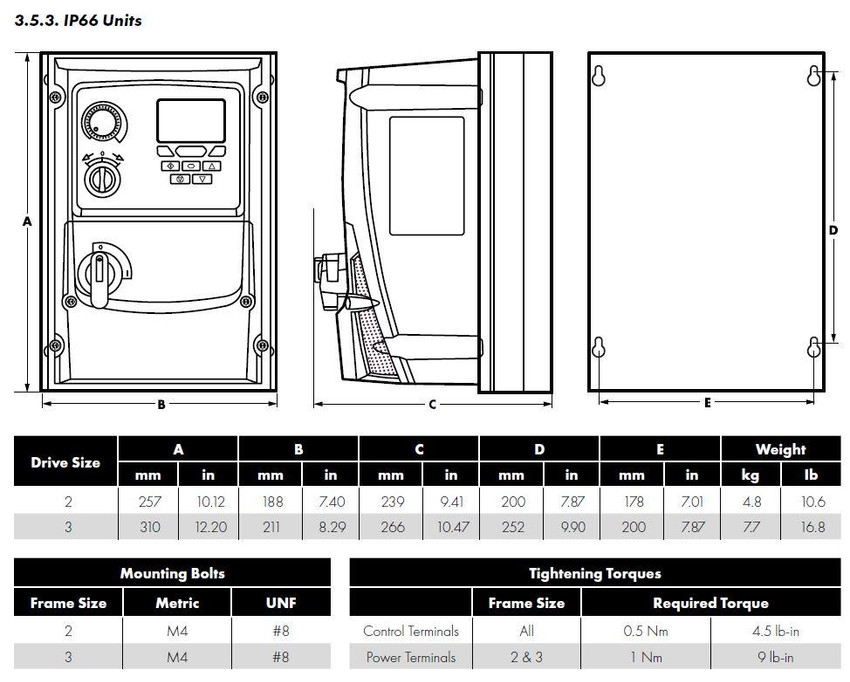

- Frame Size: 3
- Height: 310 mm (12.2 in)
- Width: 211 mm (8.31 in)
- Depth: 235 mm (9.25 in)
Technical Information:
- Invertek ODP-2-34150-3HF4B-MN VFD Technical Data
- Invertek Optidrive P2 High Performance Drive Brochure
- Invertek Stock Drives Catalog
- Invertek Optidrive P2 High Performance Drive User Guide
- Invertek Marine Equipment Control Catalog
Options and Communication Cards:
- Invertek Optiport 2 Remote Keypad Option Module User Guide
- Invertek Optidrive OLED Remote Keypad Option Module User Guide
- Invertek OPTISTICK User Guide
- Invertek RJ45 Port Expansion Module User Guide
- Invertek USB-485 Converter User Guide
- Invertek External EMC Filters User Guide
- Invertek Optidrive HVAC Cascade Expansion Module User Guide
- Invertek DeviceNet Interface User Guide
- Invertek Profibus DP Interface User Guide
- Invertek EtherNet IP Interface User Guide
- Invertek EtherCAT Interface User Guide
- Invertek PROFINET IO Interface User Guide
- Invertek Optidrive P2 / HVAC Extended I/O Module User Guide
- Invertek Optidrive P2 Encoder Interface Modules User Guide
- Invertek Modbus TCP Interface User Guide
- Invertek Input Line Chokes for Optidrives Installation Guide / IP20 & IP66
- Invertek Output Filters (Chokes) for Optidrives Installation Guide / IP20 & IP66
- Invertek Optidrive P2 Isolator Option Installation Guide
- Invertek Input Optidrive P2 Encoder Interface Modules User Guide
- Invertek Optidrive HVAC BACnet User Guide
- Invertek IP66 Sun Shade Installation Guide
