ESV113N02TXB

Our popular Lenze AC Tech SMVector series is designed for motor applications that need dynamic speed and torque control. They are ideal for conveyors, food production lines, packaging equipment plus fan and pump systems.

The NEMA 1 version is available in:

• Single phase, 120/240V, .33 to 1.5hp
• Single/3 phase, 200/240V, .33 to 3hp
• 3 phase, 200/240V, 1.5 to 20hp
• 3 phase, 400/480V, .5 to 60hp
• 3 phase, 480/600V, 1 to 60hp

Options include:

• Remote Keypad allows operation from up to 30 m from drive, cubicle mountable, IP65 rating
• Extended I/O modules can extend the standard drive I/O by up to 1 extra programmable form C relay output and 2 extra digital inputs
• External Dynamic Braking Unit for drives rated up to 22 kW (30 kW include brake transistor as standard)
• External EMC filter to meet EN61800-3 (First and second environment, category C1 and C2)
• EEPM1RA - EPM programmer enables you to easily duplicate , read, edit and archive the memory and configuration of the SMVector drives

This series is also available in NEMA 4X indoor and NEMA 4X outdoor models.

Whether your application automates a single machine or an entire facility, the SMVector is fully equipped to make the process a breeze.

Looking for some helpful blogs? We've got loads! Check out our whole section on AC Drives or these popular blogs:

• Basic VFD Programming Tips
• Our easy to ready SCM/SCF Cross Reference
• What do IP Ratings actually mean?

Learn All About AC Tech Lenze's Switch from the SCM to SMV Series here!

Series Features Include:

High-performance SMVector IP31 frequency inverters for controlled motion.

Performance data:

• Line voltage: 1 AC 120/240 V: 0.34 to 1.5 hp (0.25 to 1.1 kW) / 1.7 to 6 A
• Line voltage: 1/3 AC 200/240 V: 0.34 to 3.0 hp (0.25 to 2.2 kW) / 1.7 to 9.6 A
• Line voltage: 3 AC 200/240 V: 5.4 to 20 hp (4 to 15 kW) / 16.5 to 54 A
• Line voltage: 3 AC 400/480 V: 0.50 to 60 hp (0.37 to 45 kW) / 1.1 to 88 A
• Line voltage: 3 AC 600 V: 1.0 to 60 hp (0.75 to 45 kW) / 1.7 to 62 A

Particularly suitable for: turntables in the field of intralogistics, production lines in the food industry and industrial manufacturing operations.

Advantages:

• Connections: start/stop, analog input, freely programmable digital inputs and outputs (4/1)
• Communication: ModBus/RS-485, CANopen, EtherNet/IP, DeviceNet, PROFIBUS
• Enclosure NEMA 1 IP31

Need More Information?

• AC Tech Lenze SMVector Flyer
• AC Tech Lenze SMVector Frame Size & Dimension Brochure
• AC Tech Lenze SMVector Operating Instructions
• AC Tech Lenze SMVector EZAEDE1001 Memory Module Copier Instructions
• AC Tech Lenze SMVector EZAEDE1000 Memory Module Copier Instructions
• AC Tech Lenze SMVector CANopen Communication Module Reference Guide
• AC Tech Lenze SMVector DeviceNet Communication Module Reference Guide
• AC Tech Lenze SMVector RS-485 LECOM Communication Module Reference Guide
• AC Tech Lenze SMVector ESVZAR0 RS-485 Modbus Communication Module Reference Guide
• AC Tech Lenze SMVector ESVZAR0 RS-485 Modbus Communication Module Reference Guide
• AC Tech Lenze SMVector Additional I/O Module Installation and Operation Manual

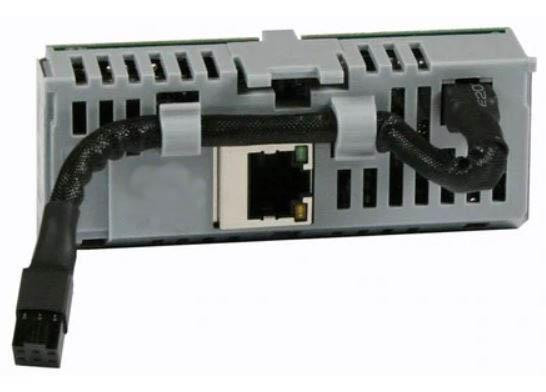

• AC Tech Lenze SMVector Communication Modules Mounting Instructions
• AC Tech Lenze SMVector NEMA 1 Flyer with Amp Ratings
• AC Tech Lenze SMVector Dynamic Breaking EZXDB/EZXDC Mounting Instructions
• AC Tech Lenze SMVector Remote Keypad Mounting Instructions
• AC Tech Lenze SMVector Remote Keypad H0 Mounting Instructions
• AC Tech Lenze SMVector Remote Keypad H1 Mounting Instructions
• AC Tech Lenze SMV Series Wiring Lab
• AC Tech Lenze 'Using the SMVector in a Package Filler' Application Notes
• Lenze AC Tech SCM/SCF to i500/SMV inverters Product Migration Guide
• AC Tech Lenze Defective Terminal Blocks on SMV 1-5hp Recall Notice
