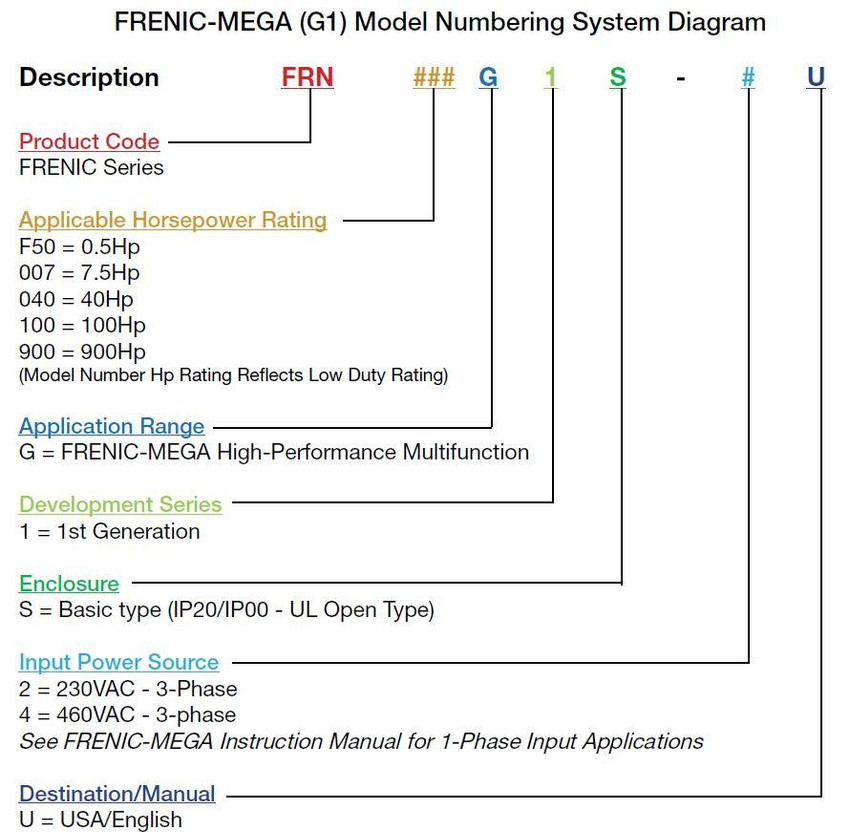

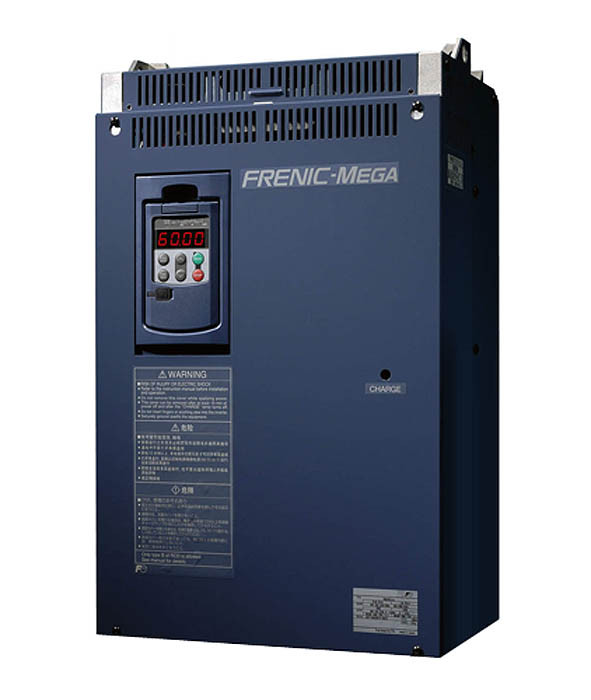

FRN150G1S-2U
Alt: FRENIC-Mega Series
$11,124.80
VFD, 150hp, 230V, 3 Phase, For Constant and Variable Torque Apps
- Weight:
- 313.20 LBS
- Minimum Purchase:
- 1 unit
Description
FRENIC-Mega is a high performance, multifunctional drive with the following control methods; PG vector control, sensorless vector control, dynamic torque vector control, PG closed-loop control and V/f control.
RS-485 communication is standard along with a RJ-45 connection port.
Two types of keypads are available:
- TP-G1W-J1; Multifunction keypad
- TP-E1U (Optional): Keypad with USB port
Specifications
Horsepower
150 hp
Housing/Enclosure
IP00 (NEMA 1 Kit Optional)
Input Phase
Single/3 Phase
Input Voltage
200-240V, 3 Phase
Outdoor Rated
No
Output
3 Phase Output
Series
FRENIC-Mega
Options
Enclosed, Heatsink thru Back
STO (Safe Torque Off)
No
Torque Load
Constant/Variable (CT/VT)
Drives - Type of Drive
High Performance
Warranty
3 Years
Alternate Part Number
FRENIC-Mega Series

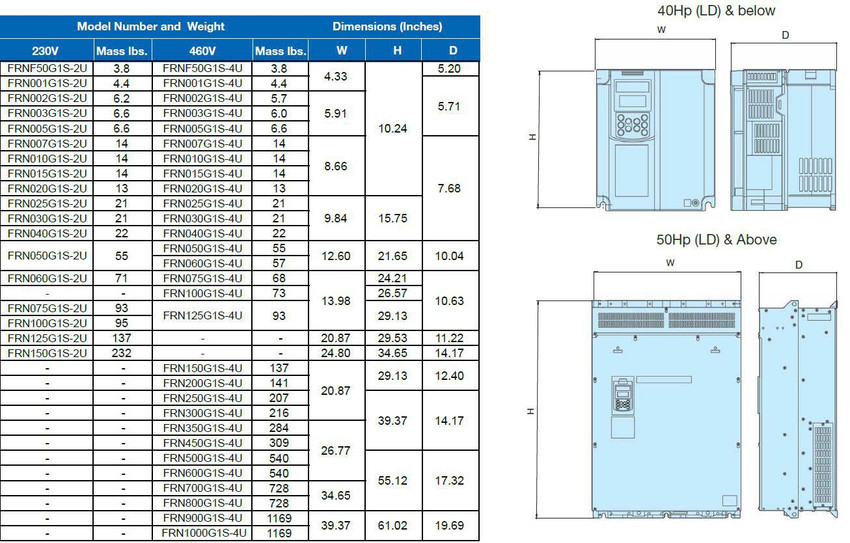

Weight
313.2
Series Features Include:
Control Inputs/Outputs:
- Qty 9 digital inputs
- Qty 2 safety inputs (dedicated)
- Qty 3 analog inputs
- Qty 6 digital outputs; Qty 2 relays (1 Form C & 1 Form A) & Qty 4 transistor, 56 selectable functions
- Qty 2 analog outputs; selectable type; 0 to 10VDC or 4 to 20mA configurable to provide output signal proportional to 15 different functions
- Qty 2 RS-485 connections
- RJ45 keypad port & control terminal block connections
- 24VDC output terminal rated 100mA
- High Performance LED & LCD keypad with NEMA/UL type approved
Motor Control:
- LD (Low Duty): 120% for 1 Min
- MD (Medium Duty): 150% for 1 Min
- HD (High Duty): 200% for 3s / 150% for 1 Min
- High performance closed loop vector control with option card
- High performance sensor-less vector control
- Built-in braking transistor up to 40HP(LD)/30HP(HD)
- Built in braking resistor up to 15HP(LD)/10HP(HD)
- Single phase input for all models
Safety and Standard:
- Safety input compliant with EN ISO13849-1, EN954-1, Category 3
- UL508C, CE
- UL Premium Rating
- NEMA/UL Type 1 by Option Kit
Downloads
- Fuji FRENIC-MEGA High Performance Multifunctional Inverter Datasheet
- Fuji FRENIC-MEGA High Performance Multifunctional Inverter Brochure
- Fuji FRENIC-MEGA High Performance Multifunctional Inverter Catalog
- Fuji FRENIC-MEGA High Performance Multifunctional Inverter User Manual
- Fuji FRENIC-MEGA High Performance Multifunctional Inverter Instruction Manual
- Fuji FRENIC-MEGA High Performance Multifunctional Inverter Instruction Manual Supplement
- Fuji FRENIC-MEGA Quick Start Guide
- Fuji FRENIC-MEGA General Specifications
- Fuji FRENIC-MEGA Engineering Specifications
- Fuji FRENIC-MEGA Watts Loss Data
- Fuji FRENIC-MEGA Drive Efficiency Data
- Fuji FRENIC-MEGA Demo Kit Brochure
