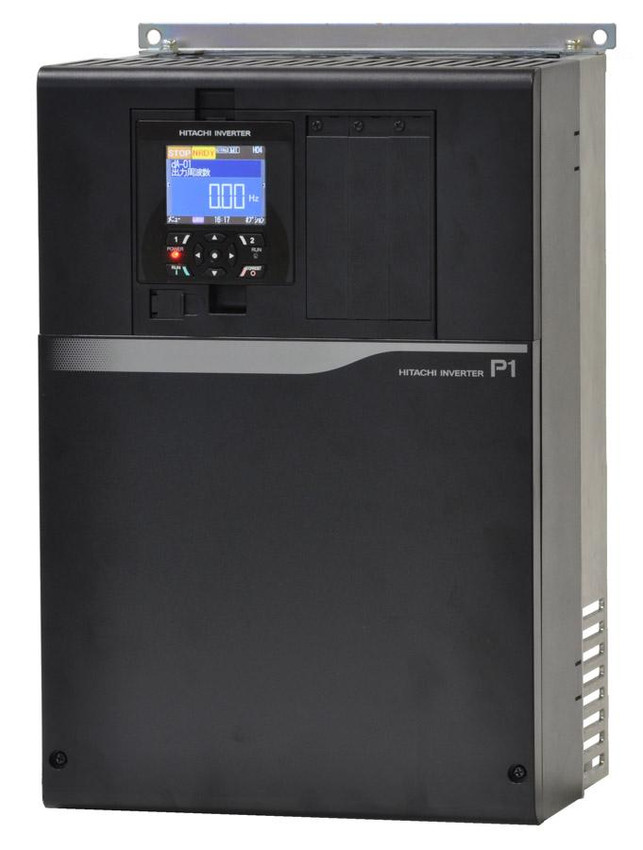

P1-02520-HFUF

The new SJ-P1 can easily handle heavy loads that require high starting torque at low speed.  This series is also great for high speed rotation applications because of a 590Hz maximum operating frequency.

• VLD = very light load (110% 60 seconds, 120% 3 seconds)
• LD = light load (120% 60 seconds, 150% 3 seconds)
• ND = normal load (150% 60 seconds, 200% 3 seconds)

The built-in automatic speed adjustment reduces the risk of issues with trips during acceleration and deceleration. You can control both induction and permanent magnet motors and there are easily accessible slide-in cassettes to enhance integration and performance.

The SJ-P1 variable frequency drives are ideal for fans, pumps, hydraulic pumps, cranes, lifts, injection molding machines, milling machines and winders.

January 2018: The SJ-P1 has replaced the SJ700D series.

Series Features Include:

• Heat sink designed for external mounting if required
• RS-485 Modbus RTU standard
• Energy saving function standard
• Keypad /Terminal switching
• Three-wire operation function
• Standard LCD color operator
• PID, Logic and time delay functions built in
• Arithmetic operation and delay functions
• Error codes in text
• Analog input disconnection detect function
• CE/UL/cUL/c-Tick approvals
• 10 year MTBF life design
• Loss of signal protection
• Sink or Source input compatible
• EzCOM for drive to drive master-less communications
• PID Sleep mode function and loss of pressure function
• PMAC motor compatible
