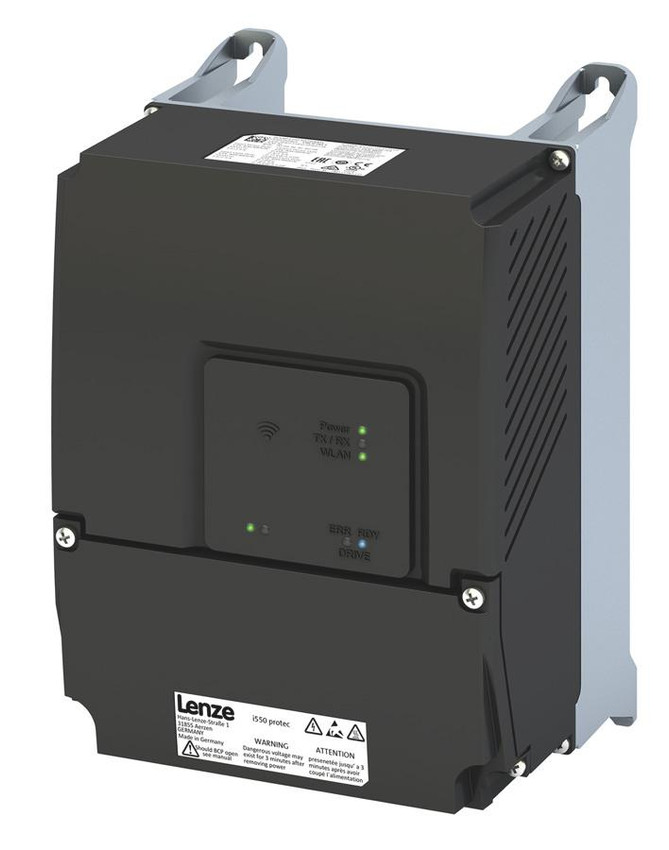

Do you have limited enclosure space or a machine with a modular design? I550 Protec offers a slim design, scalable functionality and is very easy to use.
i550 Protec series features:
Currently available from 0.5hp to 30hp, higher ratings coming soon
NEMA 1 (IP31 - indoor) or NEMA 4X (IP66, indoor/outdoor) ratings
Optional STO (Safe Torque Off)
Sensorless vector control for synchronous motors
Versions with or without repair switch, keypad, USB or WLAN diagnostic module for easy plug & play operation
EPM module available
Three available setup methods:
Keypad –recommended option for setting a few key parameters
SMART Keypad App – use for conveyor belts and other simple applications
EASY Starter engineering tool – If functions such as the motor potentiometer or sequence control for a positioning application need to be set, this is the best option
Ideal for conveyors, packaging, fan drives and pump systems
This series is the recommended replacement for the discontinued Lenze AC Tech MC Series
Current i500 series drives:
I510 – basic IP20 drive for simple applications, 0.25 to 15kW
I550 – standard IP20 drive, universally applicable, 0.25 to 132kW
I550 Protec – standard IP66/NEMA 4X drive, universally applicable, 0.37 to 22kW (expansion up to 75kW planned)
Series Features Include:
The protection level of IP31 (NEMA 1) or IP66 (NEMA 4X) with indoor and outdoor approval, this means hose proof and dust-tight, also allows the use in rough environments
First decentral drive in the market with IO-Link Device Interface
Intuitive user interface for fast setup and easy navigation by parameter structure
EPM module for simple series commissioning and device replacement
USB Micro diagnostic interface on board
Versions with or without repair switch, with keypad, USB or WLAN diagnostic module for easy plug & play operation
Motor Control Options: Servo control (SC-ASM) with feedback, Sensorless vector control for synchronous motors (up to 22 kW), Sensorless vector control (SLVC), Energy saving function (VFC-Eco), V/f characteristic control linear/square-law (VFC plus), V/f characteristic control with feedback
Functions: DC-injection braking, Brake management for brake control with low rate of wear, Dynamic braking through brake resistor, S-ramps for smooth acceleration and deceleration, Flying restart circuit, PID controller, DC connection
Keypad for i510 and i550 Drives, You Can Use Optional Keypad, Lenze Smart Keypad app (download) or the EASY Starter for Diagnostics and Parameter Selection/Adjustments.
Safety Function STO (Safety Torque Off), For i550 Series, Can Be Retrofitted to i550 Drives; i550-Cxxx/120-1, i550-Cxxx/230-1, i550-Cxxx/230-2, i550-Cxxx/230-3, i550-Cxxx/400-3
