I51AE211F10V11000S
Alt: i510 Series
$361.29

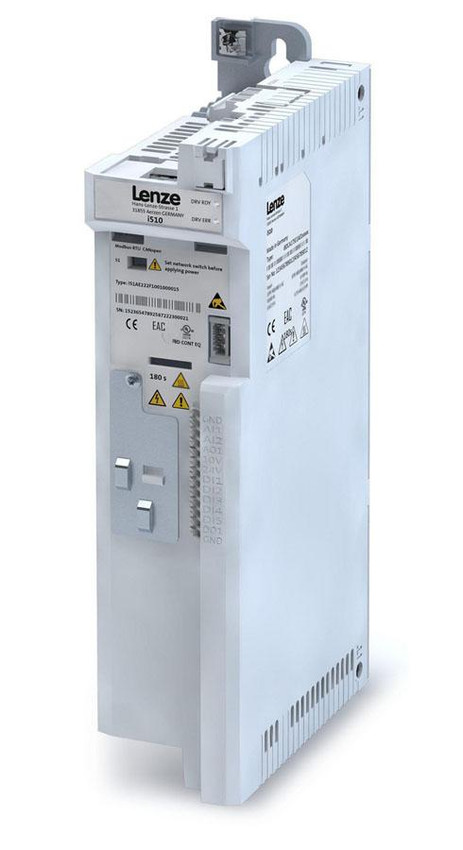

VFD, 1.5hp, 480VAC, Single and 3 Phase Input, IP20, i510 Inverter
- Weight:
- 2.89 LBS
- Minimum Purchase:
- 1 unit
Description
Lenze Americas is a U.S. based global company that designs and manufacturers inverters, gear motors and mechanical components.
Lenze Americas was formerly known as AC Tech and continues to manufacturer these popular drives. Lenze Americas is headquartered in Massachusetts while Lenze SE corporate headquarters are located in Hamelin, Germany.
Series Features Include:
- Slimline design from 2.36 x 5.12 in (60 mm x 130 mm): fits into every control cabinet
- Scalable functionality
- Ideal for simple speed/torque applications up to 3hp (see i550 for higher hp)
- Keypad module sold separately (I5MADK0000000S)
- Protection Rating: IP20
- Zero-clearance mounting (bookshelfing the drive/mounting side by side) with no derating!
- Modular system allows for various product configurations
- Ideal for pumps and fans, conveyors, formers, winders, tool and hoist drives
- 3 set up methods; keypad, smart keypad-app, EASY starter
- i510 available with no fieldbus (0S) or with integrated CANopen/Modbus-RTU (1S)
- 200% overload current for short term transient loads, 150% for 60 seconds
- DC-injection braking
- V/f controls (linear, quadratic, VFCeco)
- Sensorless vector control
- Digital inputs/outputs (5/1), analog inputs/outputs (2/1)
- This drive does not do positioning
- i510 supports PNP/Active High logic only (i550 supports both PNP/Active High and NPN/Active Low logic)
