LSLV0002M100-SEONNA
Alt: 66440001
$210.26
VFD, 0.25hp, 115VAC, Single Phase
- Weight:
- 2.20 LBS
- Minimum Purchase:
- 1 unit
Description

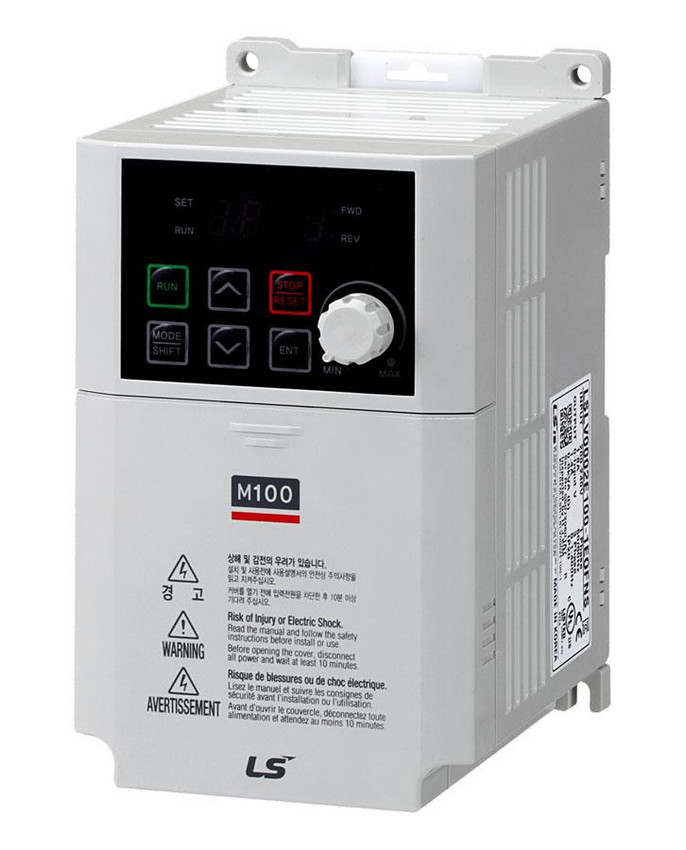

Our LS Electric M100 series is ideal for small motor applications! These single phase input/3 phase output drives are available in 200-240V or 115V.
- DIN rail mount
- Meets UL 60800-5-1
- Built-in C2 EMC filter
- Side by side installation
- Easy connection with RJ45 port
- IP20
- 2 year warranty
- Single phase input/3 phase output
Marshall Wolf Automation is an authorized stocking distributor for LS Electric.
Features Include:
- Rated Current Input: 1.8 A
- Input Frequency: 50~60Hz(±5%)
- Rated Input Voltage: 1 phase 200-240Vac(-15% to +10%)
- Rated Output Capacity: 0.6 kVA
- Rated Output Current: 1.4 A
- Rated Output Frequency: 0~400Hz
- Rated Output Voltage: 3 phase 200-240V
- Built-in C2 EMC Filter
- New UL 61800-5-1 Design - Enhanced isolation circuit
- Built-in DB unite: ≥ 1.5kW
- Modbus in advanced I/O type
- DIN-rail mountable
- Side-by-side installation
- Easy connection with RJ45 port
- Modbus/Smart copier/Remote keypad/DriveView 9
Technical Information:
